Rear Axle Disassemble

Special Tools

• J 24433  Pinion Cone & Side Bearing Installer
• J 45008  Side Bearing Race Remover

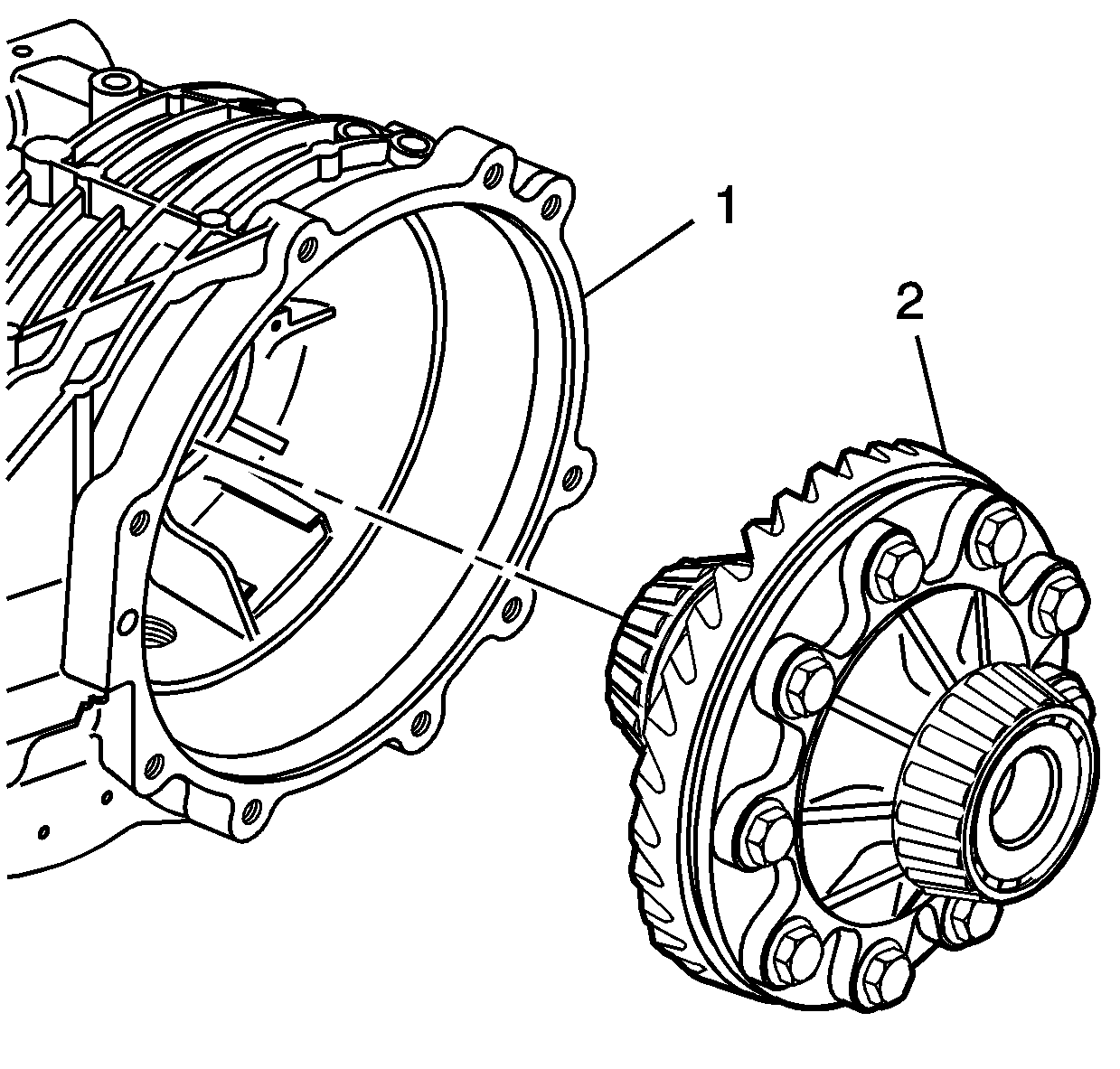

Fig 1: View Of Differential Assembly
Courtesy of GENERAL MOTORS CORP.
1. Remove the differential assembly (2) from the carrier (1).

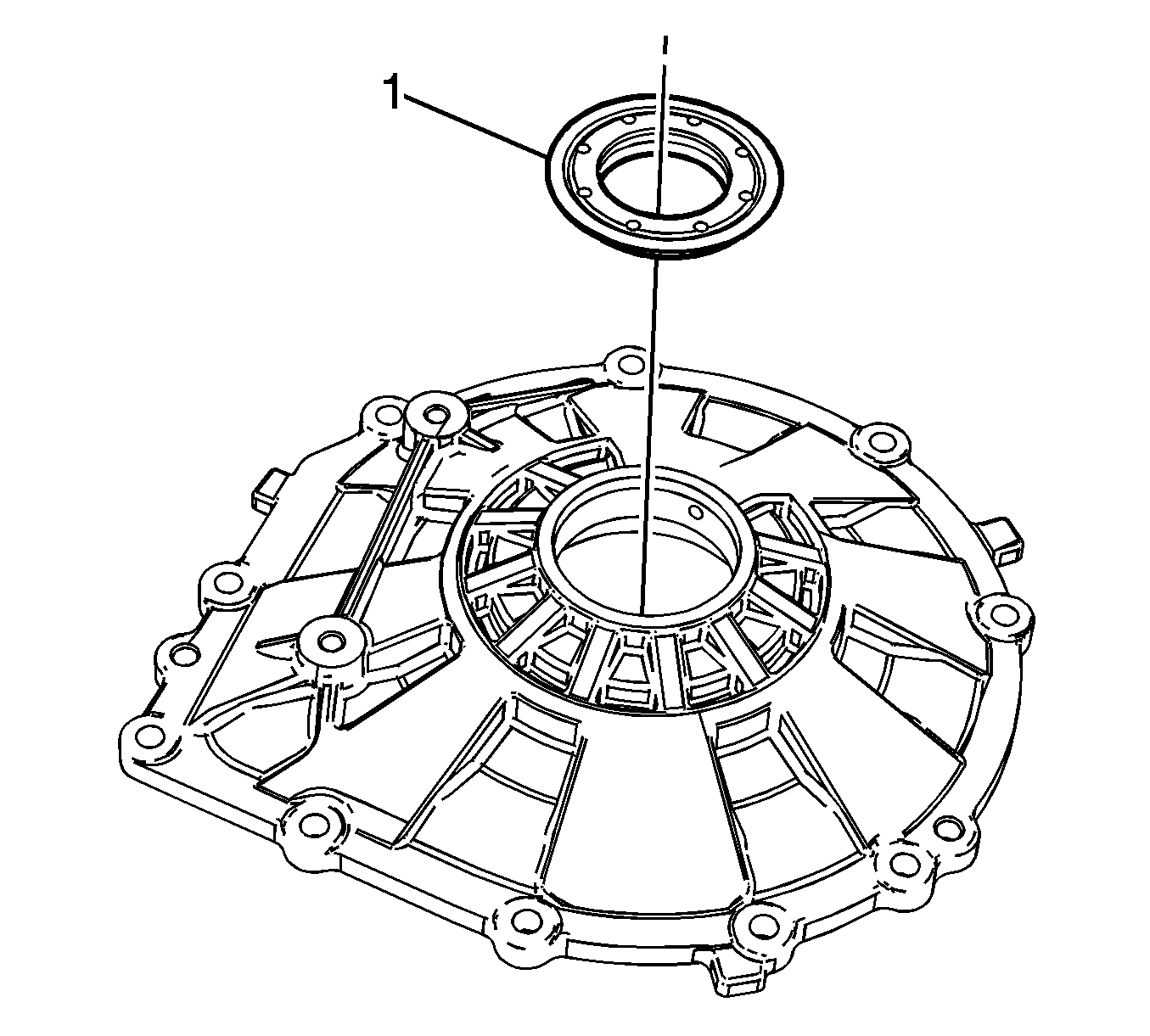

Fig 2: View of Axle Seal
Courtesy of GENERAL MOTORS CORP.
2. Using the J 24433  and a hammer, remove the axle seal (1) from the side cover (2).

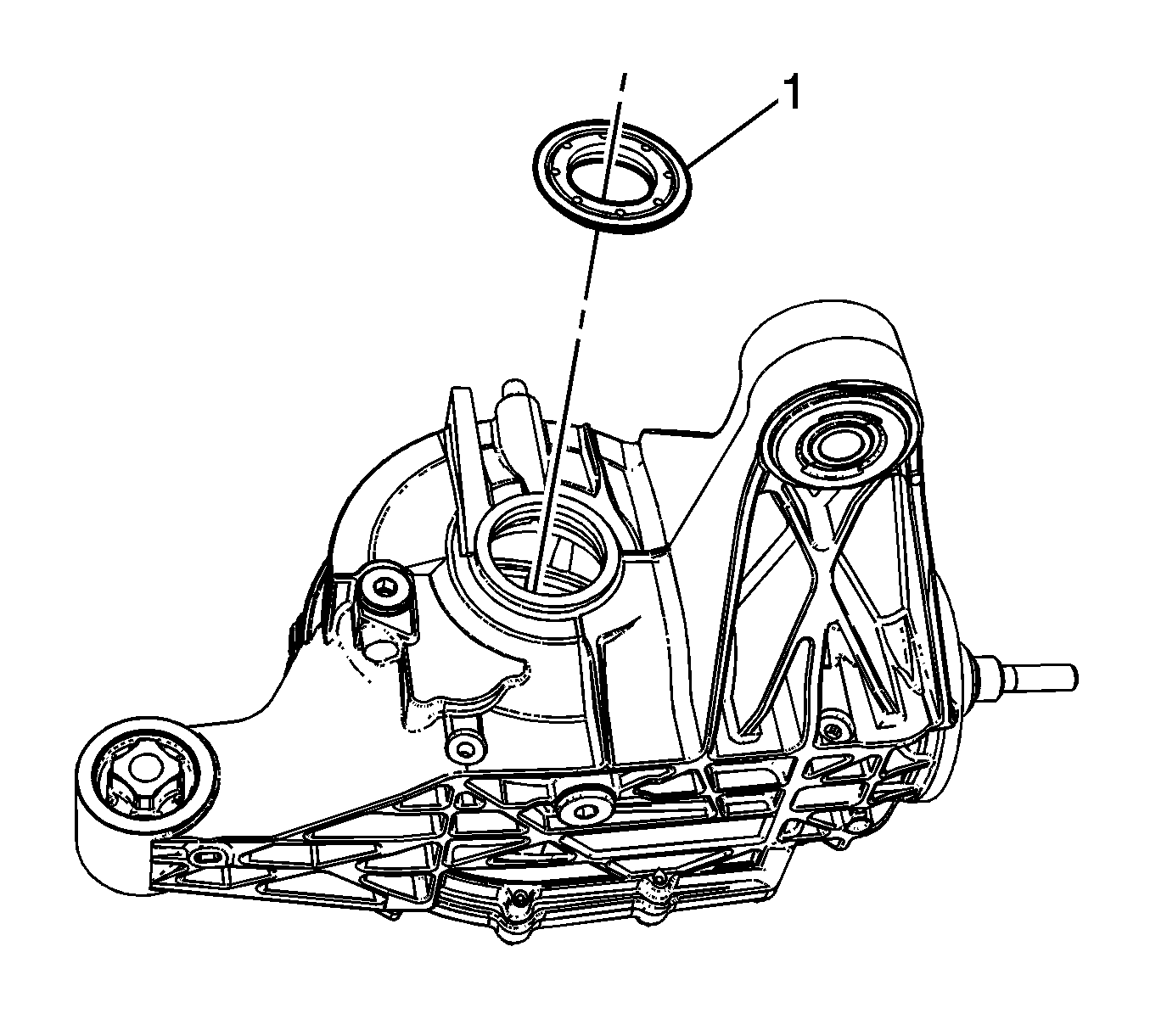

Fig 3: View of Oil Seal
Courtesy of GENERAL MOTORS CORP.
3. Using the J 24433  and a hammer, remove the axle oil seal (1) from the differential housing (2).

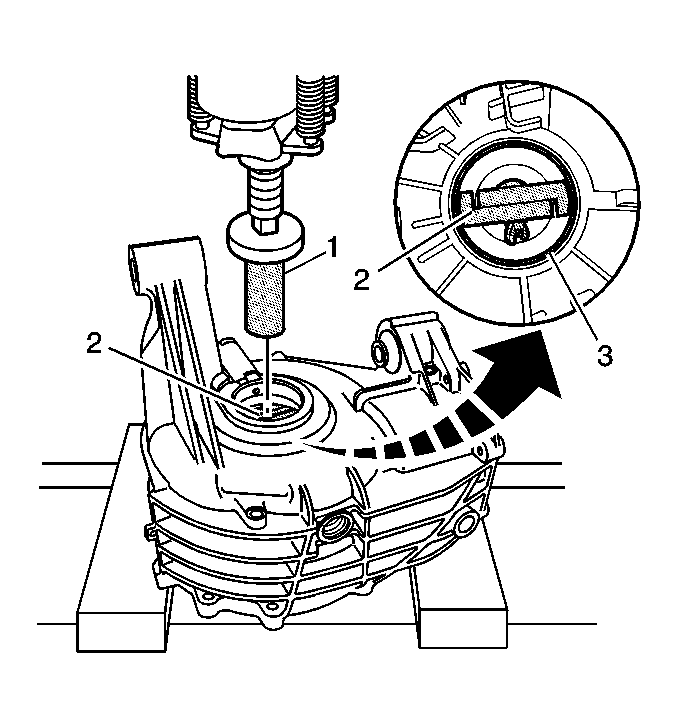

Fig 4: Identifying J 45008 and Bearing Cup
Courtesy of GENERAL MOTORS CORP.
4. Install the J 45008  (2) behind the bearing cup (3).
IMPORTANT: Mark or tag the shim and the race carrier.
5. Place the carrier in a press.
6. Place the J 24433  (1) against J 45008  (2) and press out the cup.
