Limited Slip Differential Cleaning and Inspection
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all parts with an approved solvent.
- Visually inspect all the parts for excessive wear or breakage. Replace the parts if necessary.

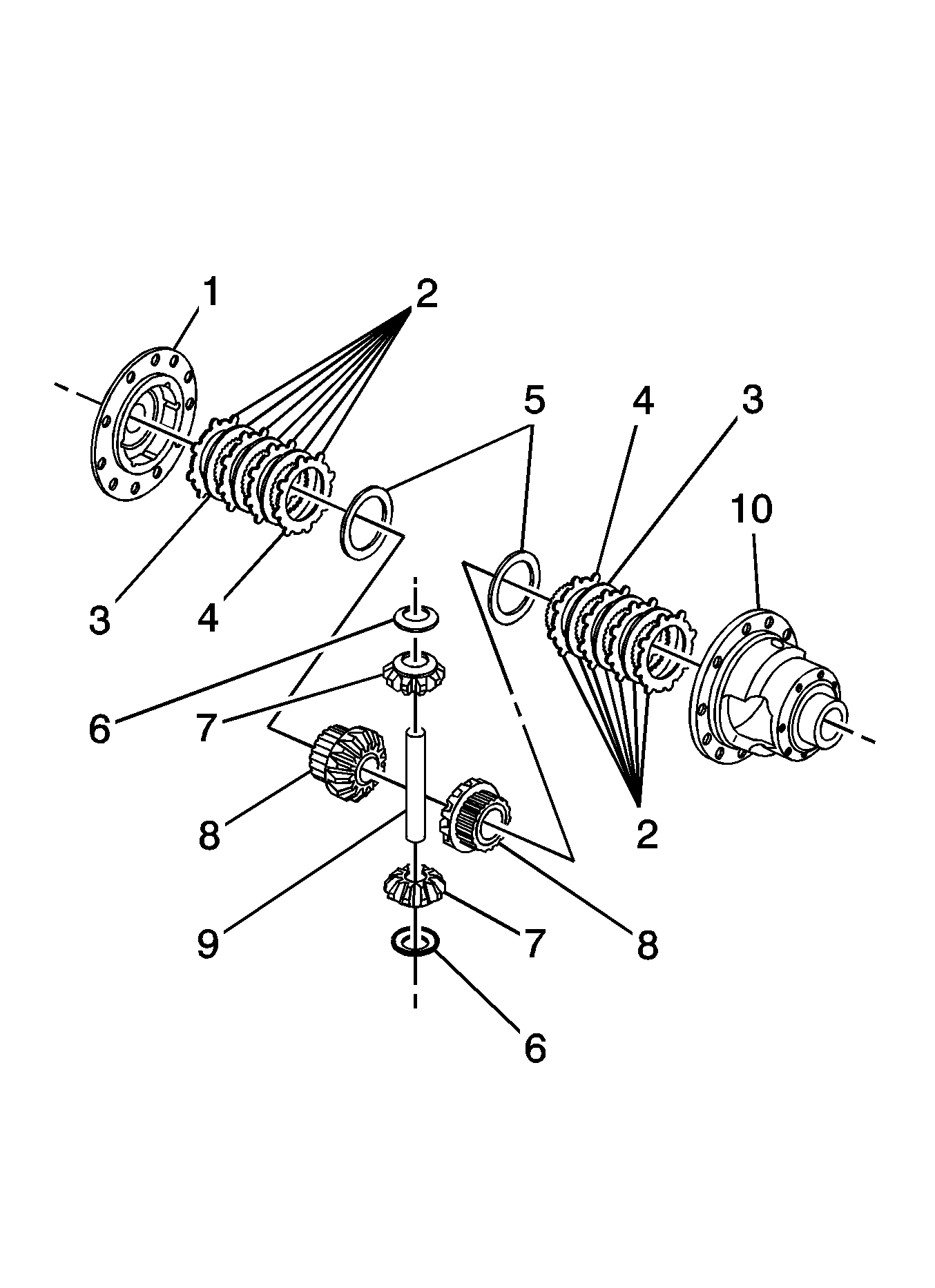

- Inspect the differential pinion gears (7) and the side gears (8) for any of the following conditions:
- Wear
- Cracks
- Scoring
- Spalling
- Inspect the differential clutch disc packs (2).
- Inspect the splined differential clutch disc (3)
- Inspect the eared differential clutch disc (4)
- Inspect the differential clutch disc thrust washers (5).
- Inspect the differential thrust washers for wear (6).
- Inspect the differential carrier case (1) and (10) for cracks and scoring.
- Replace the differential assembly if there is damage to the differential carrier case.
CAUTION:
Refer to Safety Glasses Caution
.
