Tools Required

J 42162 Getrag Axle Side Gear Compressor

Fig 1: Identifying Beveled Washer
Courtesy of GENERAL MOTORS CORP.
1. Install the clutch disc thrust washers (108) on the pinion side gears with the bevel facing out.

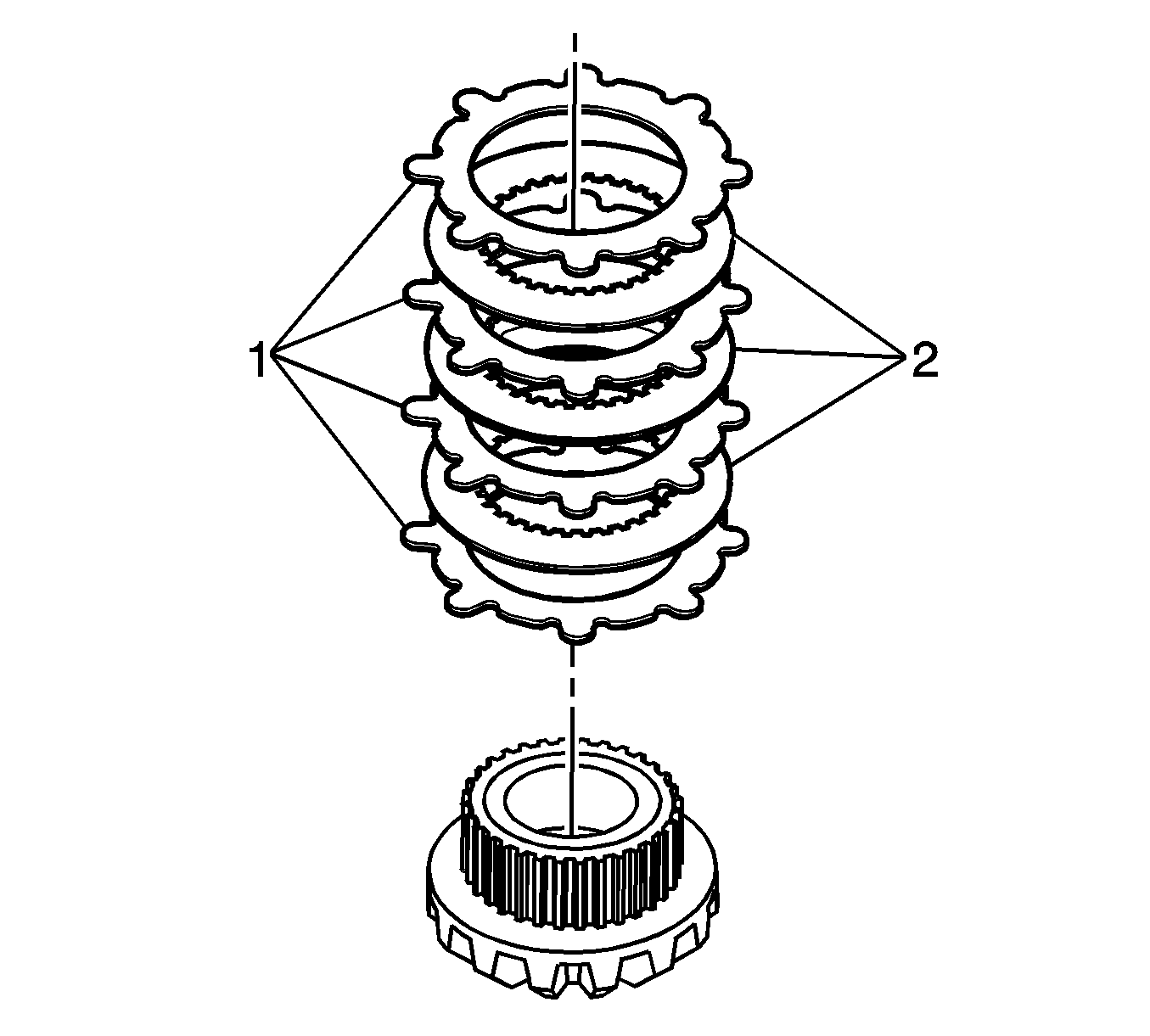

Fig 2: View of Clutch Discs
Courtesy of GENERAL MOTORS CORP.
IMPORTANT: The clutch discs develop specific wear patterns, and must be reassembled the same way as they were removed.
2. Install the eared clutch disc (110) first, then the splined clutch disc (109). Repeat this pattern until all the clutch disc have been installed.

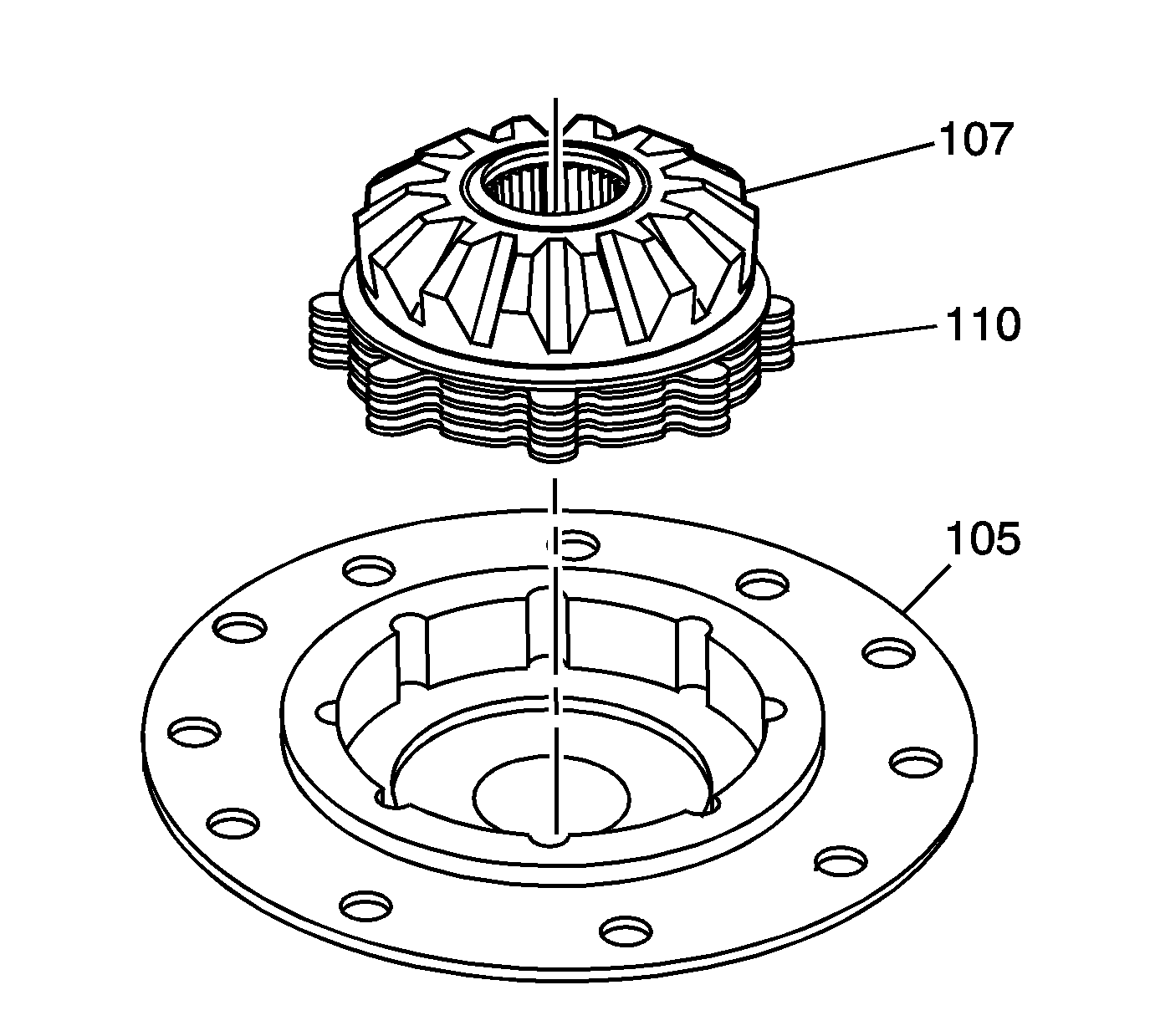

Fig 3: Identifying Axle Side Gear, Clutch Pack & Right Case Half
Courtesy of GENERAL MOTORS CORP.
3. Align all the eared clutch disc (110) before installing the clutch disc assembly in the left or right differential case halves.
4. Install the assembled axle side gear (107) into the right differential case half (105).

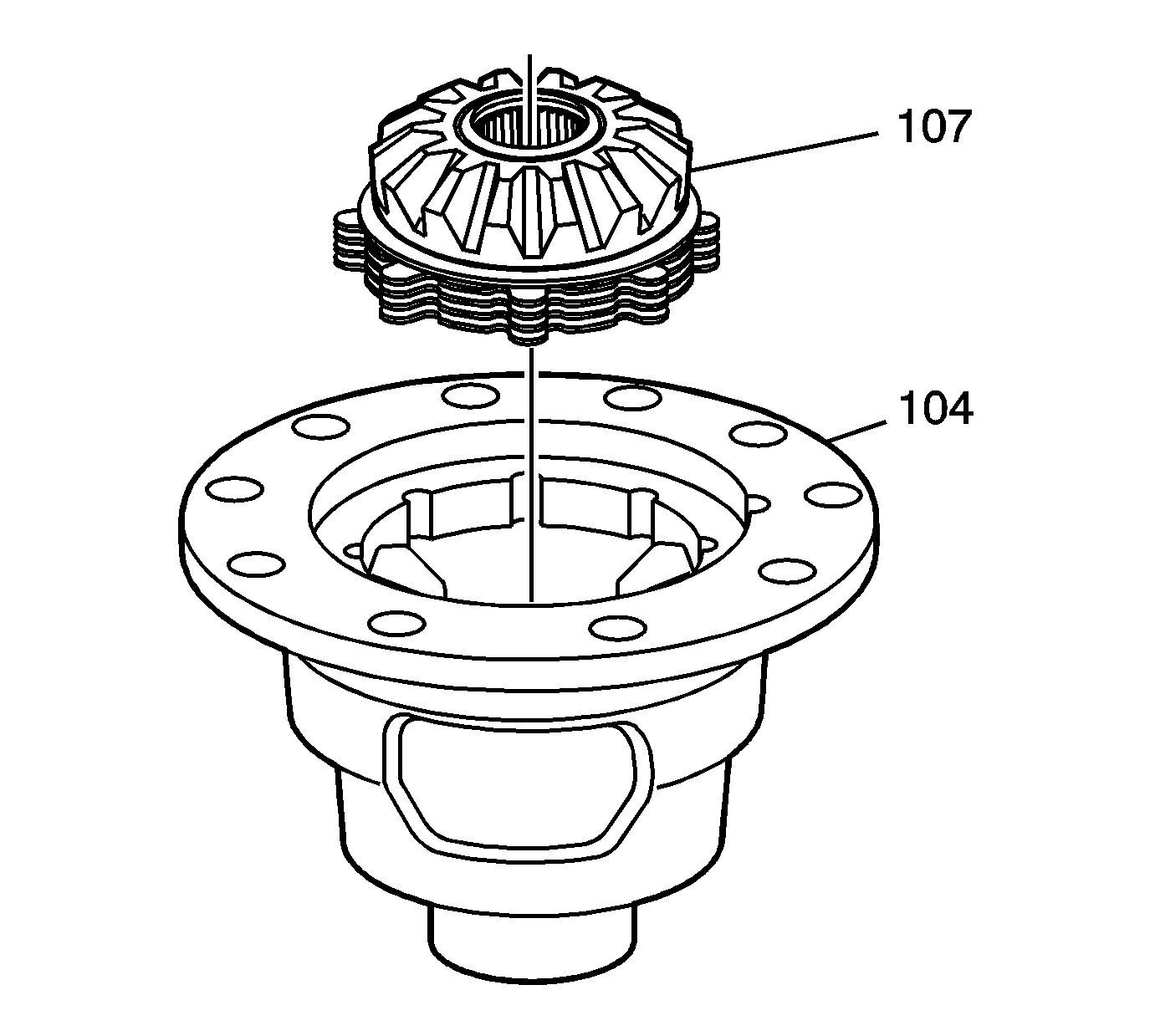

Fig 4: View of Axle Side Gear Into Left Case Half
Courtesy of GENERAL MOTORS CORP.
5. Install the assembled axle side gear (107) into the left differential case half (104).

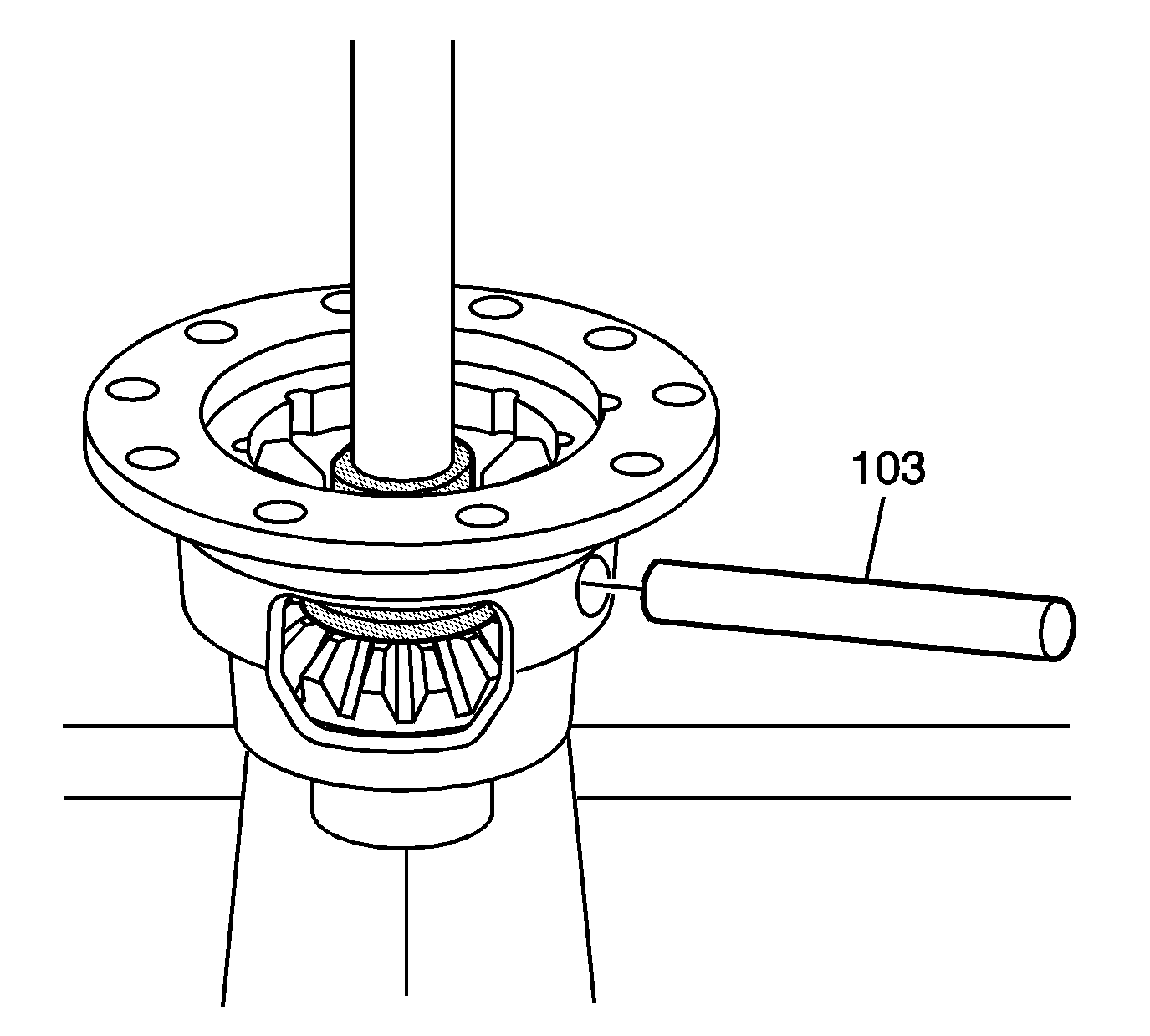

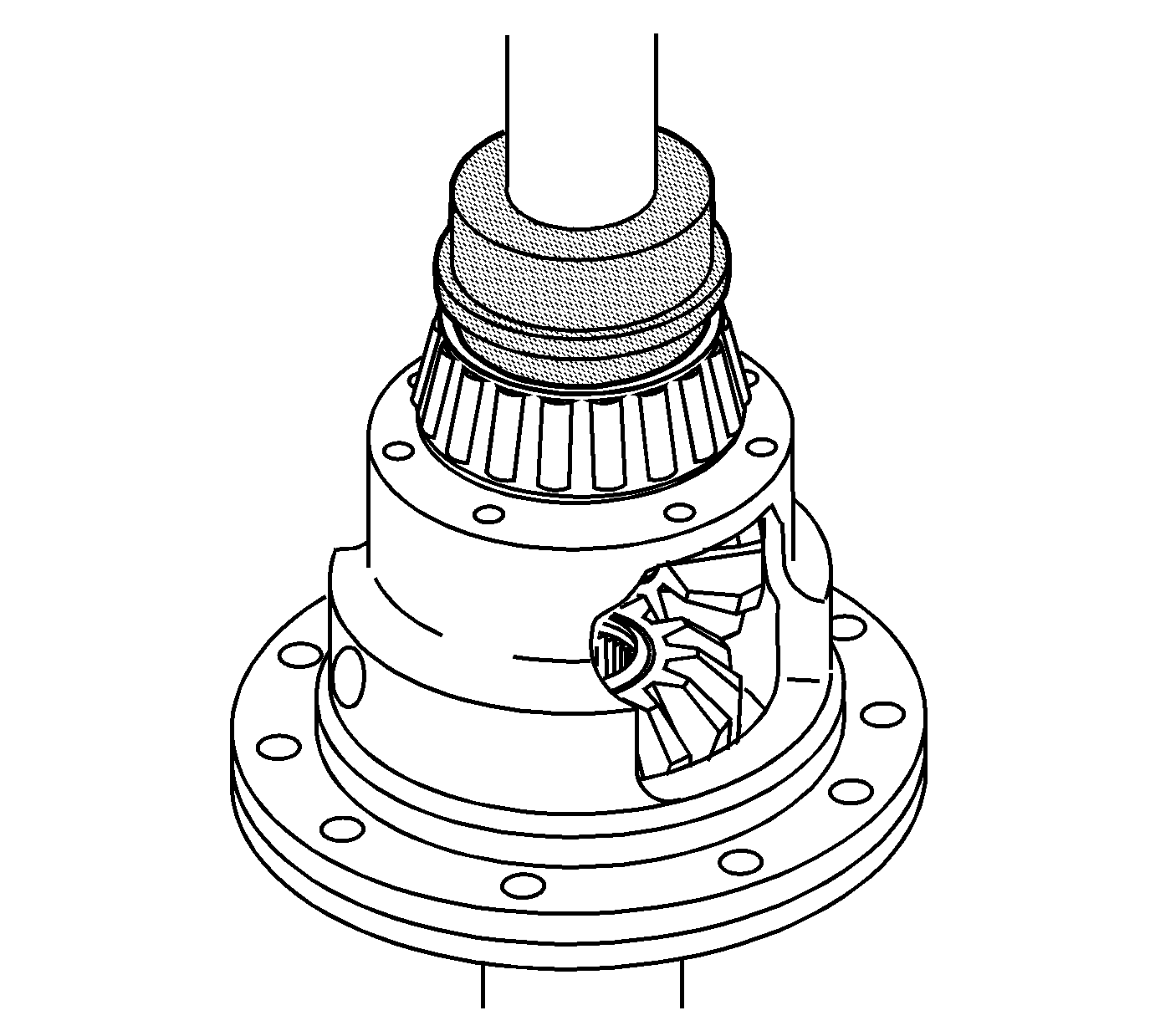

Fig 5: Identifying Differential Shaft
Courtesy of GENERAL MOTORS CORP.
6. Using the J 42162  and a press, apply light pressure on the pinion gears to align the pinion differential shaft bores.
IMPORTANT: The differential pinion gear shaft should move freely in the differential case.
7. Install the differential pinion shaft (103) into the differential carrier.
Fig 6: View of Aligning Bolt Holes Between Halves
Courtesy of GENERAL MOTORS CORP.
8. Using the proper punch or a Phillips screwdriver, align the bolt holes between the differential case halves and lightly press them together.
