Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear differential assembly. Refer to Differential Replacement .

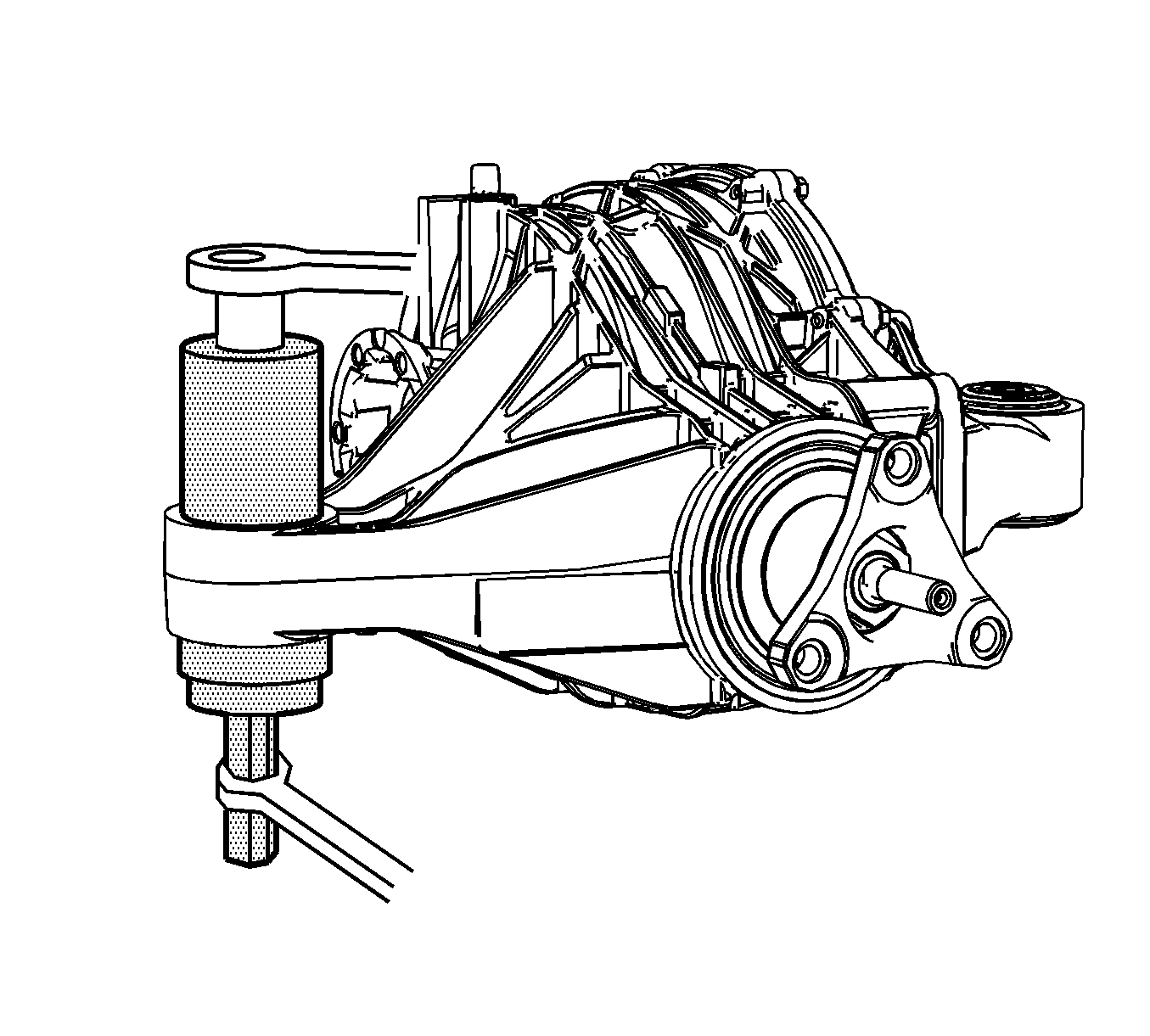

Fig 1: Identifying DT-48060-A

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Apply a small amount of clean oil on the threads of the DT-48060-A . See Special Tools .

IMPORTANT: Check the bore of the bushing for any damage. If there is any damage found, cracks, etc., replace the differential assembly.

Using the DT-48060-A , remove the differential housing support bushing. See Special Tools .
