Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

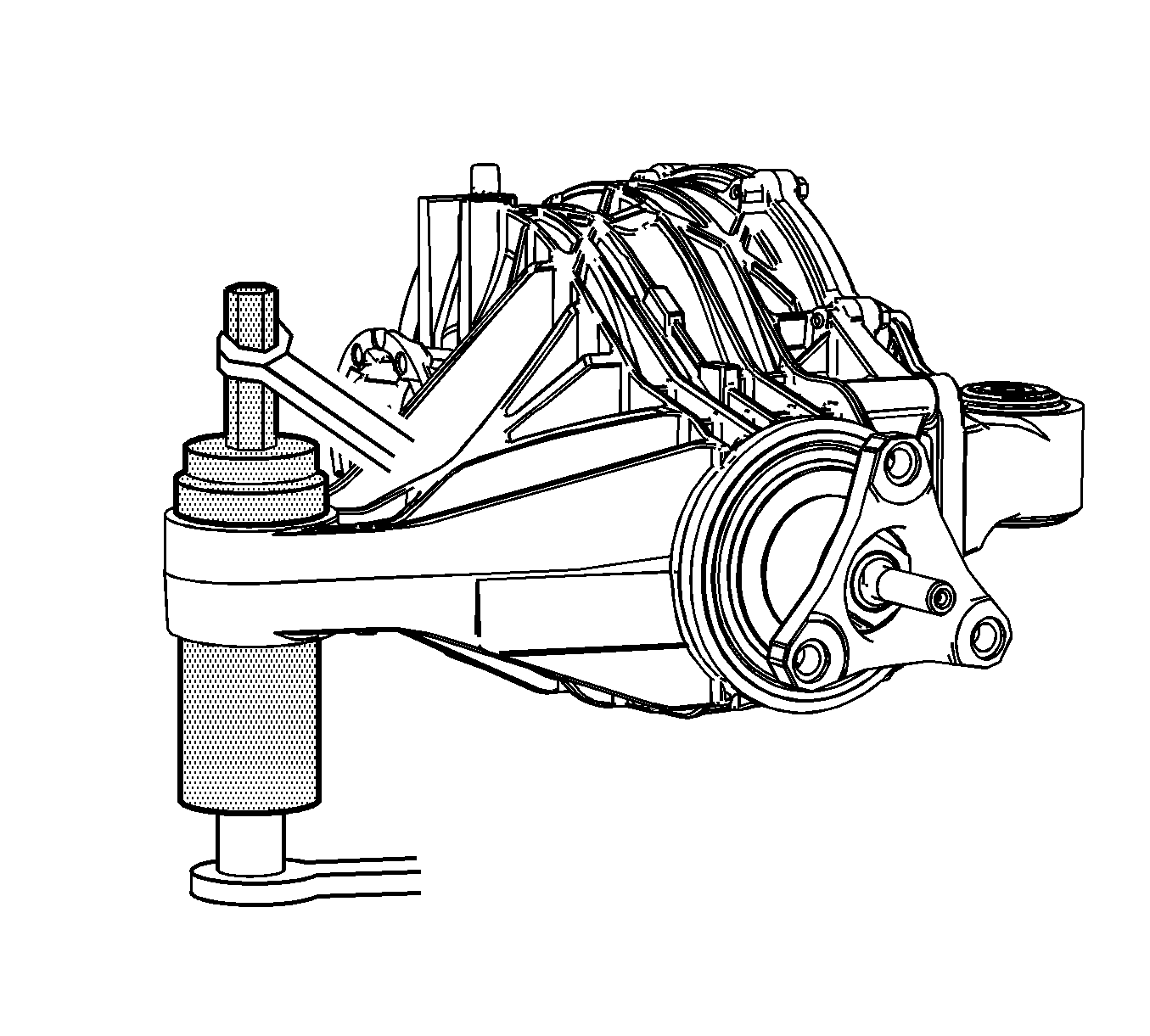

    Fig 1: Identifying DT-48060-A
    GM1978191Courtesy of GENERAL MOTORS CORP.
  1. Using the DT-48060-A  , install the differential housing support bushing. See Special Tools .
  2. Install rear differential assembly. refer to Differential Replacement .
  3. Remove the support and lower the vehicle.
