Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear differential assembly. Refer to Differential Replacement .

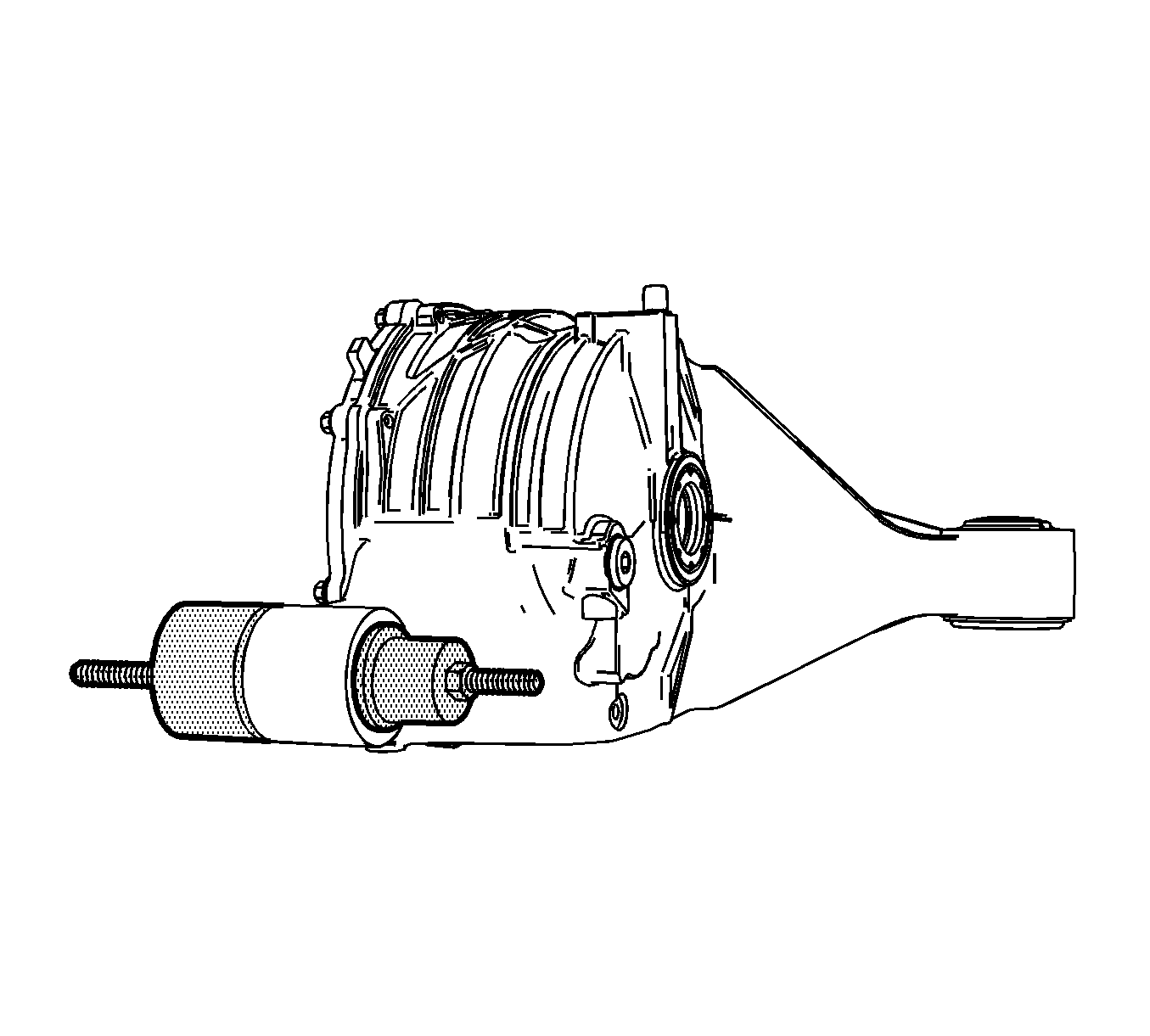

Fig 1: View of DT-48060-A

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Apply a small amount of clean grease or oil the thread of the DT-48060-A . See Special Tools .

IMPORTANT: Check the bore of the support bushing for damage, cracks, etc,. If any damage is found, replace the rear differential.

Using the DT-48060-A remove the rear differential housing support bushing. See Special Tools .
