Differential Case

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

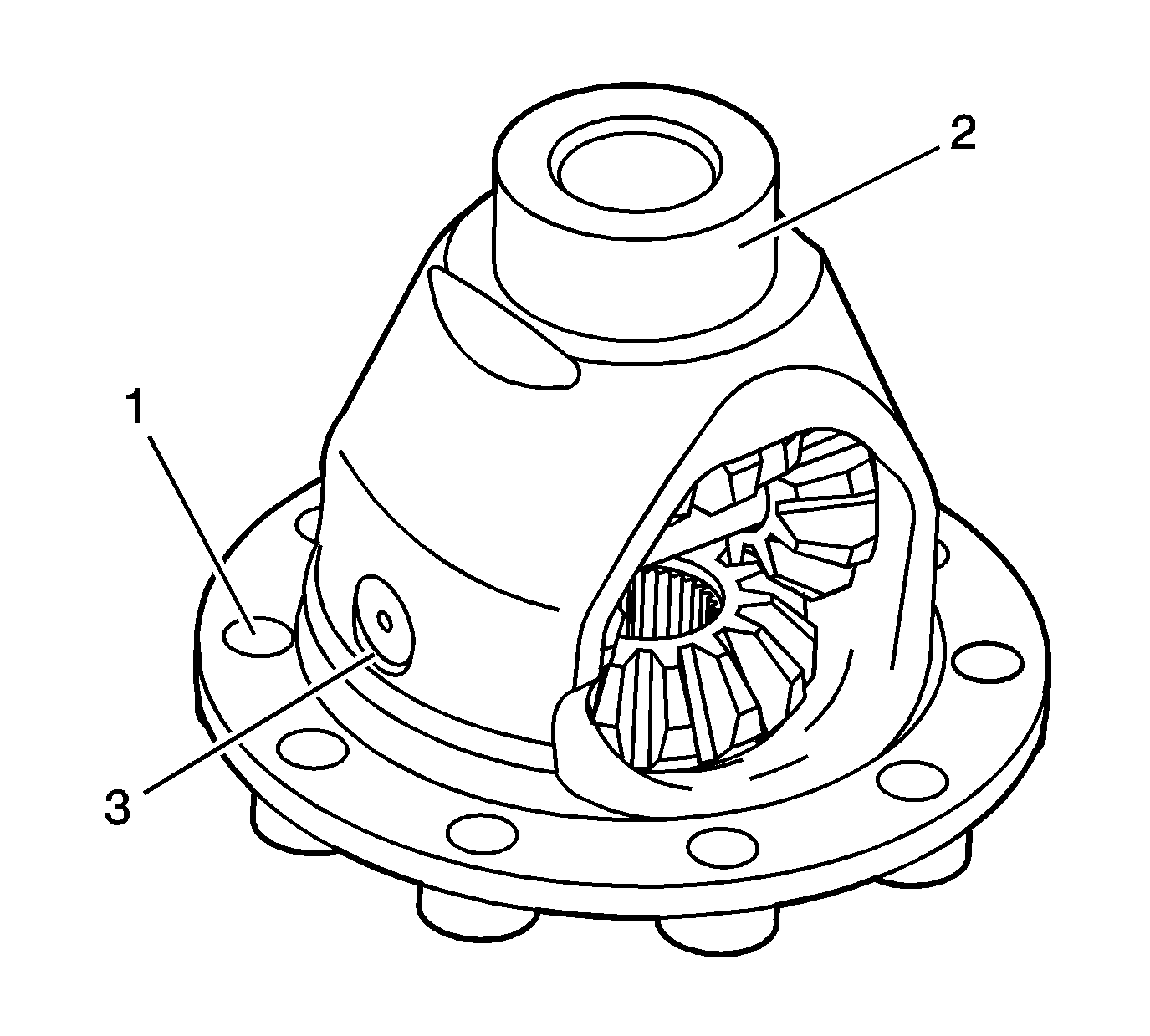

Fig 1: View of Differential Case

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Safety Glasses Caution .

Clean the differential case in solvent.
Inspect the differential case for the following conditions:
- Chips or cracks
- Damage to the bolts holes (1)
- Unusual wear, grooves or scoring
- Damaged side bearing flanges (2)
- Heat discoloration
- Worn differential pin bores (3)

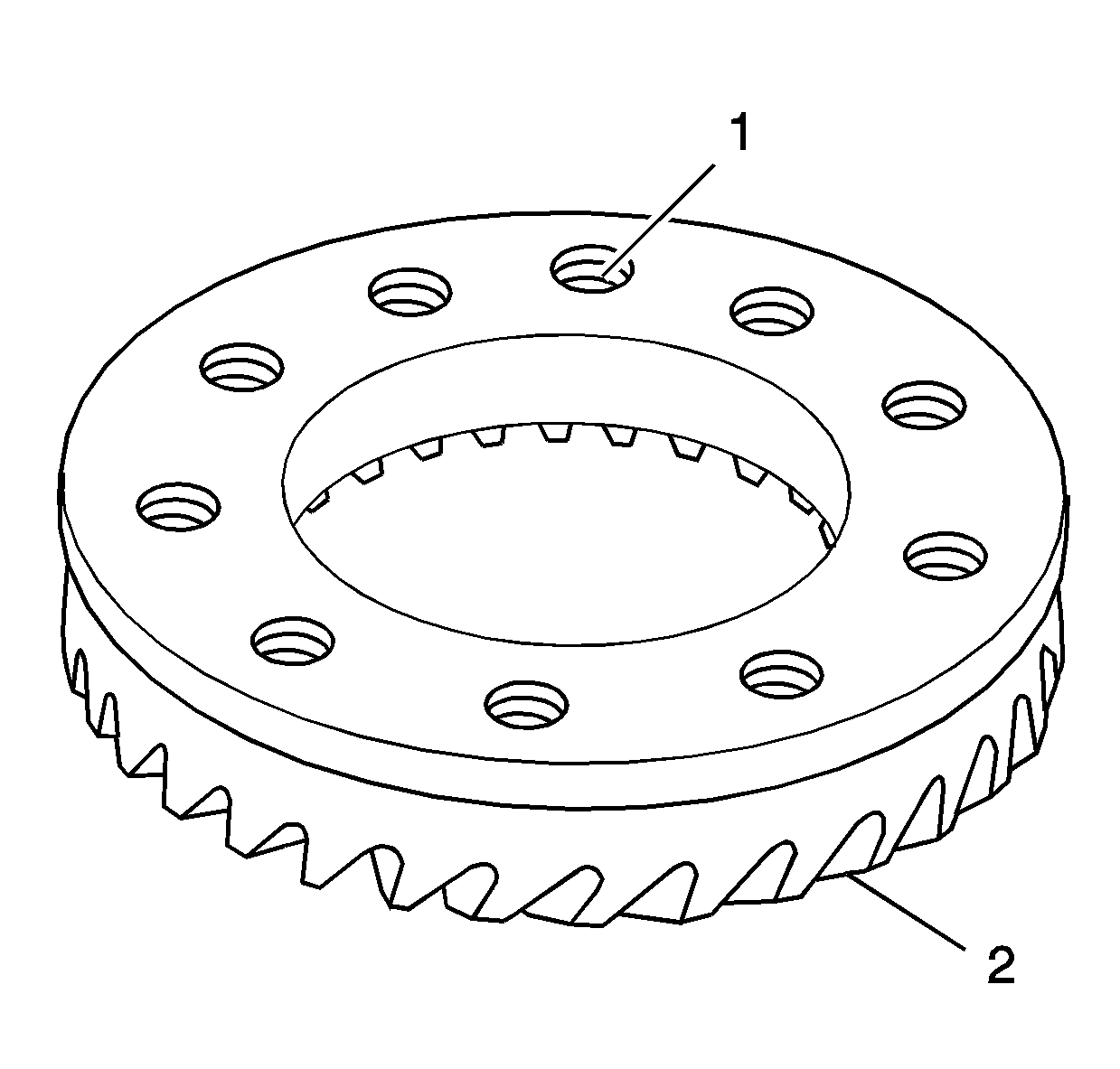

Fig 2: Identifying Ring Gear

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Safety Glasses Caution .

Clean the ring gear in solvent.
Inspect the ring gear for the following conditions:
- Damage to the threaded holes (1)
- Unusual wear or heat discoloration to the gear teeth (2)

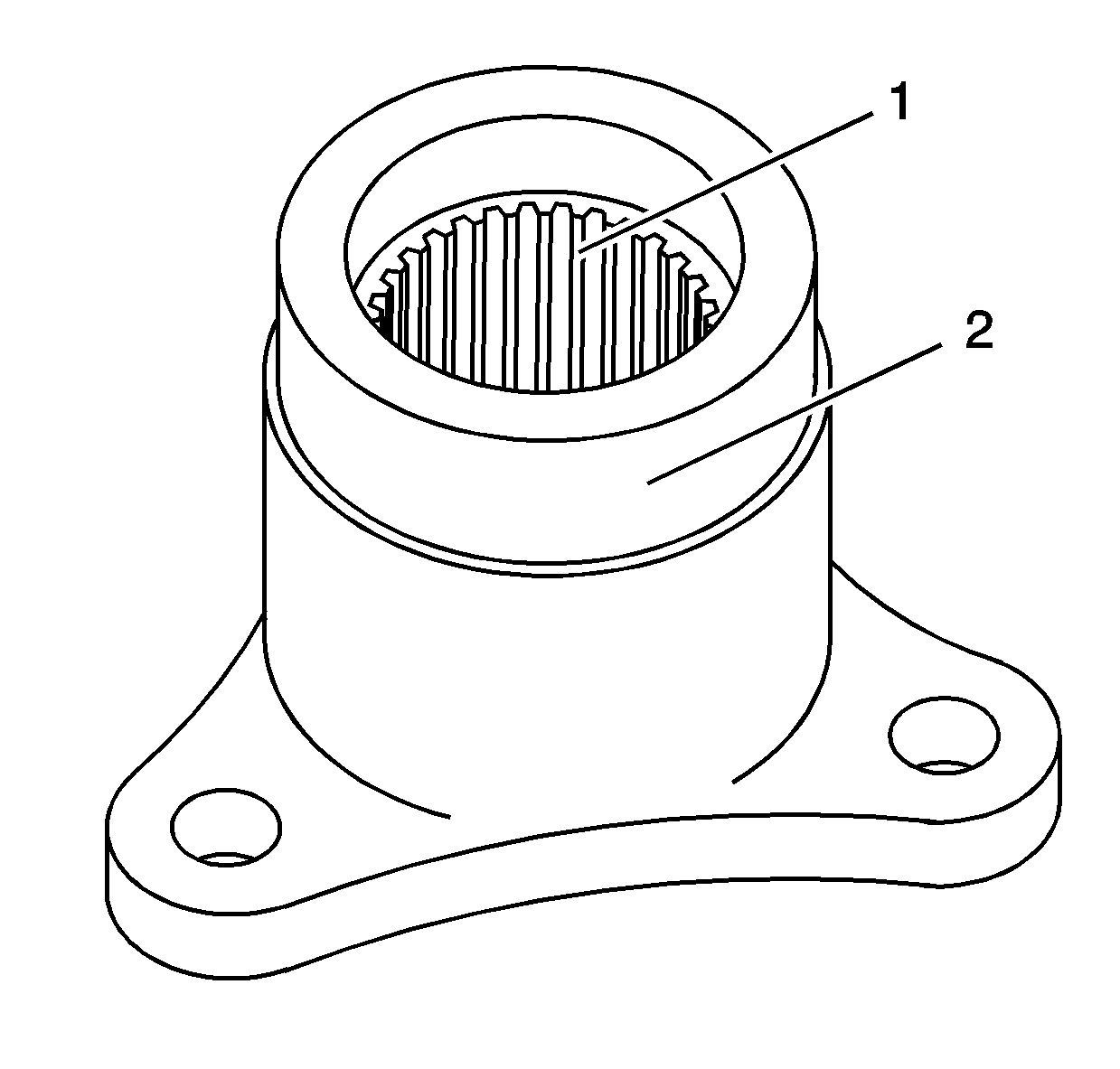

Fig 3: Identifying Pinion Flange

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Safety Glasses Caution .

Clean the pinion flange in solvent.
Inspect the pinion flange for the following conditions:
- Splines for wear, pitting or twisting (1)
- Sealing surface for grooves or pitting (2)
