Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Brake Dust Caution .
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
    3. Fig 1: Identifying Bolts and Caliper Pin
    GM1969851Courtesy of GENERAL MOTORS CORP.
  3. Using a backup wrench on the brake caliper guide pin, remove the brake caliper guide pin bolts (1).
    4. NOTE: Support the brake caliper with heavy mechanic wire, or equivalent, whenever it is separated from its mount and the hydraulic flexible brake hose is still connected. Failure to support the caliper in this manner will cause the flexible brake hose to bear the weight of the caliper, which may cause damage to the brake hose and in turn may cause a brake fluid leak.
    Fig 2: View of Brake Pads and Rotor
    GM1969852Courtesy of GENERAL MOTORS CORP.
  4. Remove the brake caliper and support with heavy mechanics wire or equivalent.
  5. Remove the outer brake pad (1).
  6. Remove the inner brake pad (2).

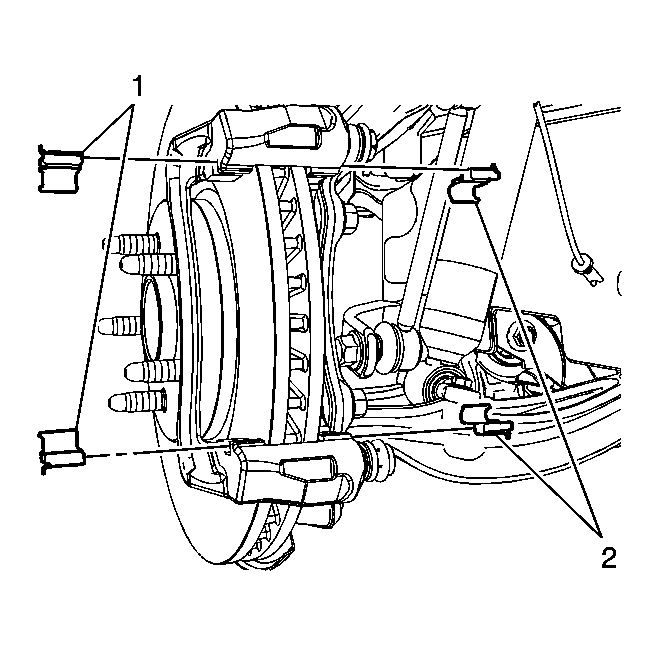

    7. Fig 3: View of Brake Pad Springs
    GM1969854Courtesy of GENERAL MOTORS CORP.
  7. Remove the outer brake pad springs (1).
  8. Remove the inner brake pad springs (2).
    9. IMPORTANT: The upper brake caliper guide pin is equipped with a bushing.
    Fig 4: View of Caliper and Guide Pin
    GM1969857Courtesy of GENERAL MOTORS CORP.
  9. Remove the upper brake caliper guide pin (1).
  10. Remove the upper guide pin seal (2).
    11. Fig 5: View of Caliper and Guide Pin
    GM1969860Courtesy of GENERAL MOTORS CORP.
  11. Remove the lower brake caliper guide pin (1).
  12. Remove the lower guide pin seal (2).
