Installation Procedure
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

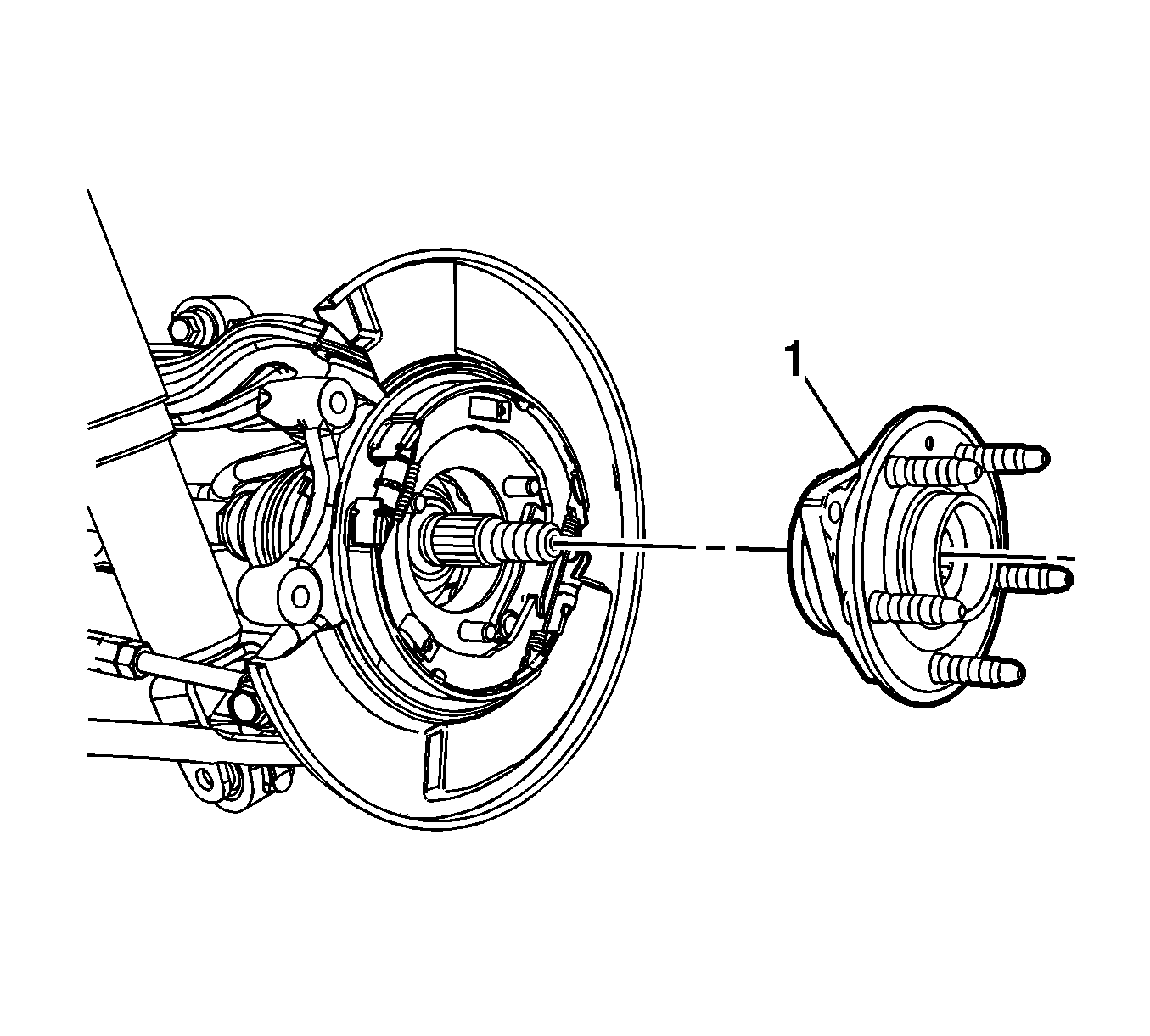

- Position the rear wheel bearing /hub (1) assembly in the knuckle.
- Insert the wheel drive axle into the wheel bearing/hub assembly.

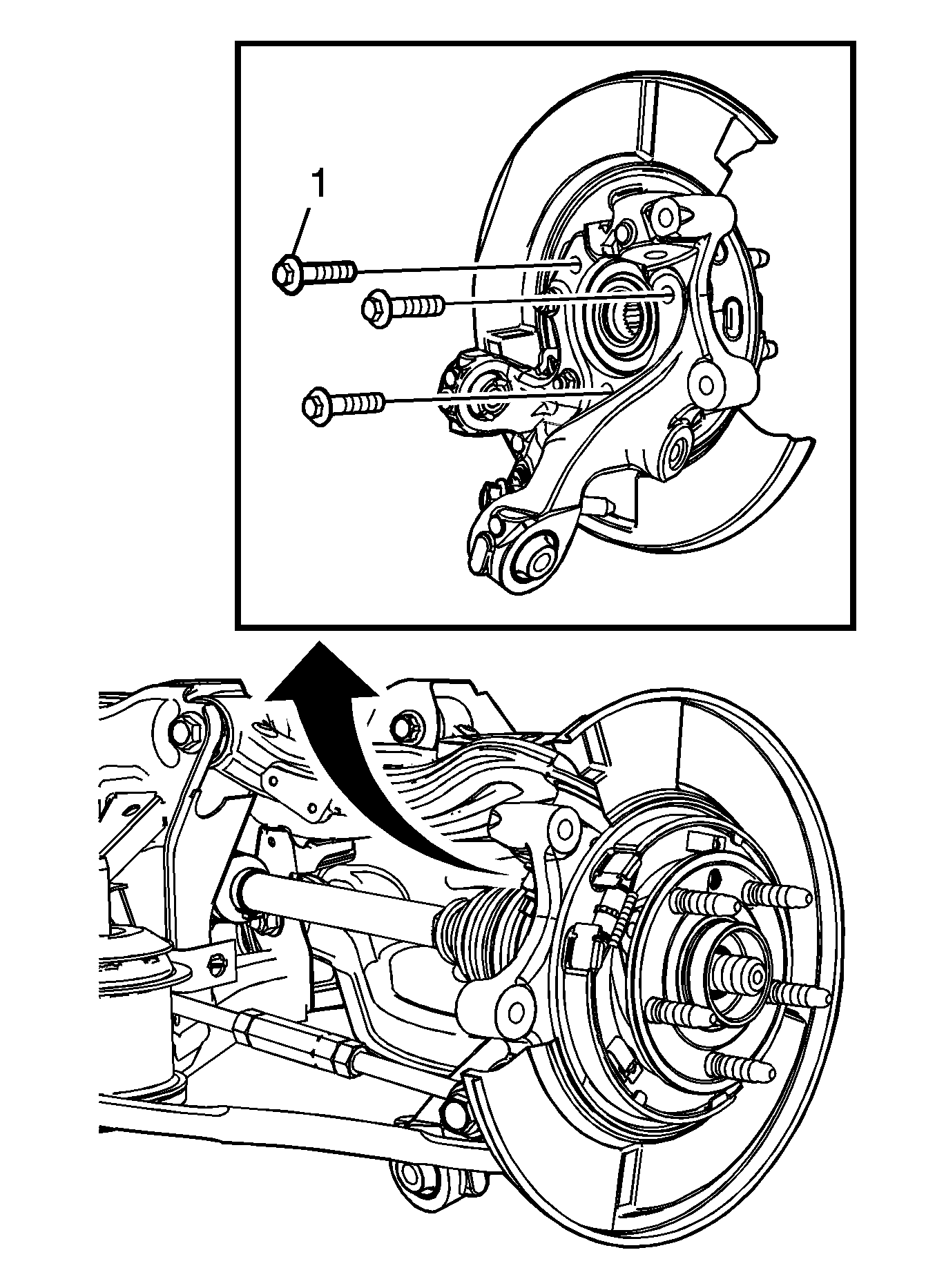

- Hand tighten the wheel bearing/hub assembly mounting bolts (1).
- Tighten the wheel bearing/hub bolts.
Tighten: Tighten the wheel bearing/hub bolts to 135 N.m (100 lb ft).
- Install the upper control arm bolt to the knuckle. Refer to Upper Control Arm Replacement .
- Install the rear brake rotor. Refer to Rear Brake Rotor Replacement .
- Install the wheel drive shaft nut.
- For the left wheel drive shaft, refer to Front Wheel Drive Shaft Replacement - Left Side .
- For the right wheel drive shaft, refer to Front Wheel Drive Shaft Replacement - Right Side .
- Install the rear wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
- Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
- Remove the support and lower the vehicle.
NOTE:
Refer to Fastener Notice
.
