Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .

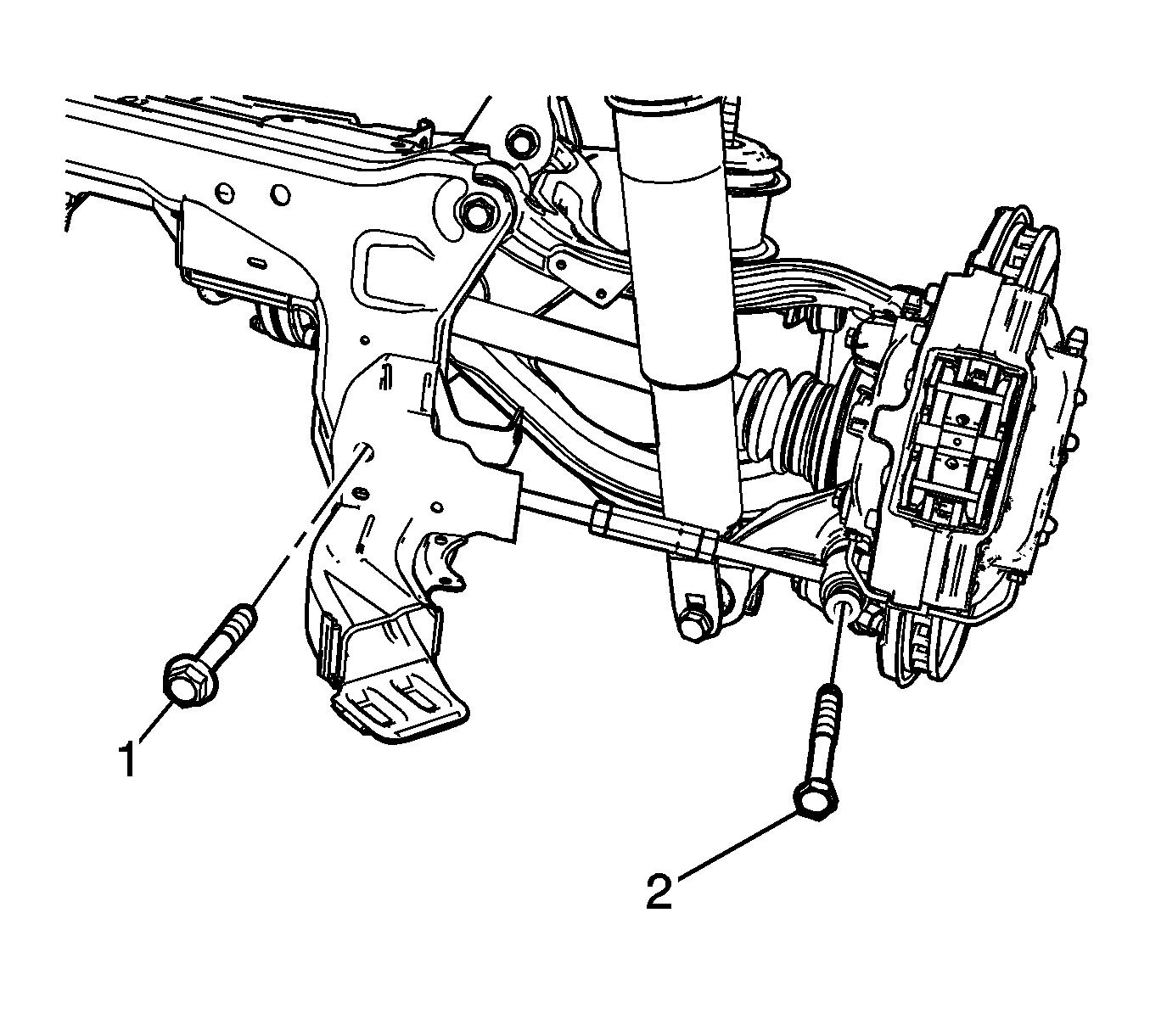

Fig 1: Identifying Adjustable Link Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the adjustable link mounting bolts (1) and (2).

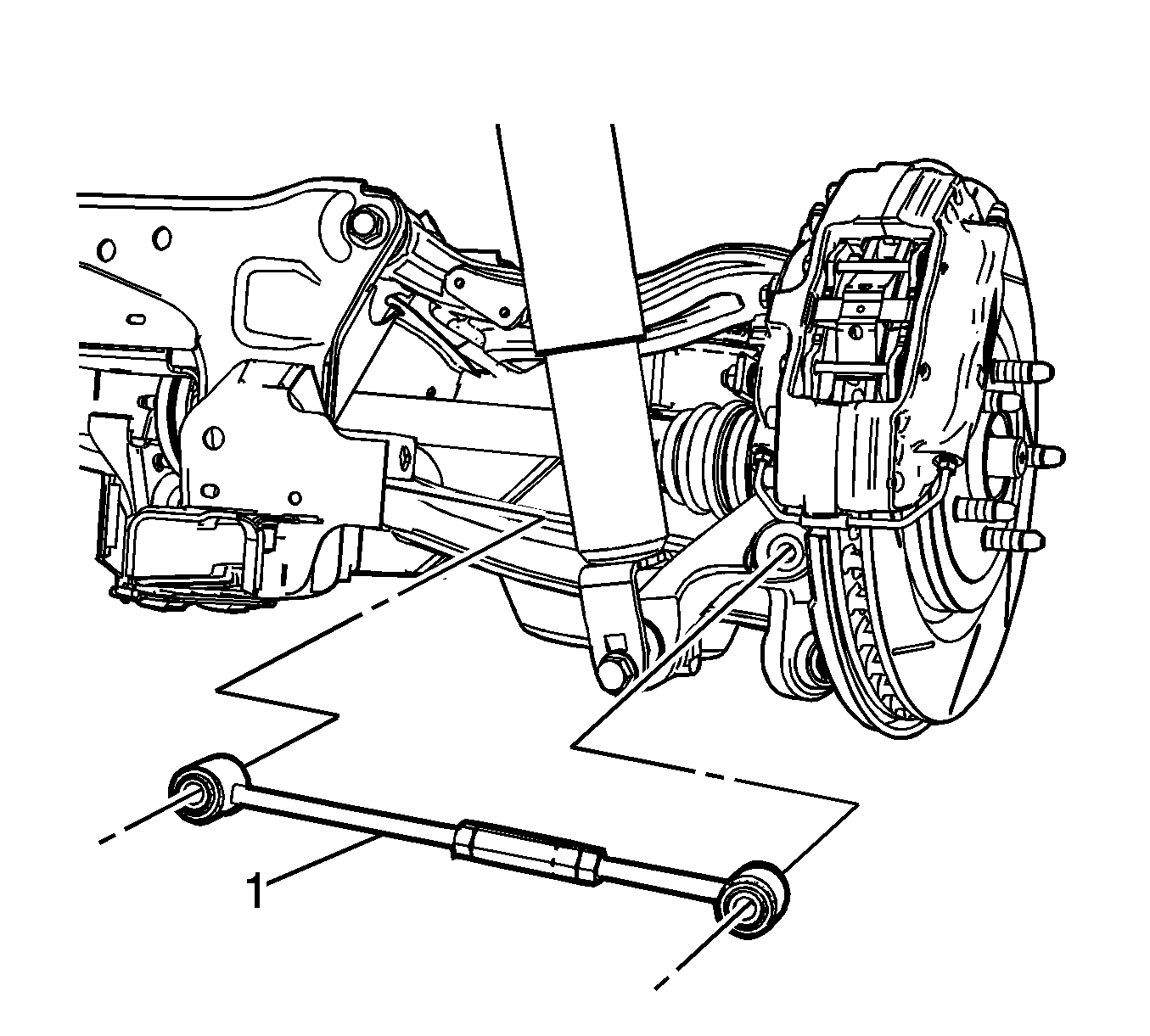

Fig 2: View of Adjustable Link Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the adjustable link (1).
