Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the catalytic converter seal/heat shield sealing surface. Replace the seal/heat shield if the sealing surface is worn or damaged.

Fig 1: Removing & Installing Right Exhaust Manifold

Courtesy of GENERAL MOTORS CORP.

Install a NEW exhaust manifold gasket to the exhaust manifold.
Install the exhaust manifold with the gasket to the catalytic converter and the cylinder head.

NOTE: Refer to Fastener Notice .

Install the exhaust manifold bolts.
Tighten: Tighten the exhaust manifold bolts to 20 N.m (15 lb ft).

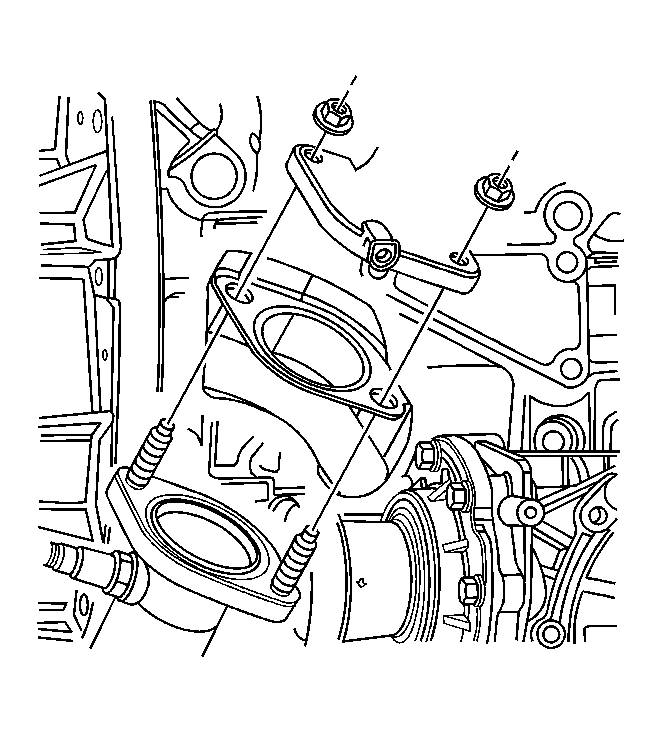

Fig 2: View Of Right Catalytic Converter

Courtesy of GENERAL MOTORS CORP.

Install the catalytic converter nuts.
Tighten: Tighten the catalytic converter nuts to 50 N.m (37 lb ft).
Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Right Side .
Inspect the exhaust system for leaks.
