Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Exhaust Service Caution .

CAUTION: Refer to Protective Goggles and Glove Caution .

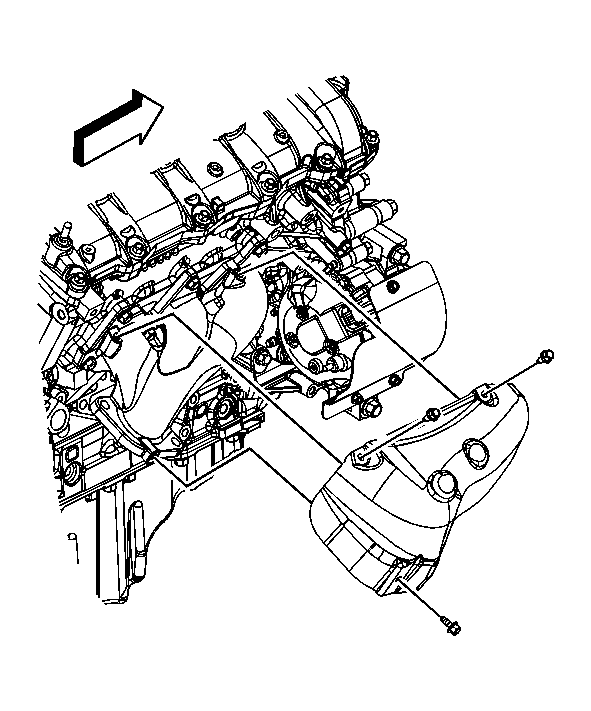

Fig 1: Removing/Installing Exhaust Manifold Heat Shield

Courtesy of GENERAL MOTORS CORP.

Remove the upper exhaust manifold heat shield bolts.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the exhaust manifold heat shield lower bolt.
Remove the exhaust manifold heat shield.

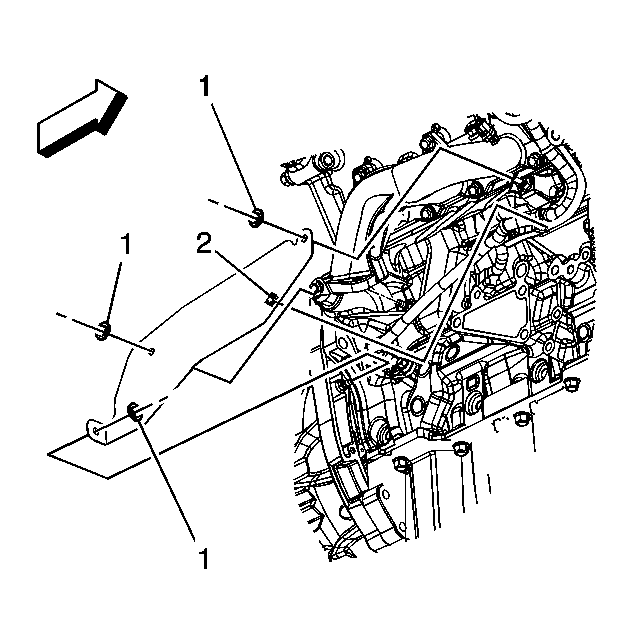

Fig 2: Removing/Installing Exhaust Manifold Heat Shield Retainers

Courtesy of GENERAL MOTORS CORP.

Remove the lower exhaust manifold heat shield retainers (1), if necessary.
Remove the lower exhaust manifold heat shield (2), if necessary.
