Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

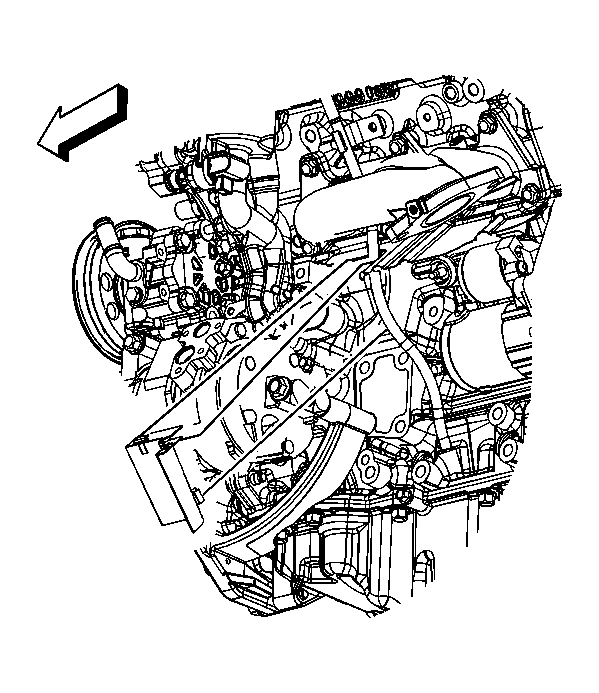

    Fig 1: View Of Oil Level Indicator Tube Lower Exhaust Manifold Heat Shield Insulator
    GM1562776Courtesy of GENERAL MOTORS CORP.
  1. Install the lower exhaust manifold heat shield insulator to the oil level indicator and exhaust gasket, if necessary.

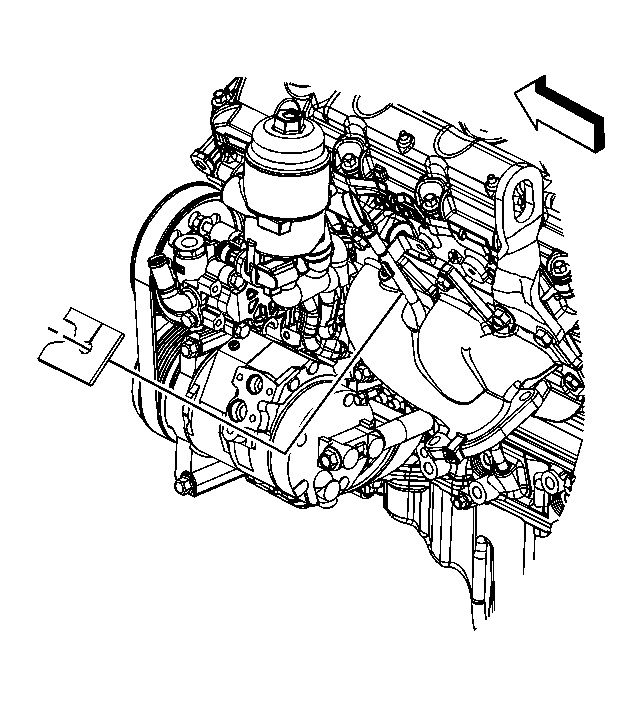

    2. Fig 2: View Of Upper Exhaust Manifold Heat Shield Insulator
    GM1562774Courtesy of GENERAL MOTORS CORP.
  2. Install the upper exhaust manifold heat shield insulator to the oil level indicator tube, if necessary.

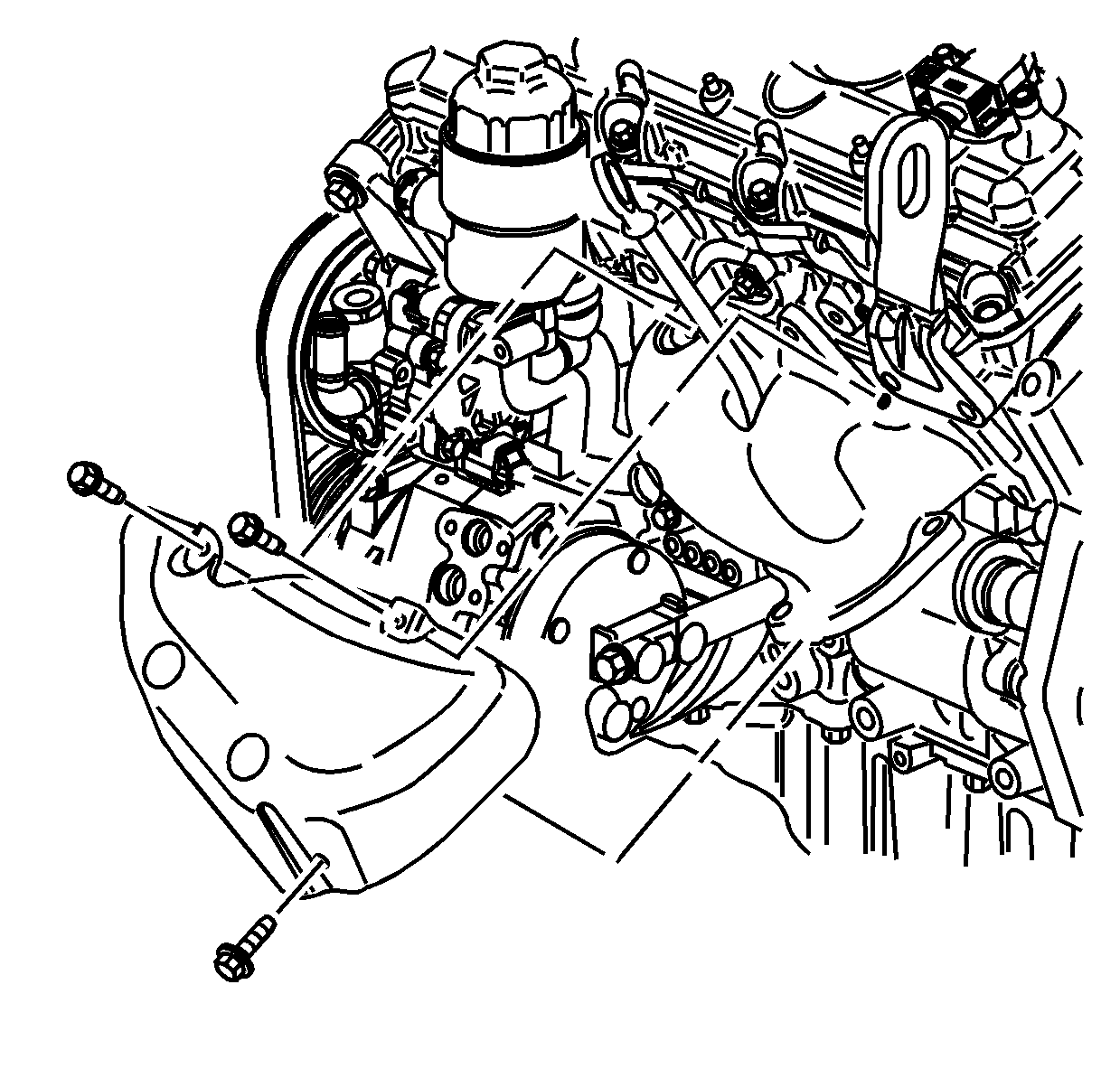

    3. Fig 3: View Of Left Exhaust Manifold Heat Shield
    GM945895Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust manifold heat shield.
  4. Install but do not tighten the exhaust manifold heat shield lower bolt.
  5. Lower the vehicle.
    6. NOTE: Refer to Fastener Notice .
  6. Install the exhaust manifold heat shield upper bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  7. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  8. Tighten the exhaust manifold heat shield lower bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  9. Install the center intermediate shaft to the lower intermediate shaft. Refer to Lower Intermediate Steering Shaft Replacement .
  10. Lower the vehicle.
