Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Exhaust Service Caution .
CAUTION: Refer to Protective Goggles and Glove Caution .
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

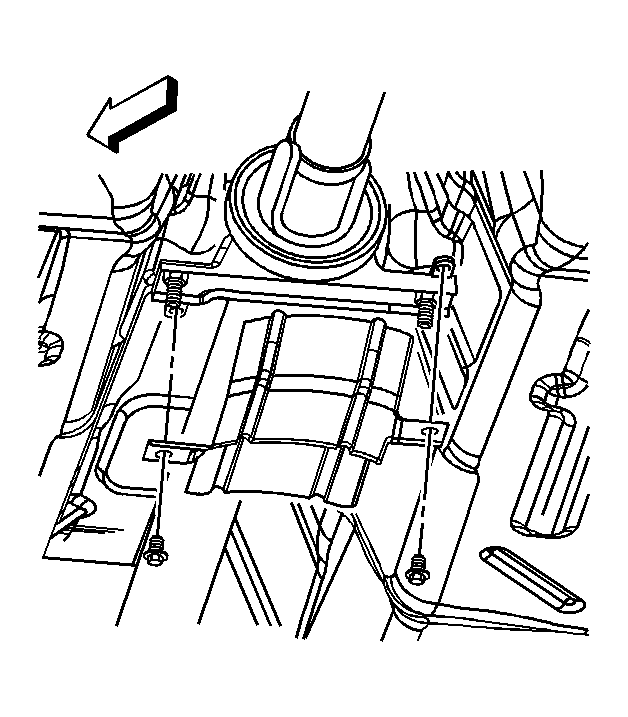

    2. Fig 1: View Of Center Bearing Heat Shield
    GM772358Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts securing the center bearing heat shield to the center bearing.
  3. Remove the heat shield from the center bearing in the following order:
    1. Tilt the heat shield to either side.
    2. Slide the heat shield out from between the body, the drive shaft center bearing, and the exhaust pipes.
    3. Remove the heat shield from the vehicle.
