Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Exhaust Service Caution .

CAUTION: Refer to Protective Goggles and Glove Caution .

Remove the left bank exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement - Left Side .

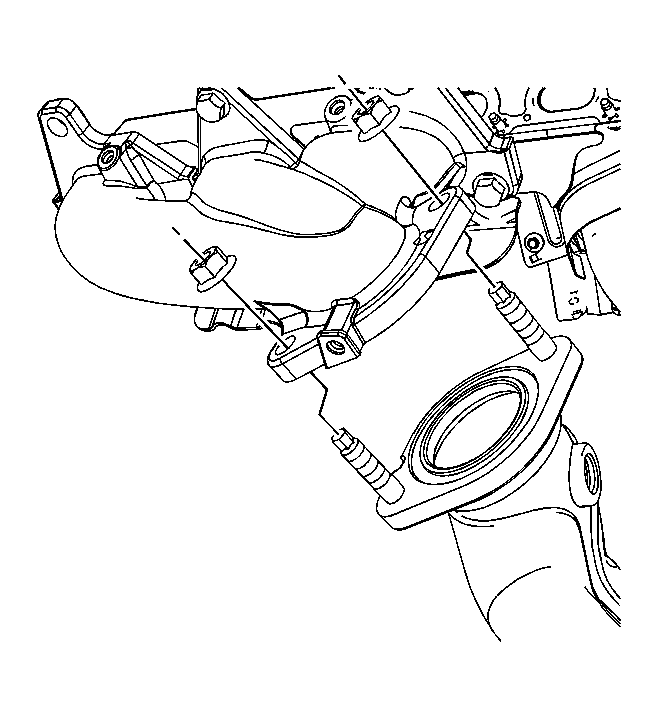

Fig 1: View of Catalytic Converter & Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the catalytic converter nuts.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the oxygen sensor electrical connector.

Fig 2: Identifying Muffler Pipes At Left And Right Side Catalytic Converters

Courtesy of GENERAL MOTORS CORP.

Disconnect the muffler pipe from the left and right side catalytic converters.
Remove the exhaust pipe to right bank catalytic converter nuts.
Carefully remove the catalytic converter with the seal/heat shield and oxygen sensor from the exhaust manifold.
Remove the oxygen sensor from the catalytic converter. Refer to Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 .
