Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

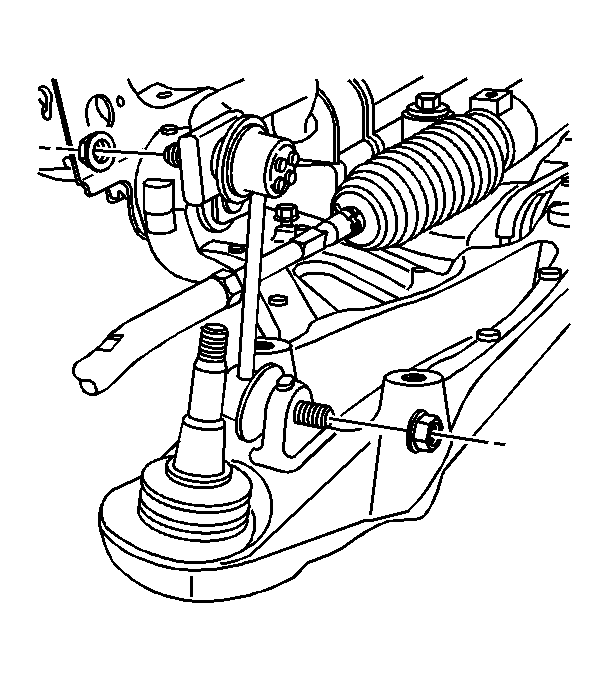

    Fig 1: Removing & Installing Stabilizer Shaft Link
    GM750841Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Apply threadlocker 242 or equivalent to the threads of the stabilizer shaft link.
  1. Install the stabilizer shaft link.
    2. NOTE: Refer to Fastener Notice .
  2. Install the stabilizer shaft link retaining nuts.

    Tighten:  Tighten the nuts to 125 N.m (92 lb ft).

    3. Fig 2: Identifying ABS Sensor Wiring Harness At Stabilizer Shaft Links
    GM746681Courtesy of GENERAL MOTORS CORP.
  3. Connect the ABS sensor wiring harness to the stabilizer shaft link.
  4. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  5. Lower the vehicle.
