Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

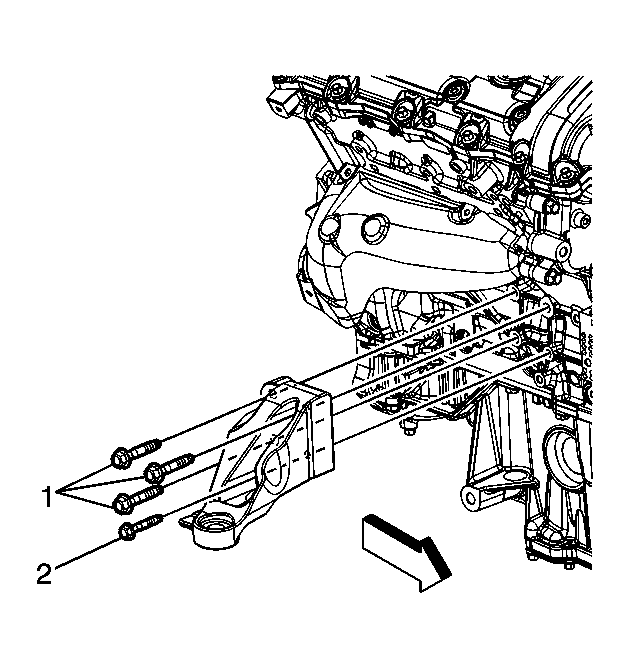

    Fig 1: View of Engine Mount Bracket Assembly
    GM1985401Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount bracket to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the M 10 engine mount bracket mounting bolts (1).

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

  3. Tighten the M 8 engine mount bracket mounting bolt (2).

    Tighten:  Tighten the bolts to 38 N.m (28 lb ft).

  4. Install the right side engine mount. Refer to Engine Mount Replacement - Right Side (w/AWD)  or Engine Mount Replacement - Right Side (w/RWD) .
