Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

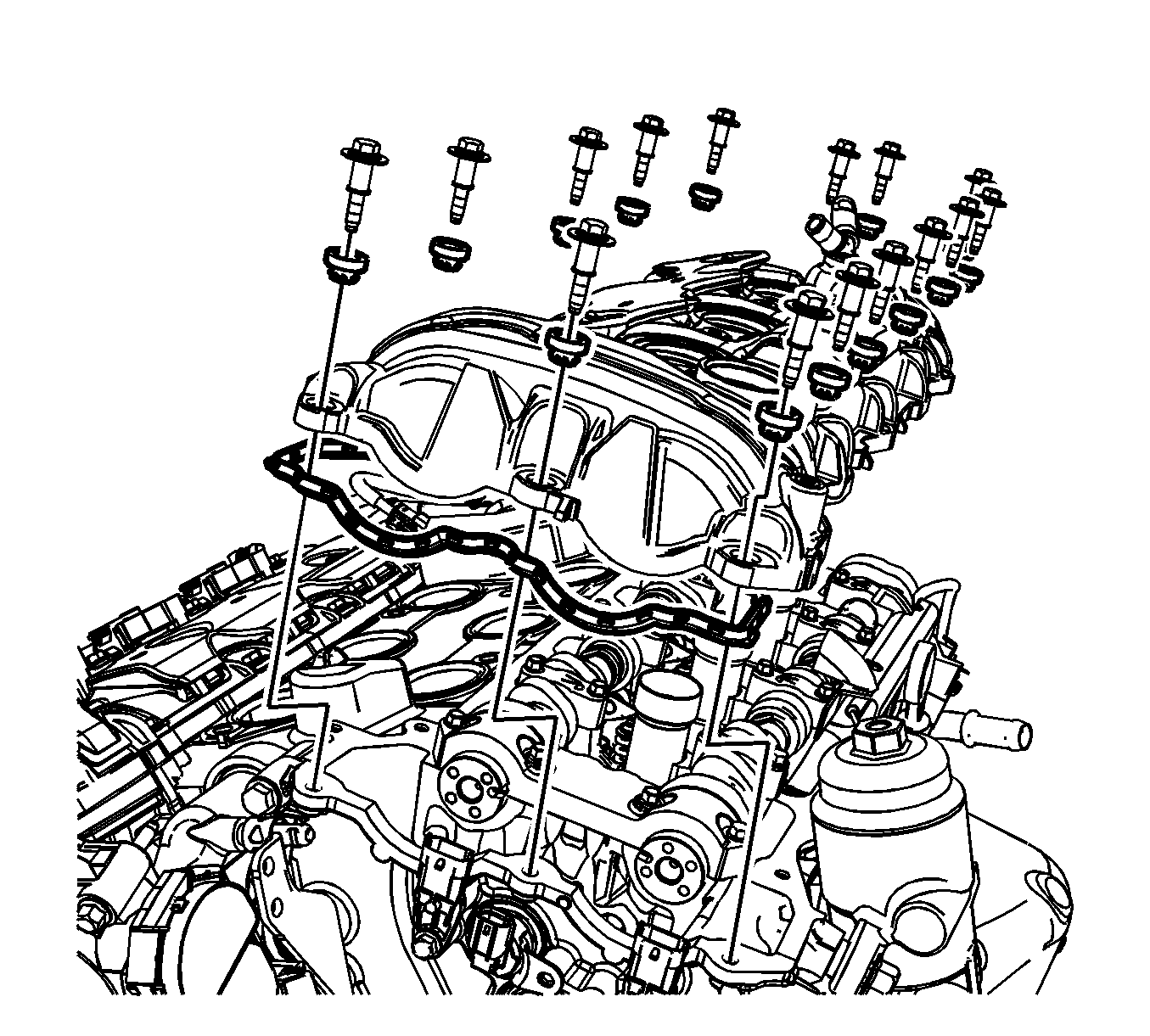

Fig 1: Identifying Camshaft Cover Seal & Grommets

Courtesy of GENERAL MOTORS CORP.

Install a NEW camshaft cover seal (1) and NEW grommets (2).
Install the camshaft cover. Refer to Camshaft Cover Installation - Left Side (LY7) or Camshaft Cover Installation - Left Side (LLT) .

NOTE: Refer to Fastener Notice .

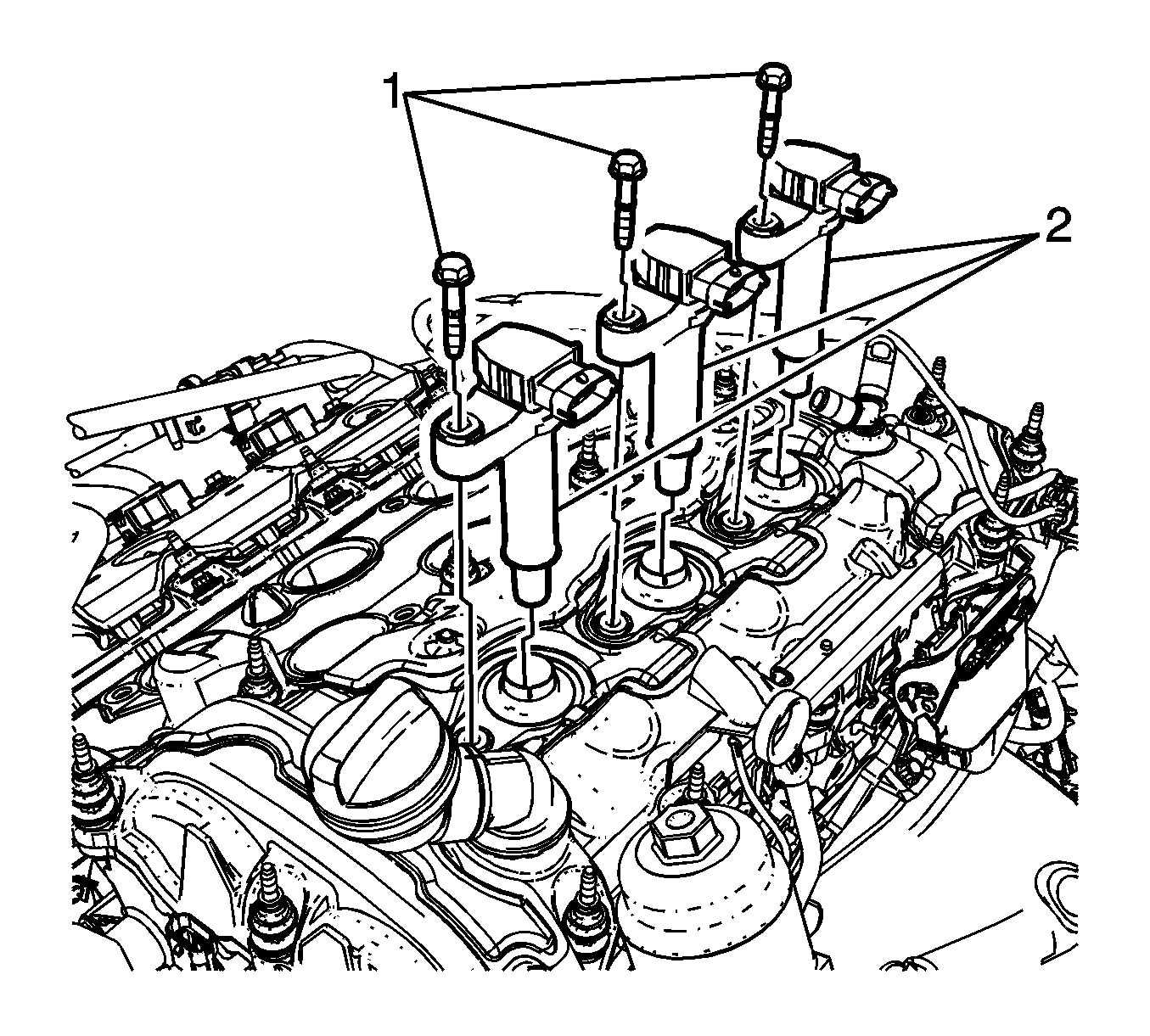

Fig 2: Identifying Ignition Coils & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the ignition coils (2).
Install the ignition coil bolts (1).
Tighten: Tighten the bolts to 10 N.m (89 lb in).

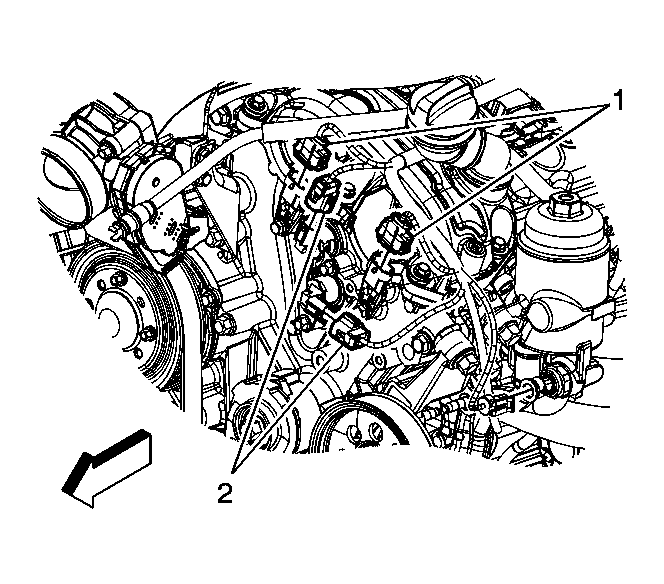

Fig 3: Identifying Camshaft Actuator Valves, Position Sensor & Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the camshaft actuator valves (2) and the camshaft position sensor (1) electrical connectors.
Install the wiring harness conduit retainers to the wiring harness conduit.

Fig 4: View Of Left Camshaft Cover Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

Install the wiring harness to the side of the camshaft cover.

Fig 5: View Of Left Ignition Coils Wiring Harness Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the ignition coil electrical connectors.
Install the crankcase ventilation pipe. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LY7) or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LLT) .
Install the fuel pipe shield. Refer to Fuel Pipe Shield Replacement (LLT) .
Install the intake manifold. Refer to Intake Manifold Replacement .
