Moveable Window Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

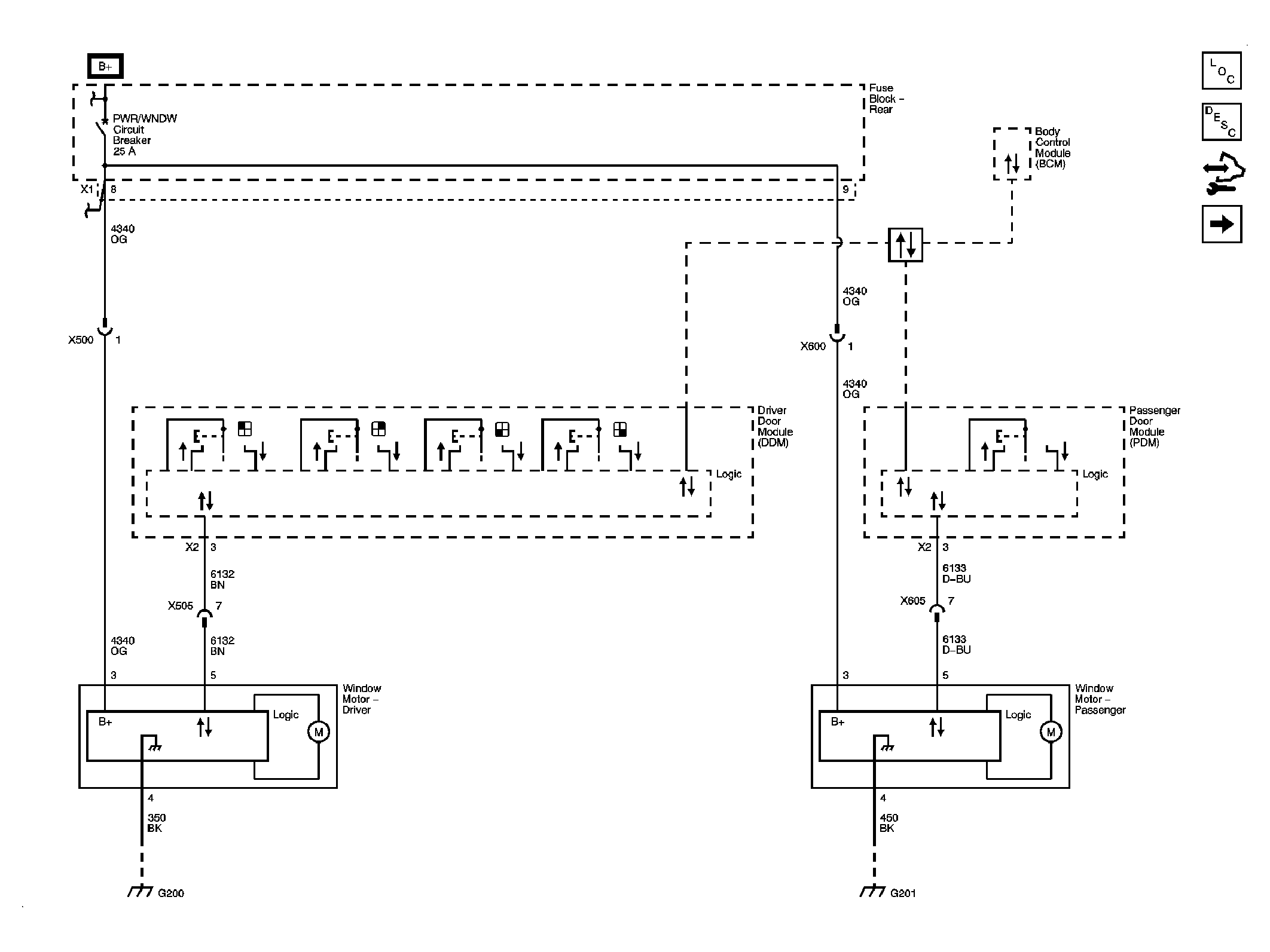

Fig 1: Moveable Window Schematic (Front)
GM1923560Courtesy of GENERAL MOTORS CORP.

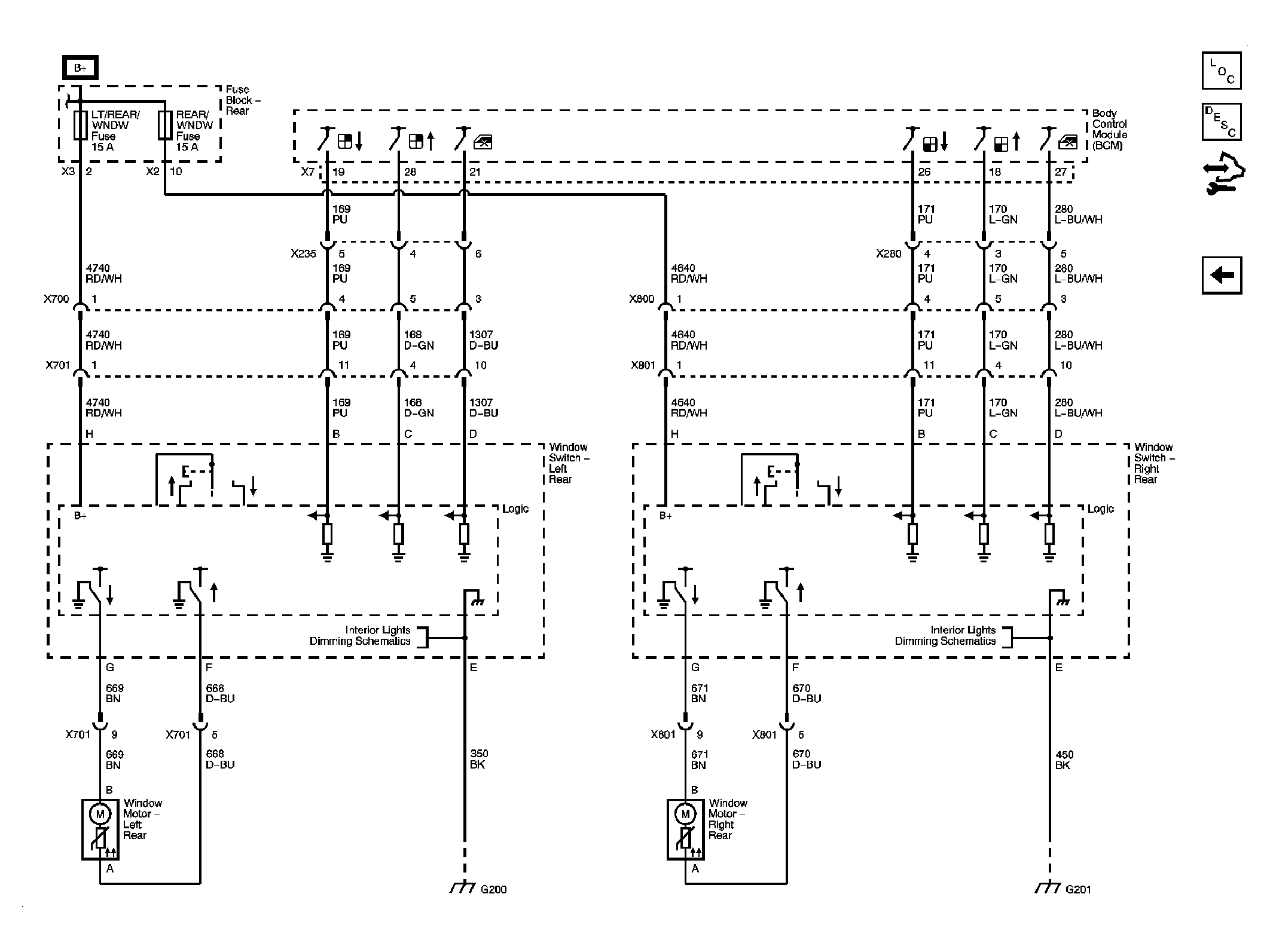

Fig 2: Moveable Window Schematic (Rear)
GM1923587Courtesy of GENERAL MOTORS CORP.
