Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

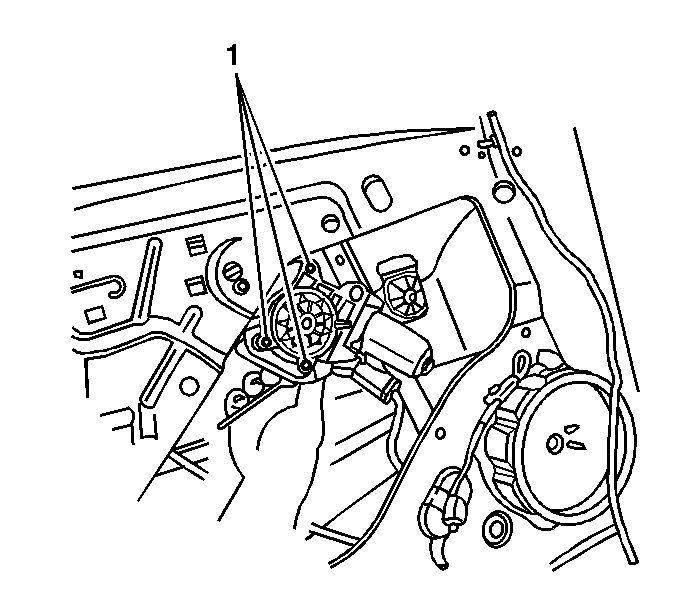

    Fig 1: Removing & Installing Front Door Window Regulator
    GM787980Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: There is a binding effect on the power window motor drive when the window is in the fully closed or open position.
  1. Partially open the window, if possible.
  2. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove the water deflector.
  4. Remove the screws (1) securing the power window motor to the window regulator.
  5. Remove the power window motor.
