Front Side Door Window Inner Weatherstrip Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

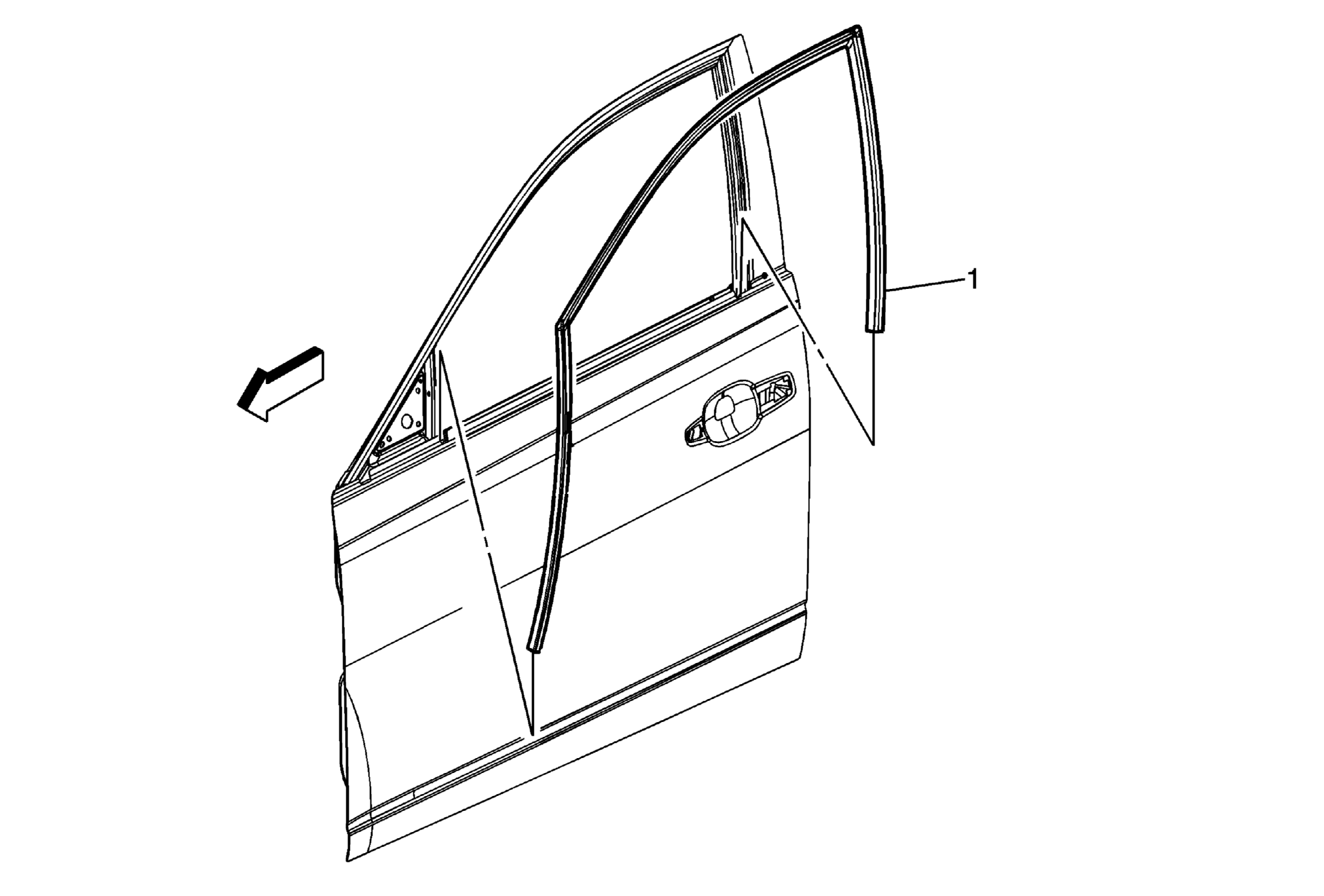

Fig 1: Front Side Door Window Inner Weatherstrip Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Lower the window to the full down position. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the window inner belt sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .
1	Front Side Door Window Inner Weatherstrip Procedure Remove the water deflector. Pull the window weatherstrip out of the door header. Removing the weatherstrip starting at the rear lower end, pull the inner window weatherstrip away from the door header. Install the weatherstrip at the upper, rear corner, install the inner window weatherstrip to the door pinchweld flange.

Callout

Component Name

Preliminary Procedures

Lower the window to the full down position.
Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the window inner belt sealing strip. Refer to Front Side Door Window Belt Inner Sealing Strip Replacement .

Front Side Door Window Inner Weatherstrip

Procedure

Remove the water deflector.
Pull the window weatherstrip out of the door header.
Removing the weatherstrip starting at the rear lower end, pull the inner window weatherstrip away from the door header.
Install the weatherstrip at the upper, rear corner, install the inner window weatherstrip to the door pinchweld flange.
