Front Side Door Window Belt Outer Sealing Strip Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

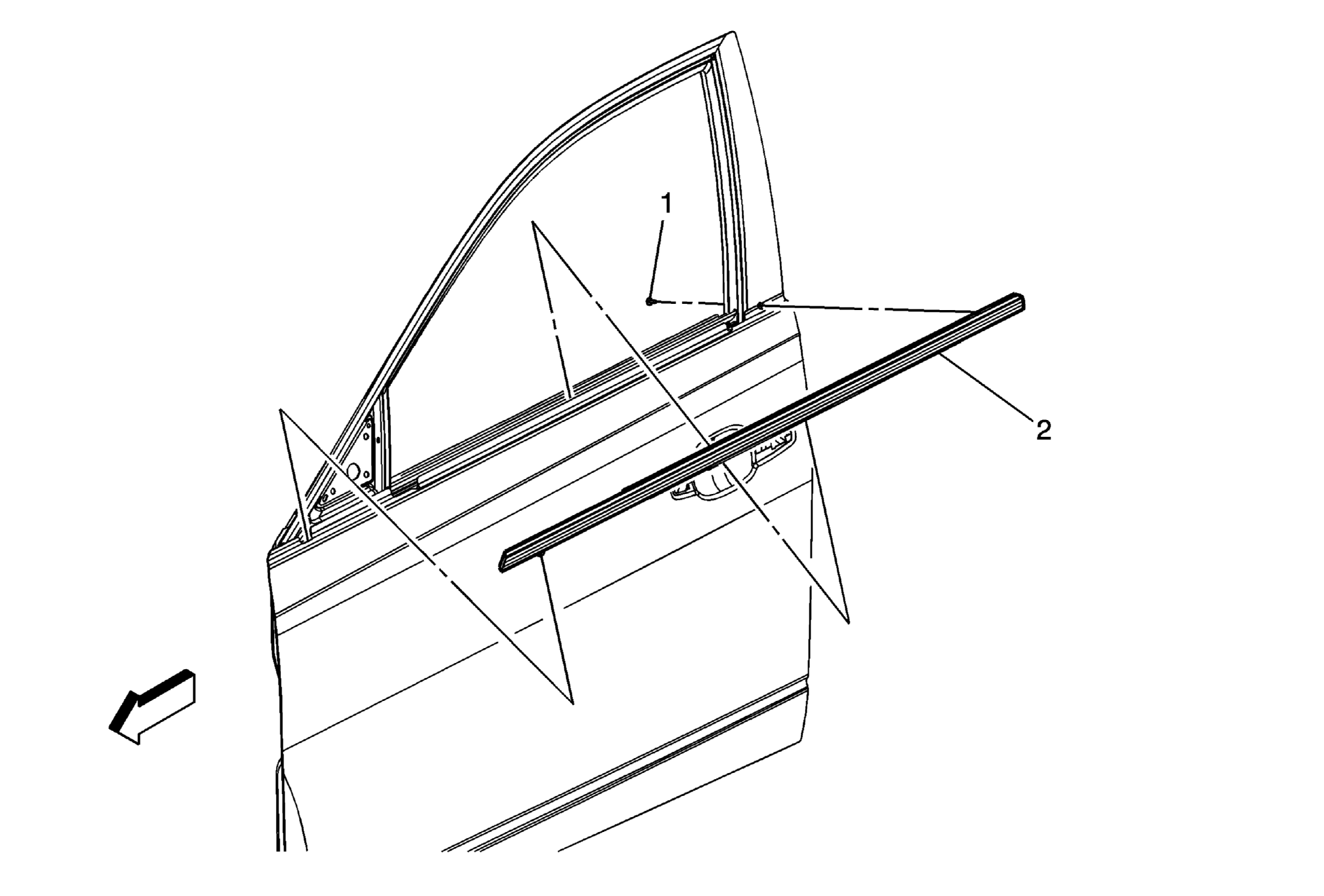

Fig 1: Front Side Door Window Belt Outer Sealing Strip Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the outside rearview mirror. Refer to Power Mirror Replacement .
1	Front Side Door Window Belt Outer Sealing Strip Screw NOTE: Refer to Fastener Notice . Tighten: 1.5 N.m (13 lb in) Tip: Lift upward to release front clip.
2	Front Side Door Window Belt Outer Sealing Strip Procedure Align the sealing strip to the door. Ensure that the end cap is flush to the door cutline. Rotate the sealing strip downward. Align the sealing strip clips to the slots in the door pinch-weld flange. Push the sealing strip downward to fully seat and secure the strip to the door.

Callout

Component Name

Preliminary Procedure:
Remove the outside rearview mirror. Refer to Power Mirror Replacement .

Front Side Door Window Belt Outer Sealing Strip Screw

NOTE: Refer to Fastener Notice .

Tighten: 1.5 N.m (13 lb in)

Tip: Lift upward to release front clip.

Front Side Door Window Belt Outer Sealing Strip

Procedure

Align the sealing strip to the door.
Ensure that the end cap is flush to the door cutline.
Rotate the sealing strip downward.
Align the sealing strip clips to the slots in the door pinch-weld flange.
Push the sealing strip downward to fully seat and secure the strip to the door.
