Starting and Charging Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Starting Schematic
GM1923761Courtesy of GENERAL MOTORS CORP.

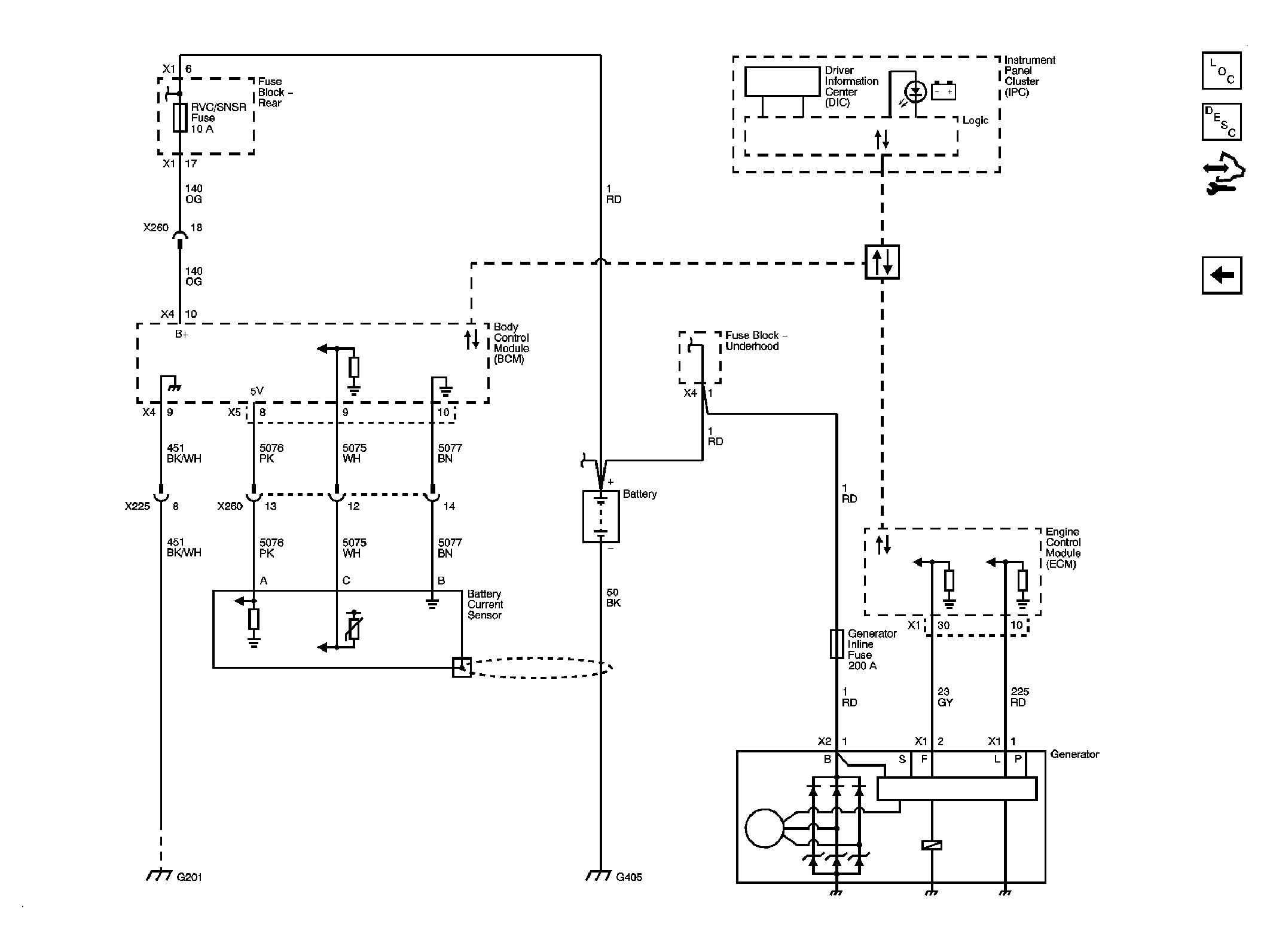

Fig 2: Charging Schematic
GM1923769Courtesy of GENERAL MOTORS CORP.
