Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

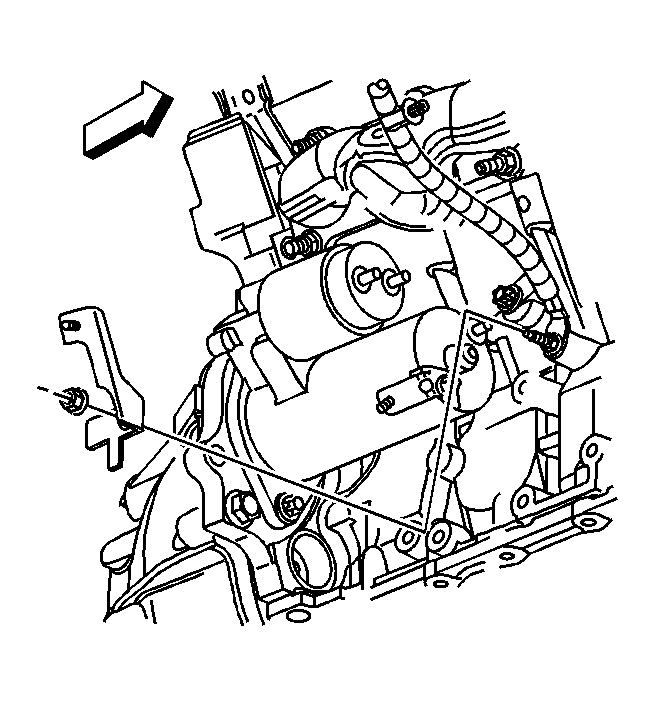

Fig 1: Locating Starter Heat Shield Mounting Bracket To Engine Block Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Install the starter heat shield bracket to the stud located at the engine block.

NOTE: Refer to Fastener Notice .

Install the nut securing the starter heat shield bracket to the engine block.
Tighten: Tighten the nut to 8 N.m (71 lb in).

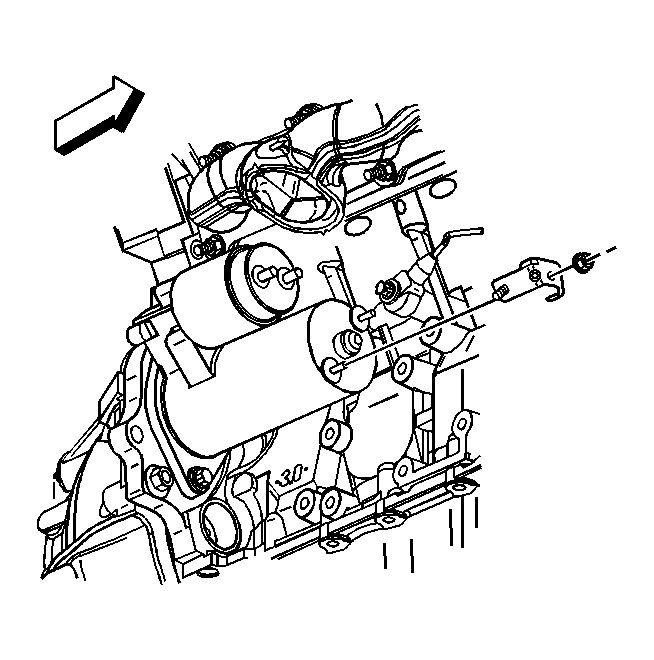

Fig 2: View Of Starter Heat Shield Mounting Bracket Retaining Nut

Courtesy of GENERAL MOTORS CORP.

Install the starter heat shield bracket to the stud located at the rear of the starter motor.
Install the nut securing the starter heat shield bracket to the starter.
Tighten: Tighten the nut to 8 N.m (71 lb in).

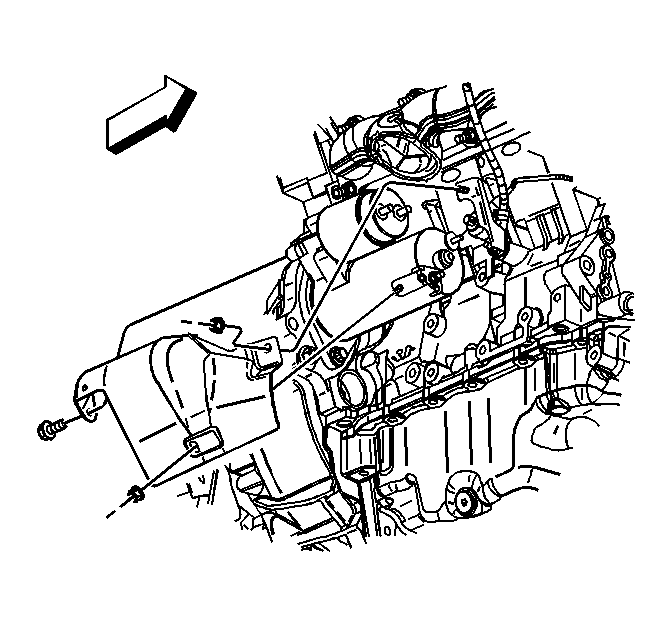

Fig 3: Aligning Starter Heat Shield To Starter Motor & Brackets

Courtesy of GENERAL MOTORS CORP.

Position the starter heat shield to the starter motor and brackets.
Install the bolt/nuts securing the starter heat shield to the starter motor and brackets.
Tighten: Tighten the bolt/nuts to 8 N.m (71 lb in).
Install the right catalytic converter. Refer to Catalytic Converter Replacement - Right Side .
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Side Post) .
