Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

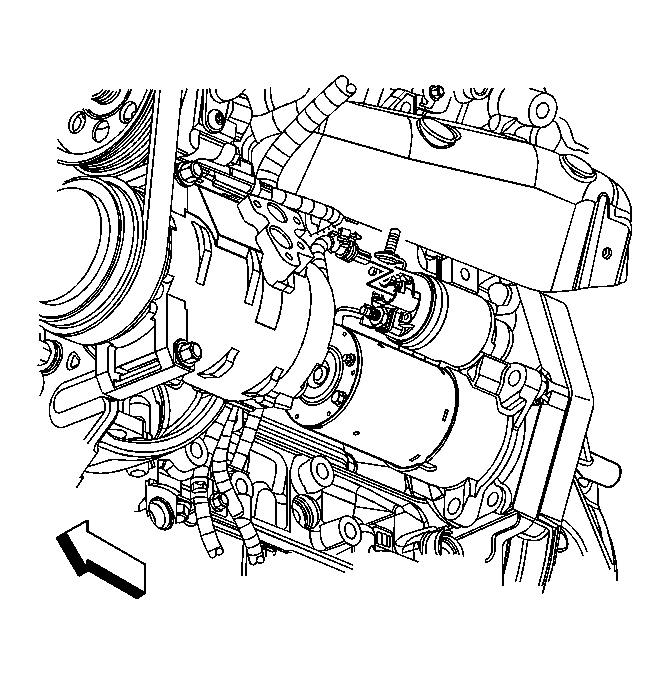

Fig 1: View Of Starter Motor

Courtesy of GENERAL MOTORS CORP.

Install the starter motor.

NOTE: Refer to Fastener Notice .

Install the starter motor mounting bolts.
Tighten: Tighten the starter motor mounting bolts to 50 N.m (37 lb ft).

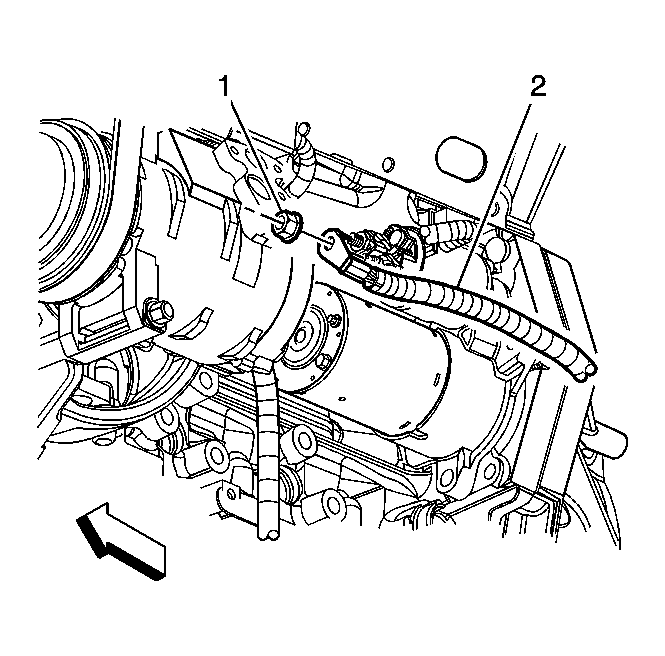

Fig 2: View Of Starter Terminal Nut & Battery Positive Cable

Courtesy of GENERAL MOTORS CORP.

Install the battery positive cable (2) to the starter and install the starter terminal nut (1).
Tighten: Tighten the battery positive cable nut to 13 N.m (115 lb in).

Fig 3: View Of Starter Solenoid Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the electrical connector to the starter solenoid.
Install the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side .
