Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

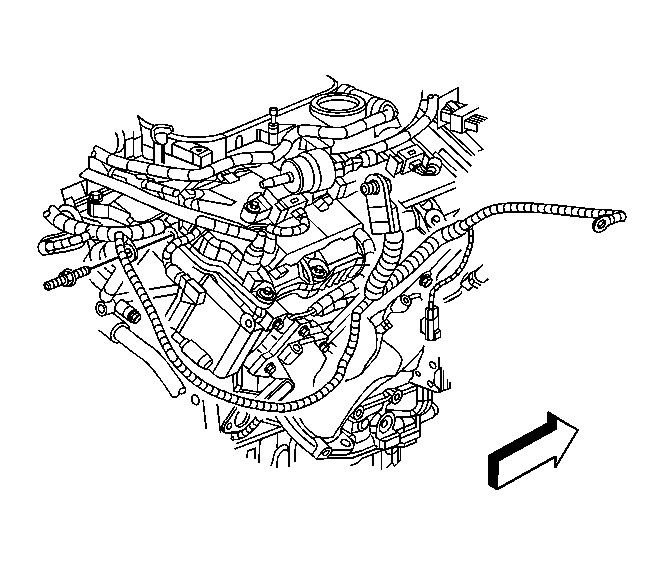

    Fig 1: Identifying Stud Securing Battery Negative Cable To Engine Block
    GM1522523Courtesy of GENERAL MOTORS CORP.
  1. Install and position the negative battery cable.
    2. NOTE: Refer to Fastener Notice .
  2. Install the negative battery cable to engine block stud.

    Tighten:  Tighten the stud to 50 N.m (37 lb ft).

    3. Fig 2: View Of Battery Area Mounts And Connectors
    GM772418Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt (1) securing the negative battery cable to the side rail.

    Tighten:  Tighten the bolt to 36 N.m (27 lb ft).

  4. Connect the body harness connector (3) to the negative battery cable.

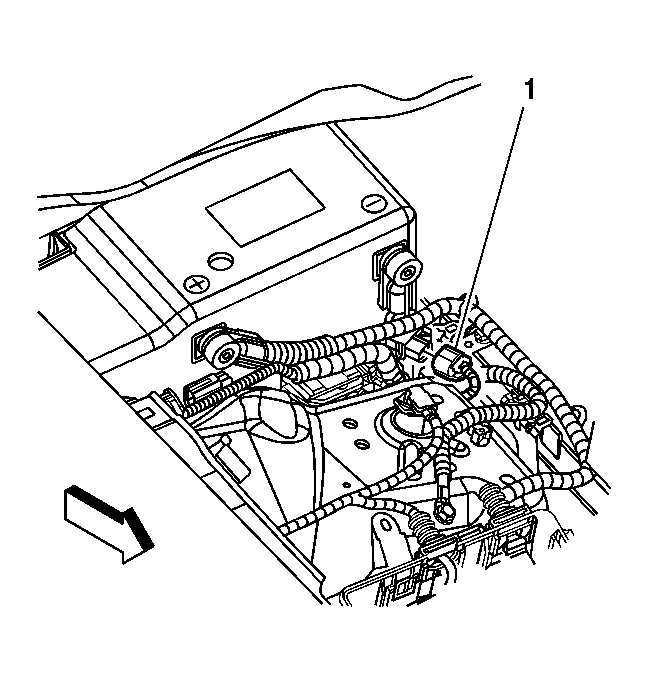

    5. Fig 3: Instrument Panel (I/P) Harness Electrical Connector
    GM1484712Courtesy of GENERAL MOTORS CORP.
  5. Connect the I/P harness electrical connector (1) to the battery current sensor.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Side Post) .
