Disconnect Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

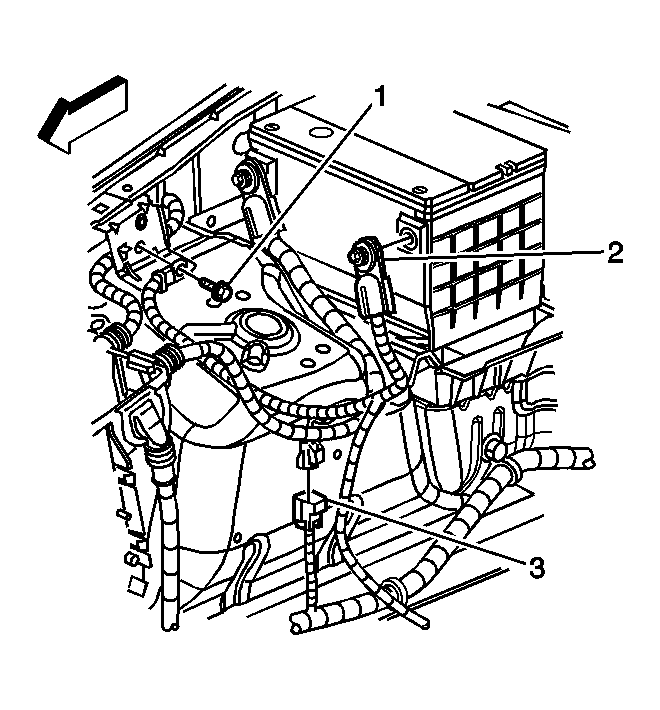

    Fig 1: View Of Battery Area Mounts And Connectors
    GM772418Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution .
  1. Turn OFF all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Disconnect the battery negative cable (2) from the battery.
