Tire Pressure Monitoring Receiver Replacement (RPO UH3)

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

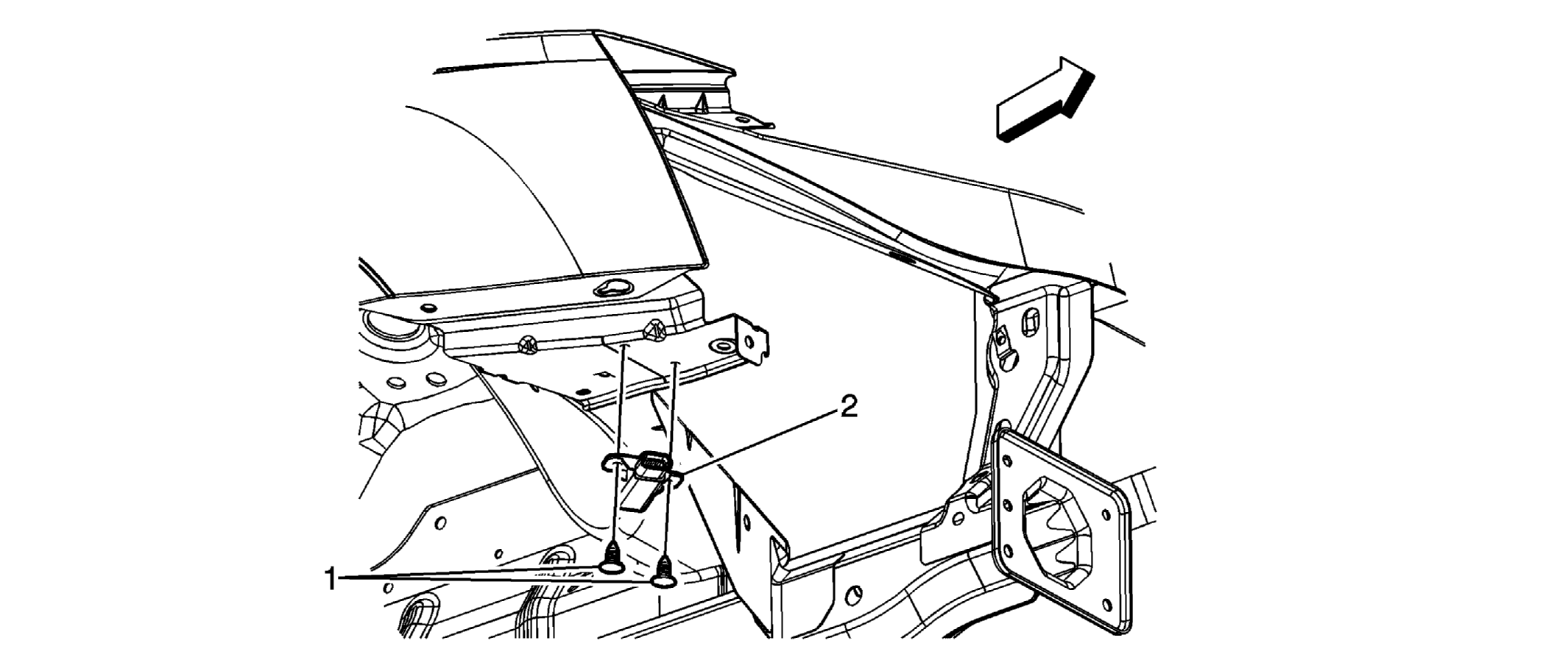

Fig 1: Tire Pressure Monitoring Receiver Replacement (RPO UH3)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the LH or RH wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Pin-Type Retainer (Qty: 2)
2	Tire Pressure Monitor Receiver Assembly Tip: Disconnect the electrical connector. Relearn the tire pressure monitoring system. Refer to Tire Pressure Sensor Learn (W/O UH3) or Tire Pressure Sensor Learn (W/UH3) .

Callout

Component Name

Preliminary Procedure

Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the LH or RH wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Pin-Type Retainer (Qty: 2)

Tire Pressure Monitor Receiver Assembly
Tip:

Disconnect the electrical connector.
Relearn the tire pressure monitoring system. Refer to Tire Pressure Sensor Learn (W/O UH3) or Tire Pressure Sensor Learn (W/UH3) .
