Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

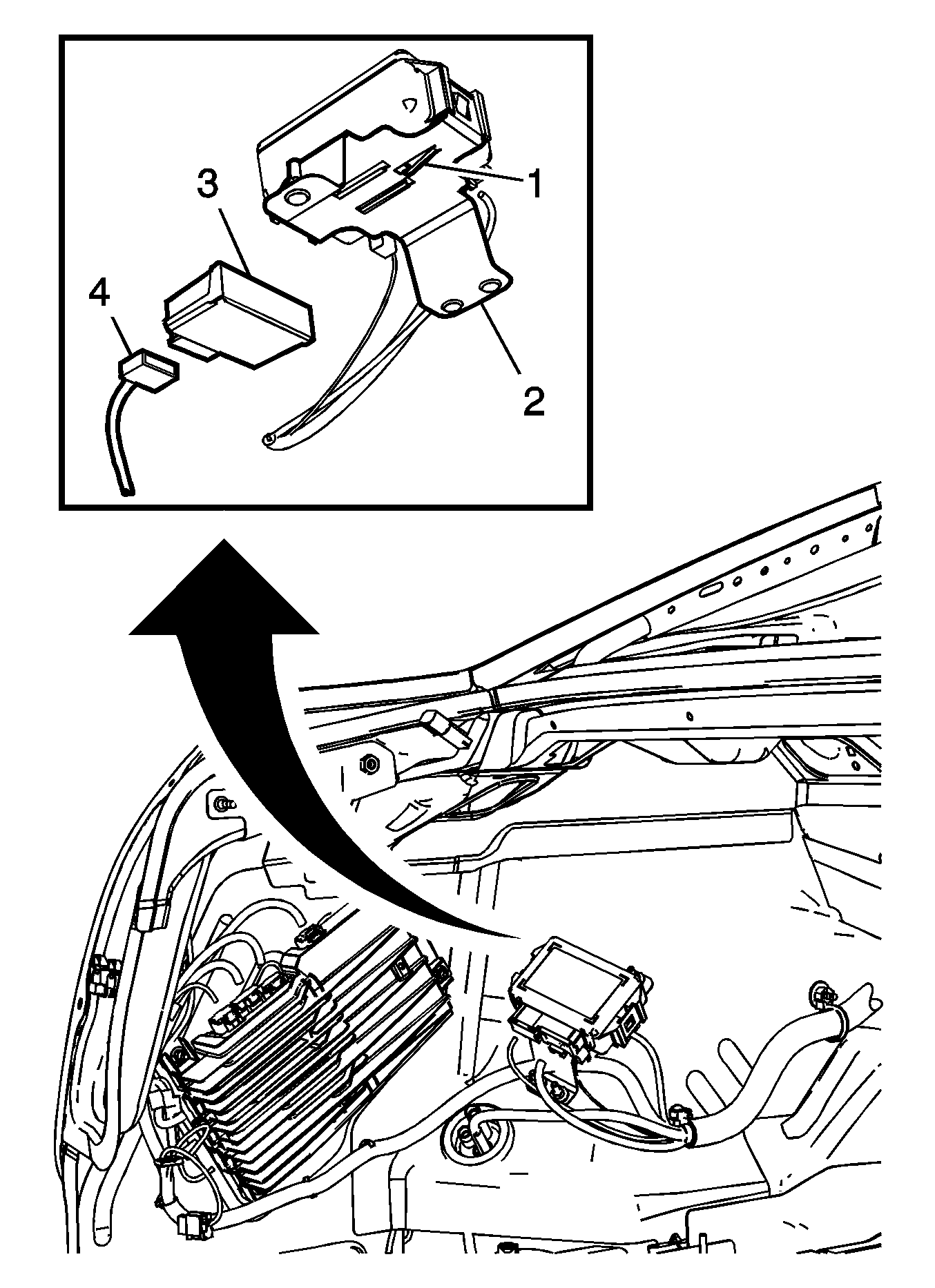

    Fig 1: Locating Tire Pressure Indicator Module
    GM1992109Courtesy of GENERAL MOTORS CORP.
  1. Install electrical connector (4) in the TPIM (3).
  2. Install the TPIM (3) on the mounting bracket (2).
  3. Using a flatbladed screw driver, ensure that the lock tab (1) is positioned properly to hold the TPIM (3) in place.
  4. Install the left rear compartment trim. Refer to Rear Compartment Side Trim Panel Replacement .
