Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

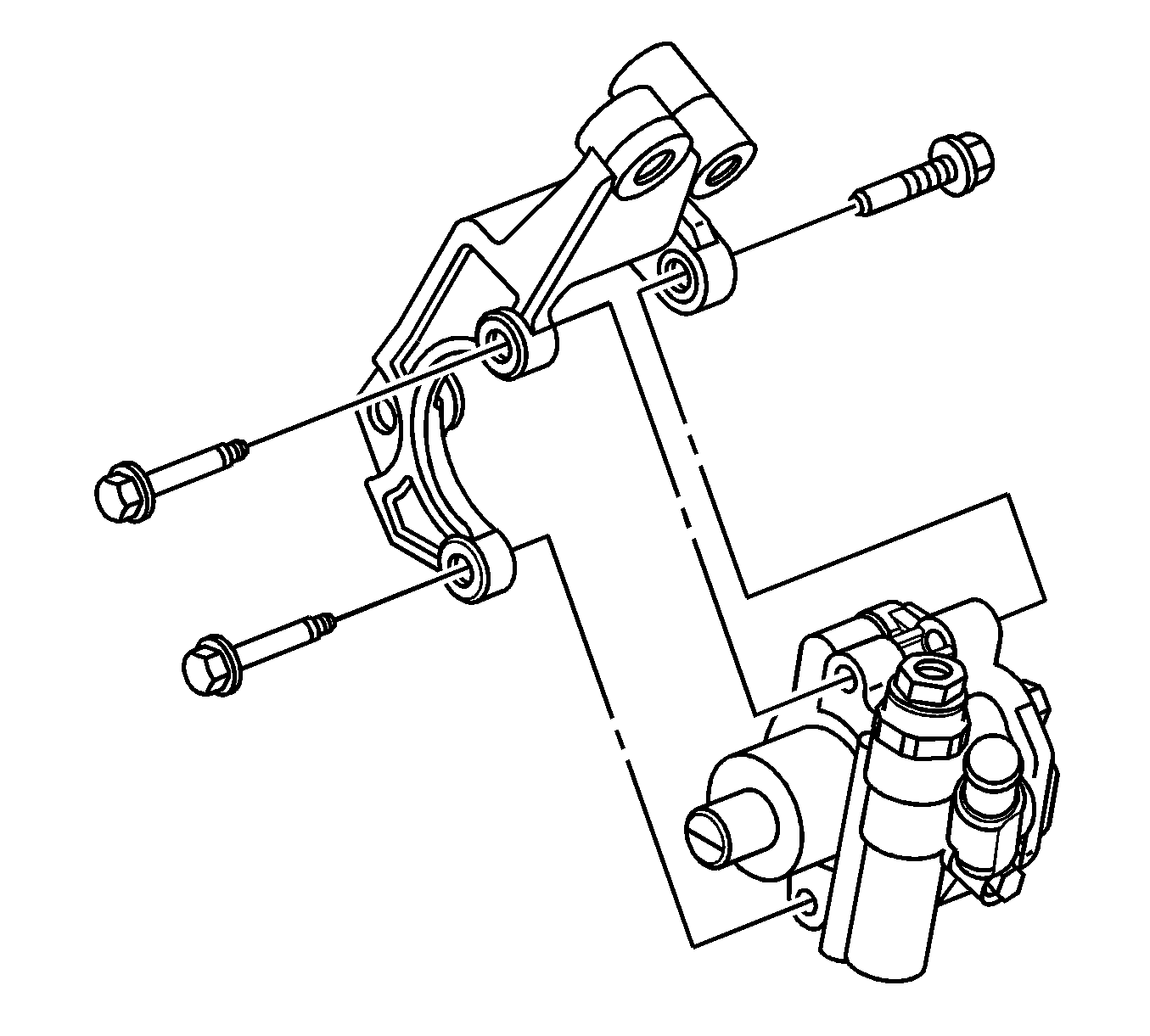

    Fig 1: View Of Power Steering Pump Bracket - LY7
    GM888285Courtesy of GENERAL MOTORS CORP.
  1. Align the power steering pump to the power steering pump bracket.
    2. NOTE: Refer to Fastener Notice .
  2. Install the power steering pump bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  3. Install the power steering pump. Refer to Power Steering Pump Replacement .
