Wiper/Washer Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

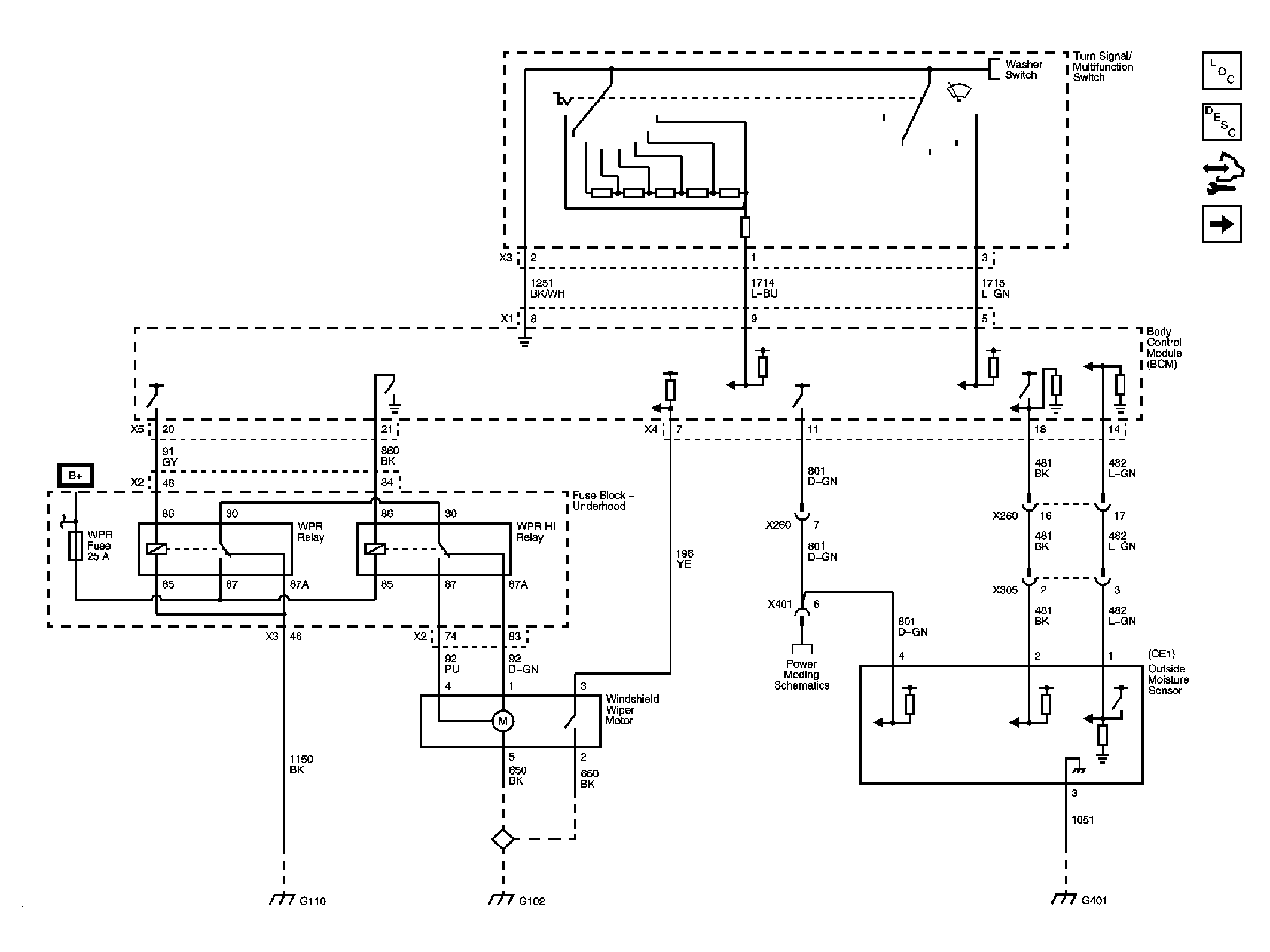

Fig 1: Wiper/Washer Schematic (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

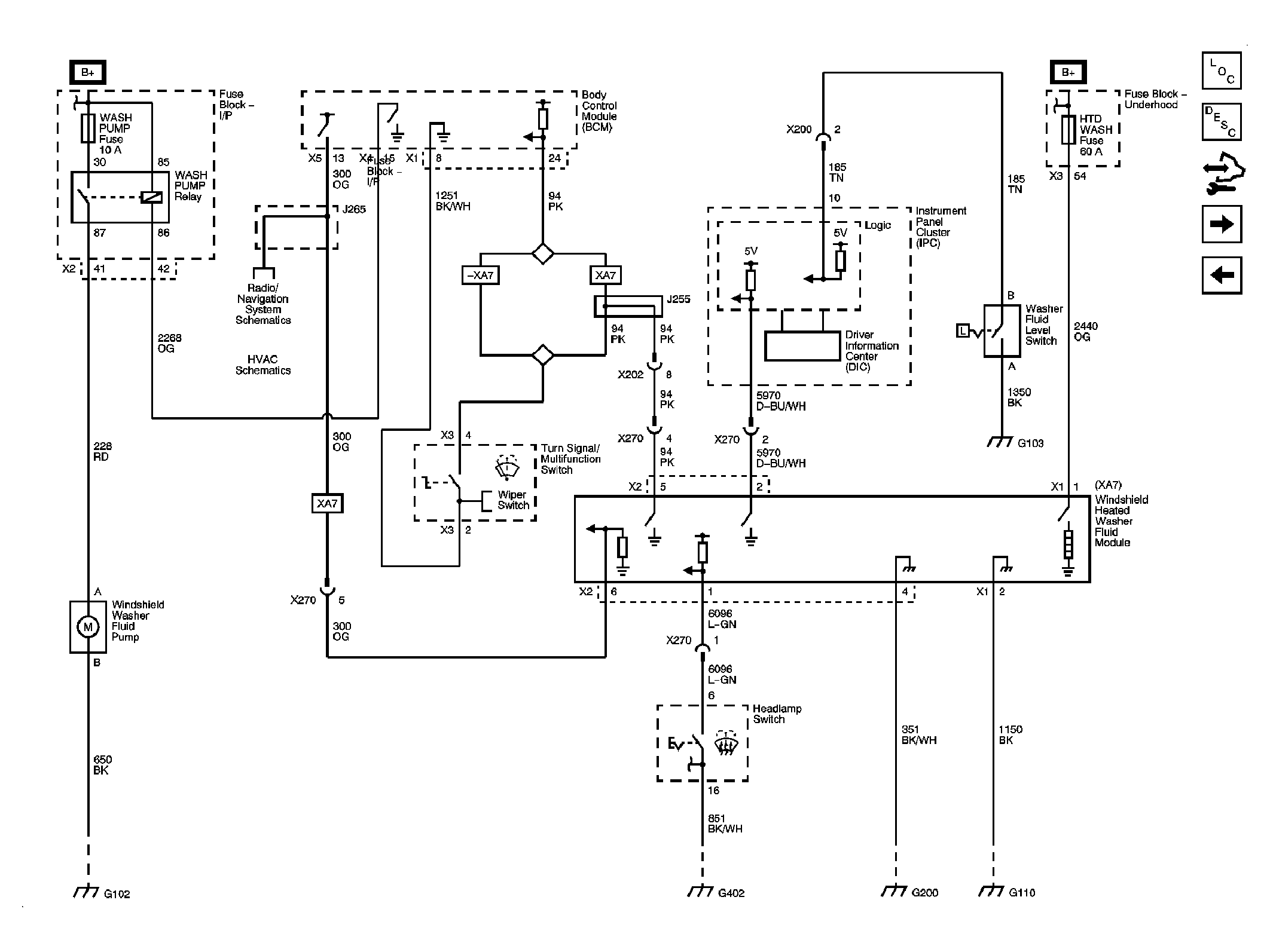

Fig 2: Wiper/Washer Schematic (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Headlamp Washers Schematic (CE4)

Courtesy of GENERAL MOTORS CORP.
