Windshield Wiper Blade Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

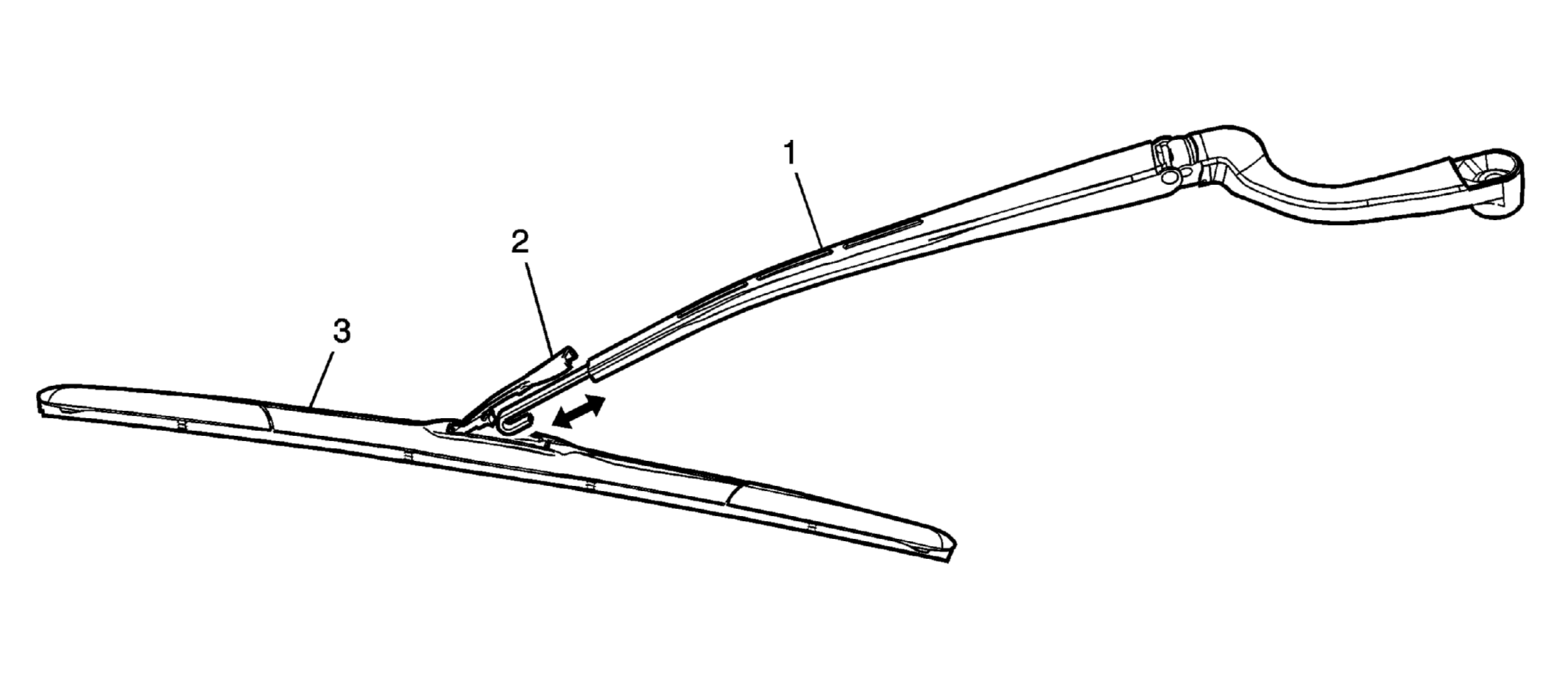

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lift the wiper arm up off the windshield to the service up position. |
|
| 1 | Windshield Wiper Arm |
| 2 | Windshield Wiper Arm Blade Lock Tip: Disengage the wiper blade lock from the wiper arm. |
| 3 | Windshield Wiper Arm Blade Tip: Pull the wiper blade rearward to release the blade from the wiper arm sheep hook. |
