Windshield Washer Solvent Heater Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

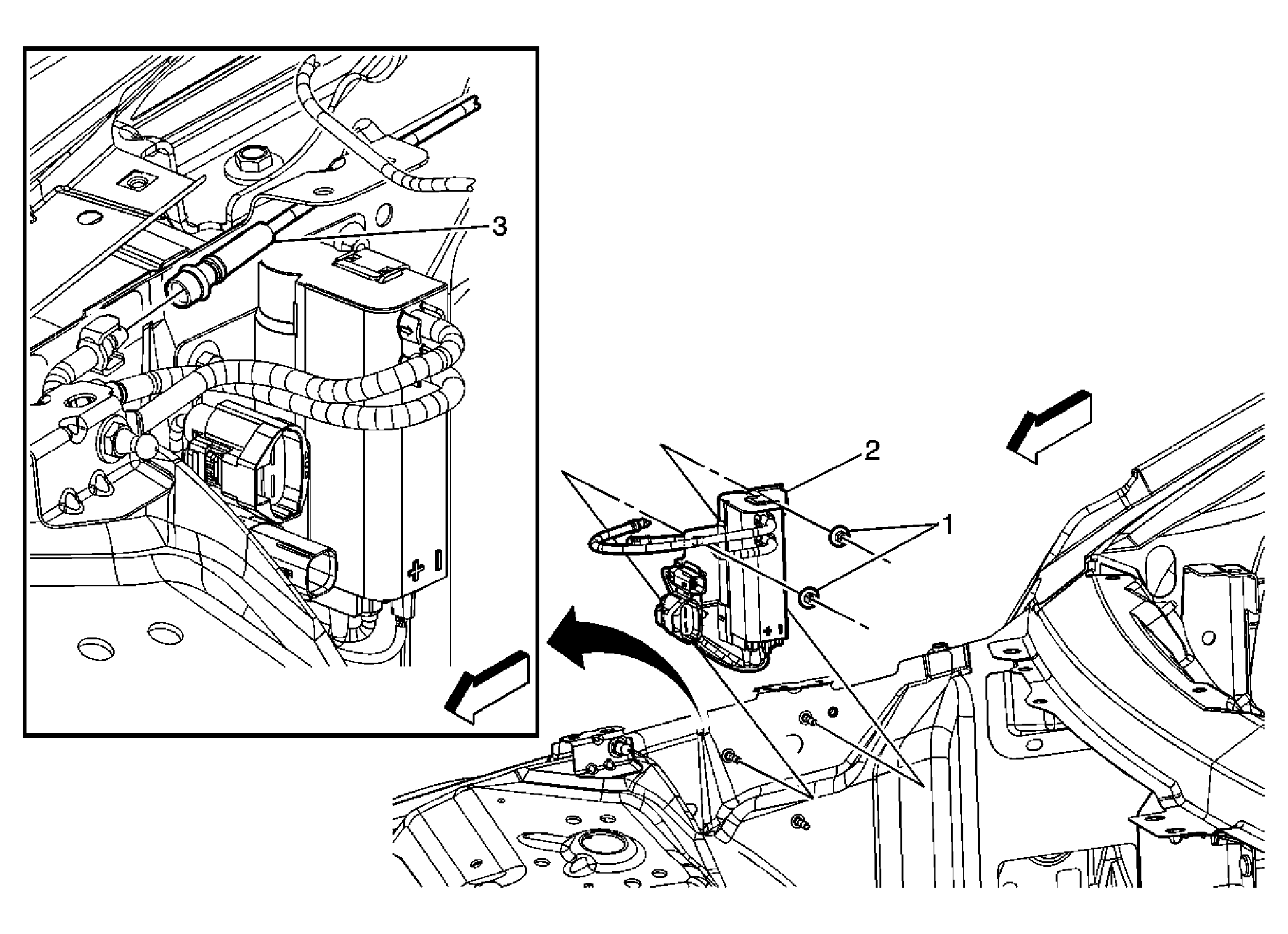

Fig 1: Windshield Washer Solvent Heater Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Open and support the hood. Remove the front compartment side sight shield on the passenger side of the engine compartment. Place a clean suitable container under the vehicle to contain any windshield washer fluid loss when the washer hoses are disconnected. Disconnect the 2 electrical connectors at the windshield washer solvent heater assembly.
1	Windshield Washer Solvent Heater Bracket Nut (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Windshield Washer Solvent Heater Assembly
3	Windshield Washer Solvent Hose Tip: Disconnect the hose and the windshield washer pump hose connection just below the windshield washer hose.
