Windshield Washer Nozzle Hose Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

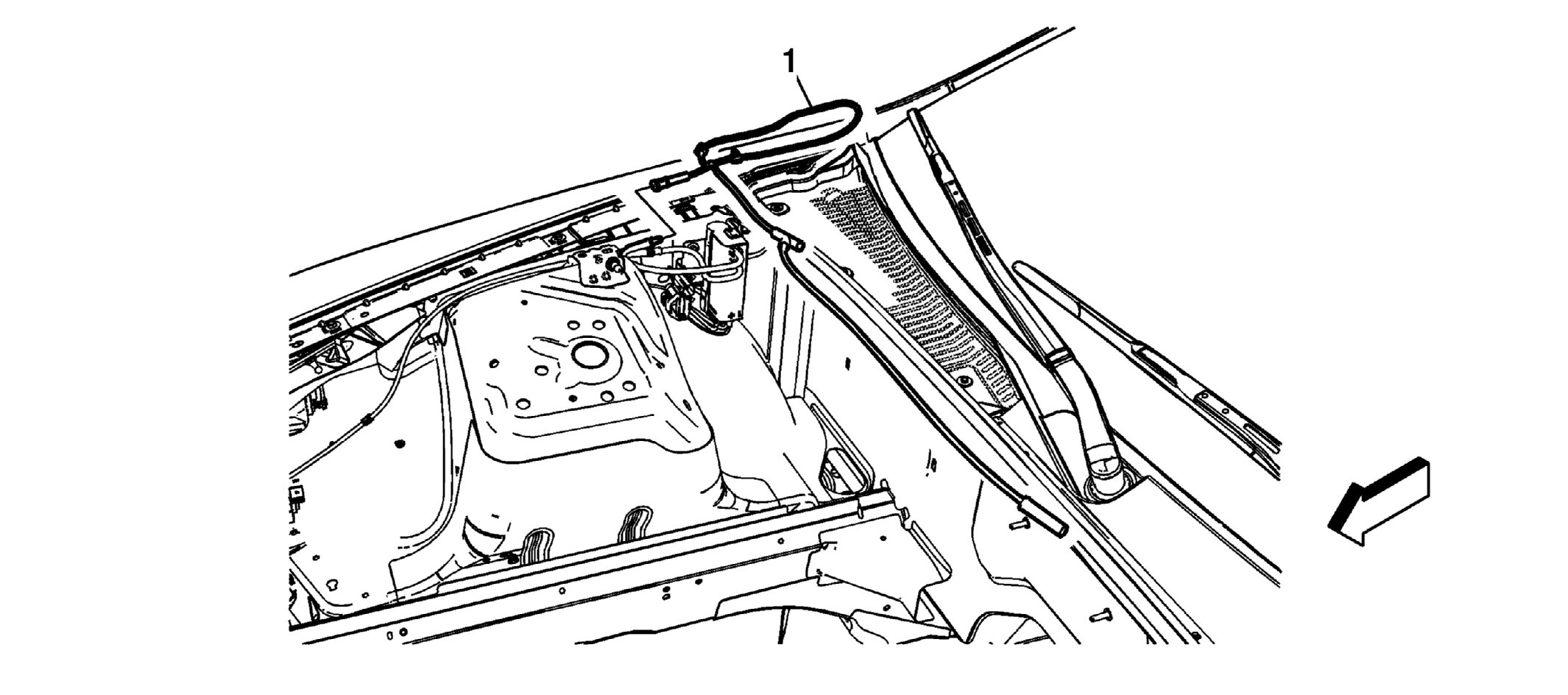

Fig 1: Windshield Washer Nozzle Hose Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open and support the hood. Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement . Remove the hood insulator in order to access the windshield washer nozzle hose connections. Refer to Hood Insulator Replacement . Disconnect the windshield washer hose from the washer nozzles.
1	Windshield Washer Nozzle Hose Procedure Disconnect the windshield washer hose from the windshield washer solvent heater connection (if equipped). Disengage the two retainers from the lower and upper hood hinge. Remove the windshield washer hose from around the hood hinge. Remove the hose from the vehicle.

Callout

Component Name

Preliminary Procedure

Open and support the hood.
Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
Remove the hood insulator in order to access the windshield washer nozzle hose connections. Refer to Hood Insulator Replacement .
Disconnect the windshield washer hose from the washer nozzles.

Windshield Washer Nozzle Hose

Procedure

Disconnect the windshield washer hose from the windshield washer solvent heater connection (if equipped).
Disengage the two retainers from the lower and upper hood hinge.
Remove the windshield washer hose from around the hood hinge.
Remove the hose from the vehicle.
