Headlamp Washer Nozzle Assembly Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

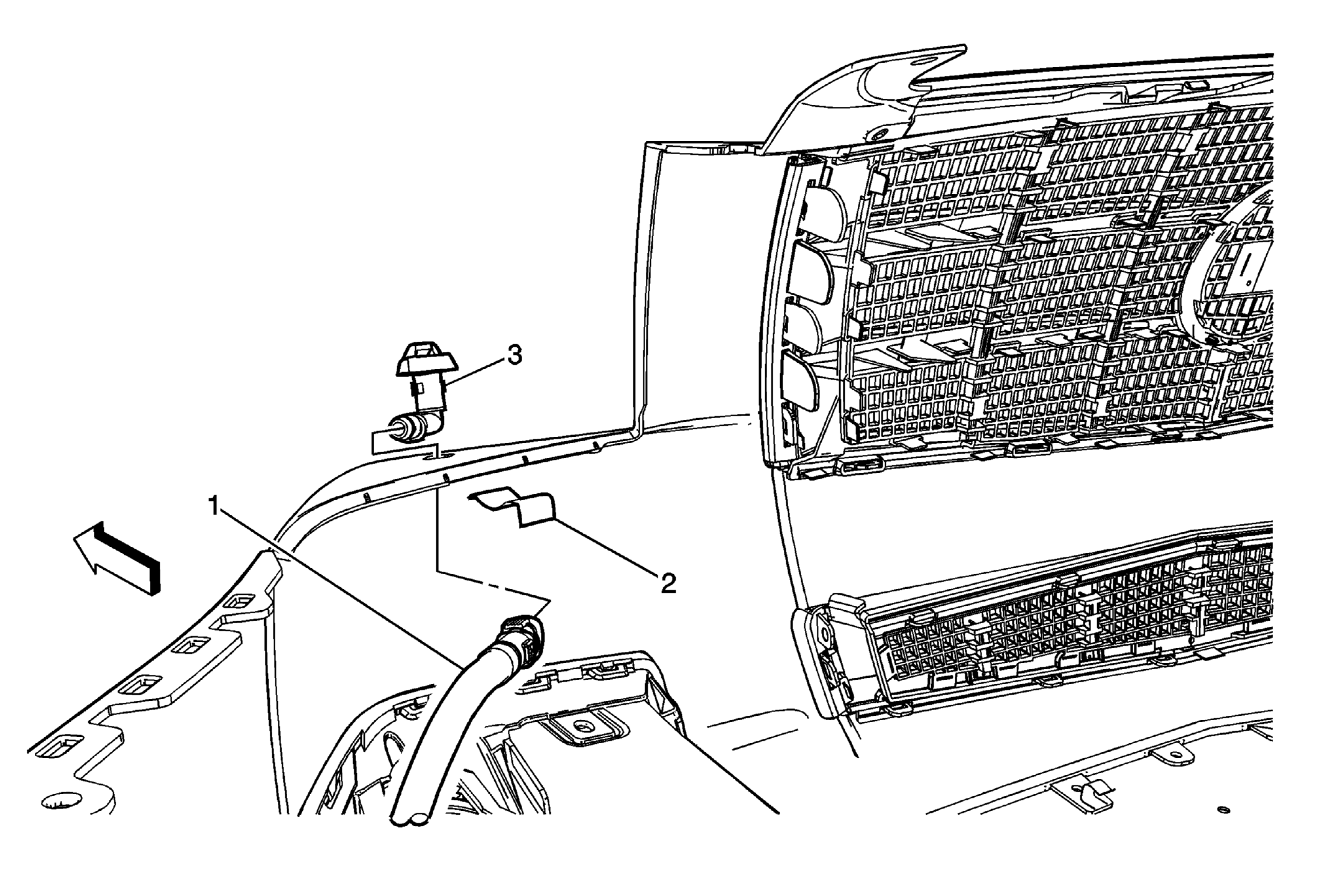

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Headlamp Washer Hose Assembly Tip: Disengage the retention clip on the hose from the headlamp washer nozzle. |
| 2 | Headlamp Washer Nozzle Assembly Clip Tip: Slide the clip from under the headlamp washer nozzle. |
| 3 | Headlamp Washer Nozzle Hole Cover Refer to Headlamp Washer Nozzle Hole Cover Replacement (CE4) . |
| 4 | Headlamp Washer Nozzle Assembly Tip: Remove the nozzle up through the front bumper fascia hole opening. |
