Air Inlet Grille Panel Side Seal Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

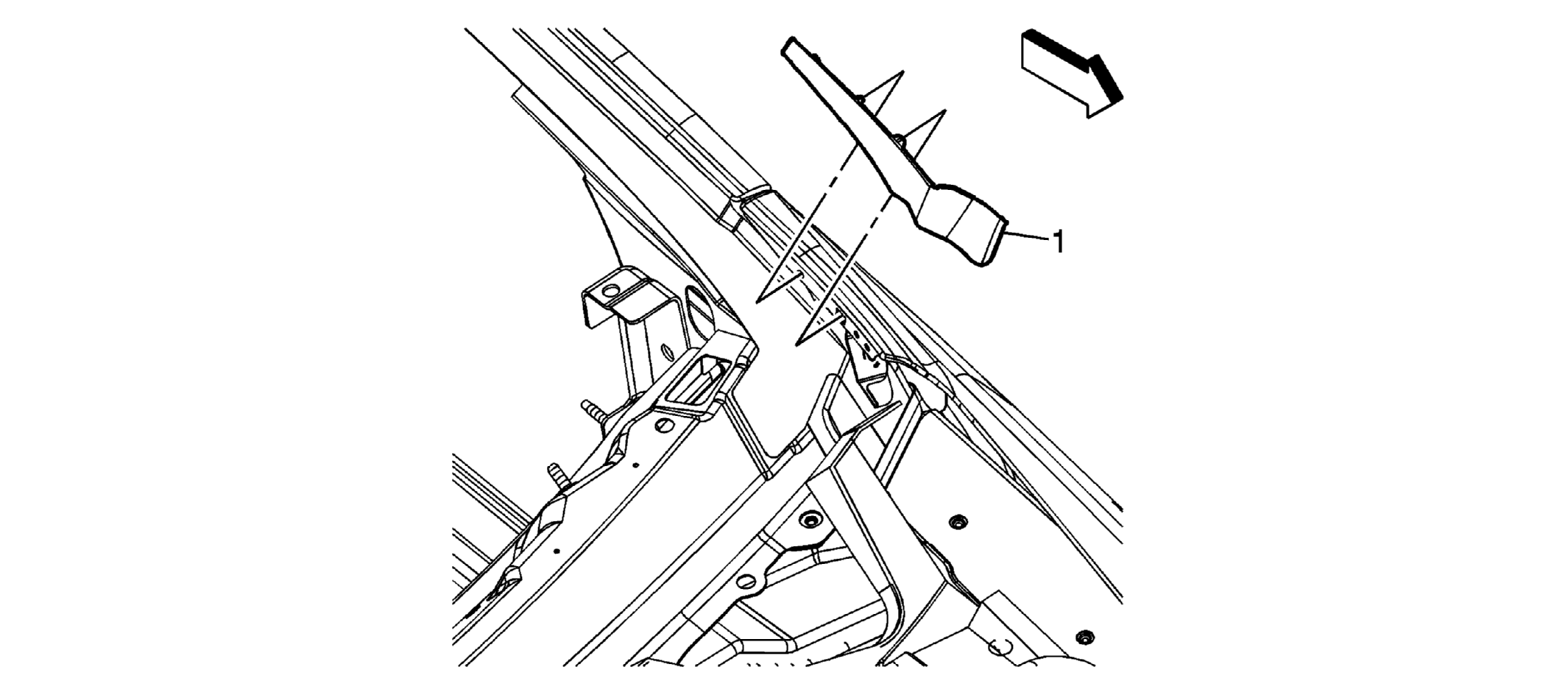

Fig 1: Air Inlet Grille Panel Side Seal Replacement
GM1912995Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Open and support hood in order to access the air inlet grille panel side seal.
1 Air Inlet Grille Panel Side Seal

Procedure

  1. Release the tabs securing the air inlet grille panel side seal to the rear upper fender flange.
  2. Disengage the rearward edge of the seal from under the top edge of the fender flange.
