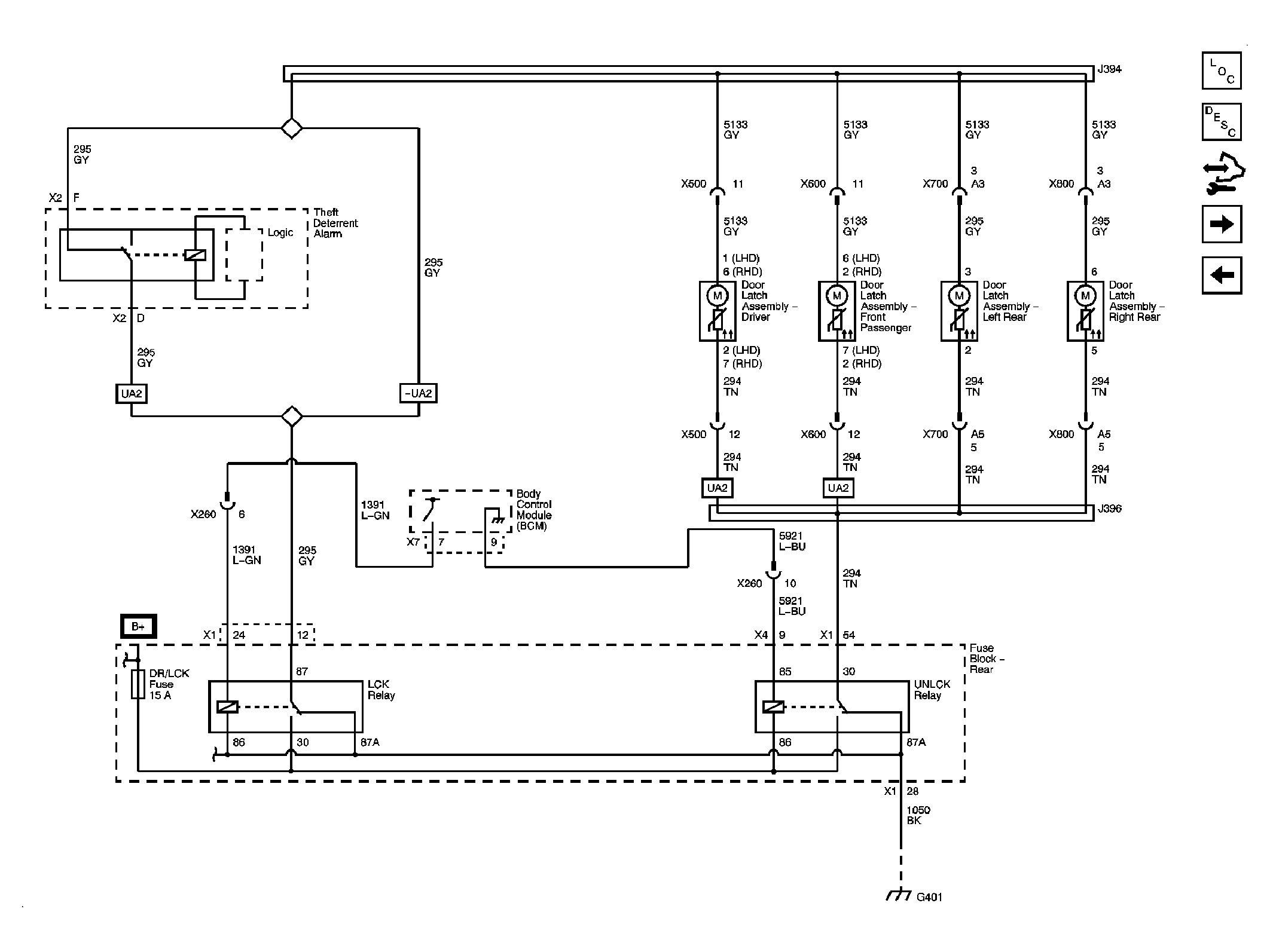

Fig 1: Door Lock/Indicator AXC/AXE Schematic (1 of 4)
Courtesy of GENERAL MOTORS CORP.

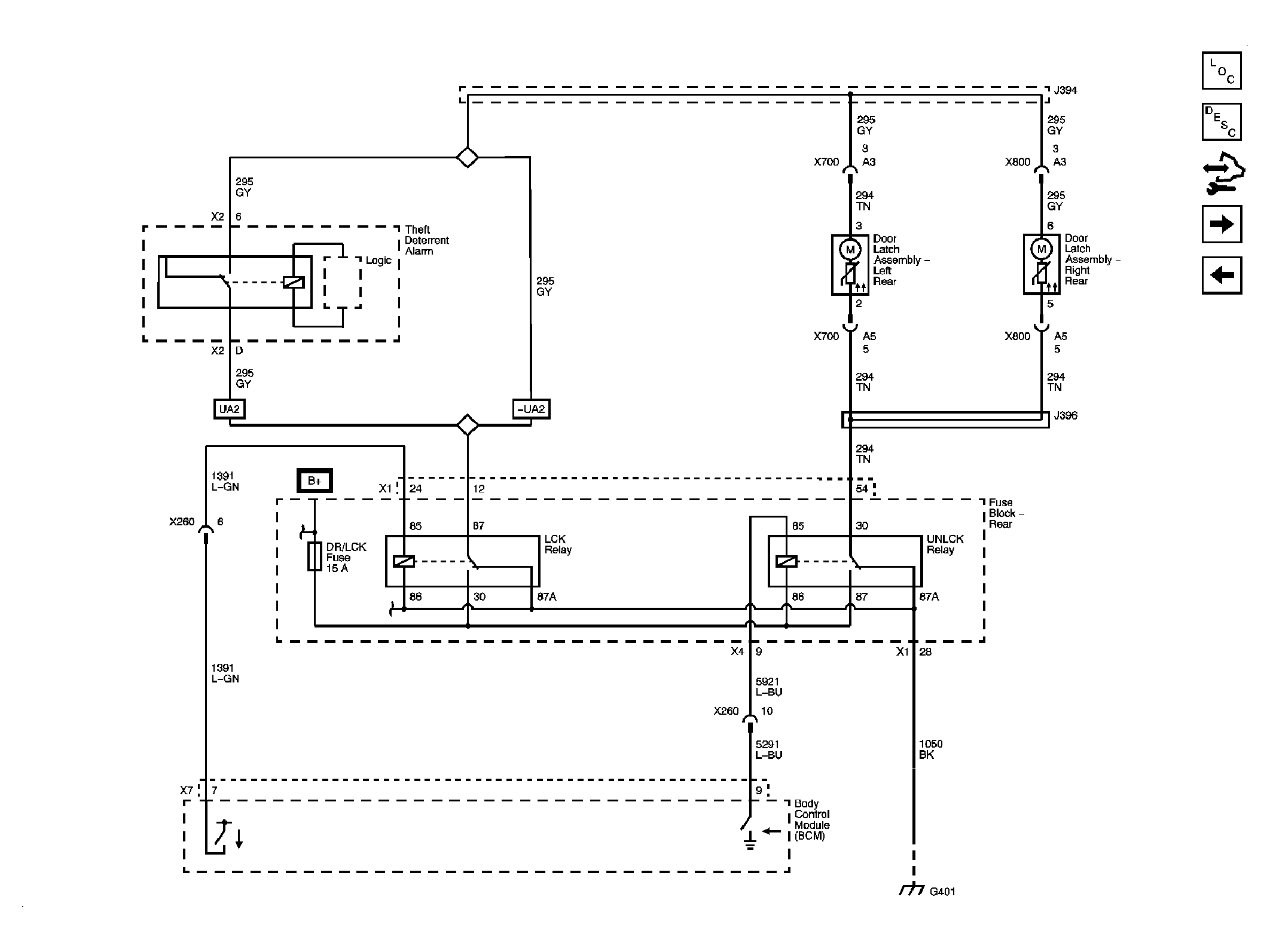

Fig 2: Door Lock/Indicator AXC/AXE Schematic (2 of 4)
Courtesy of GENERAL MOTORS CORP.

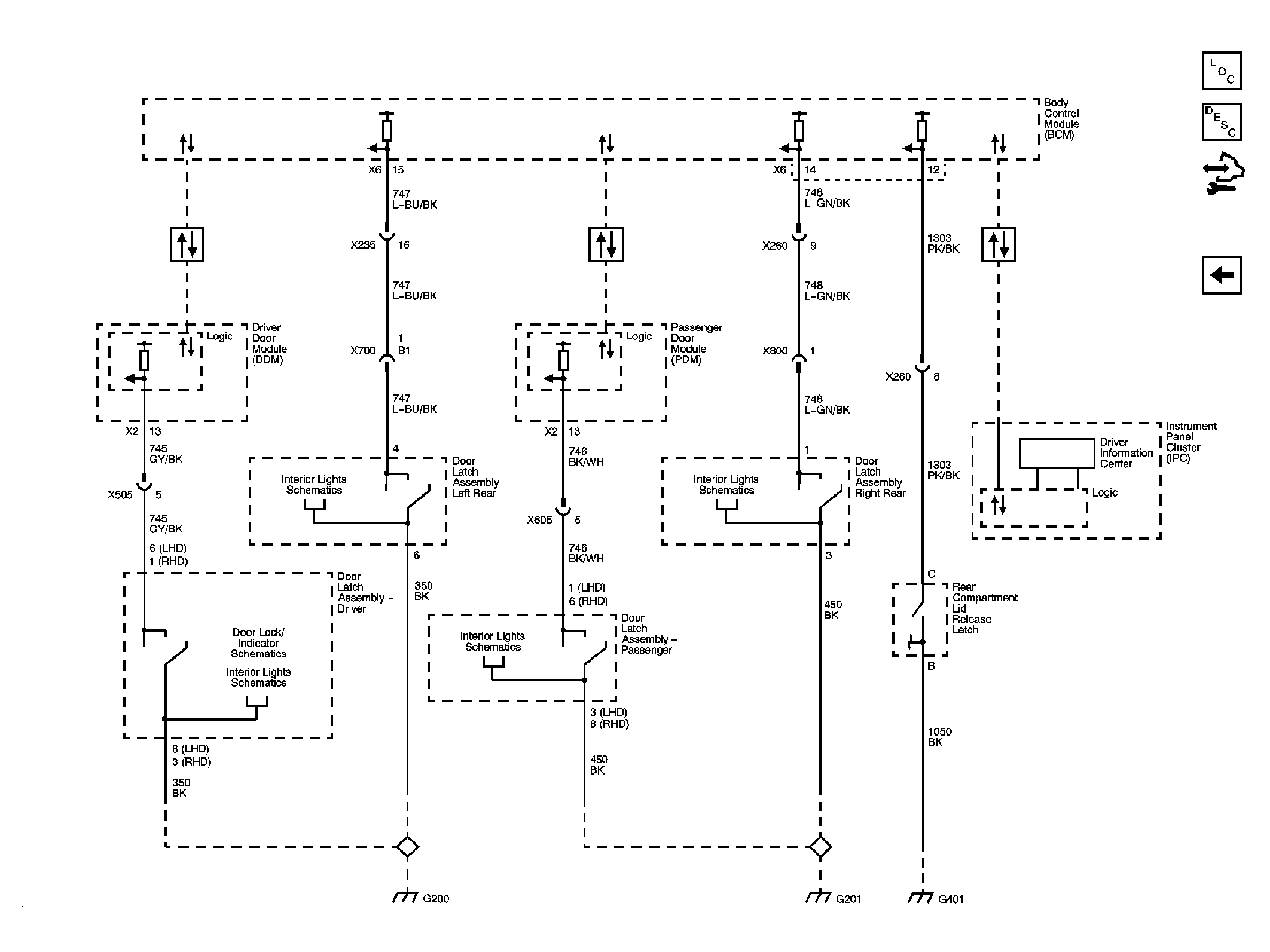

Fig 3: Door Lock/Indicator AXC/AXE Schematic (3 of 4)
Courtesy of GENERAL MOTORS CORP.

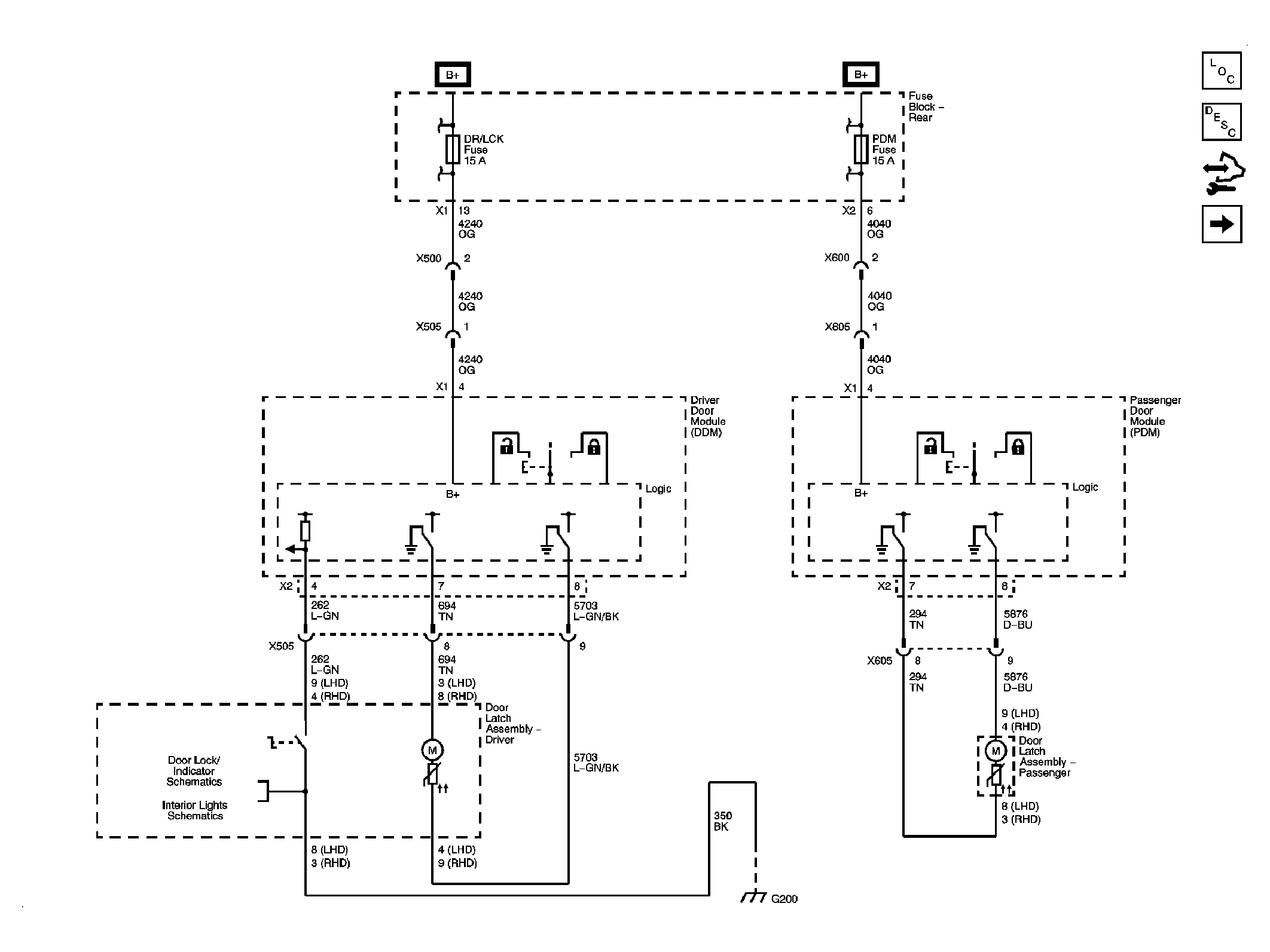

Fig 4: Door Lock/Indicator AXC/AXE Schematic (4 of 4)
