Rear Compartment Lid Switch Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

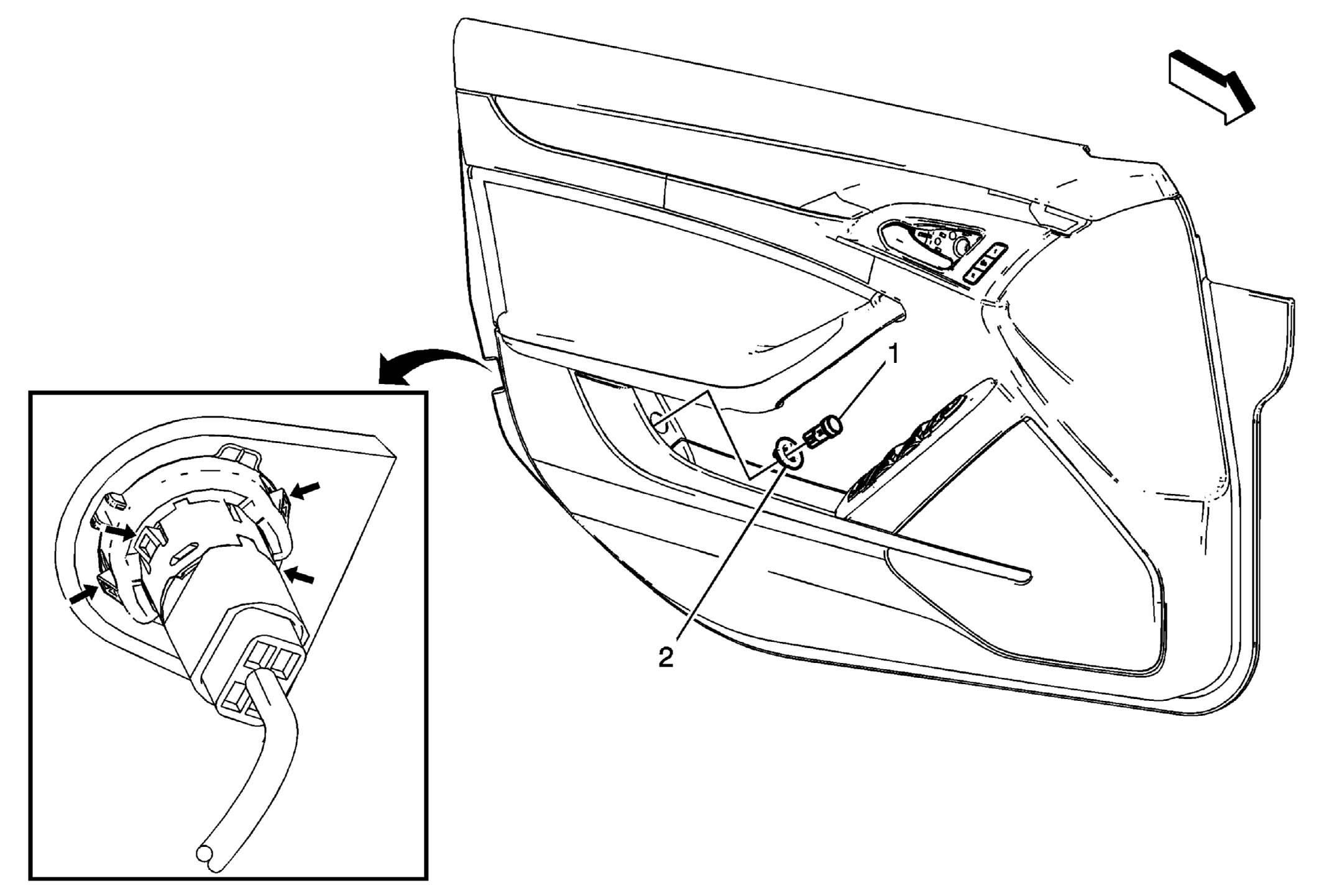

Fig 1: Rear Compartment Lid Switch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the driver door panel trim. Refer to Front Side Door Trim Panel Replacement .
1	Rear Compartment Lid Release Switch Procedure Remove the foam insulator to access the switch and bezel. Disconnect the electrical connector. Push in on the integral tabs from the inside of the door trim panel and push the switch out through the bezel.
2	Rear Compartment Lid Release Switch Bezel Procedure: Push in on the integral tabs from the inside of the door trim panel and push the switch bezel out through the door trim panel.

Callout

Component Name

Preliminary Procedures:
Remove the driver door panel trim. Refer to Front Side Door Trim Panel Replacement .

Rear Compartment Lid Release Switch

Procedure

Remove the foam insulator to access the switch and bezel.
Disconnect the electrical connector.
Push in on the integral tabs from the inside of the door trim panel and push the switch out through the bezel.

Rear Compartment Lid Release Switch Bezel
Procedure:
Push in on the integral tabs from the inside of the door trim panel and push the switch bezel out through the door trim panel.
