Front Side Door Outside Handle Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

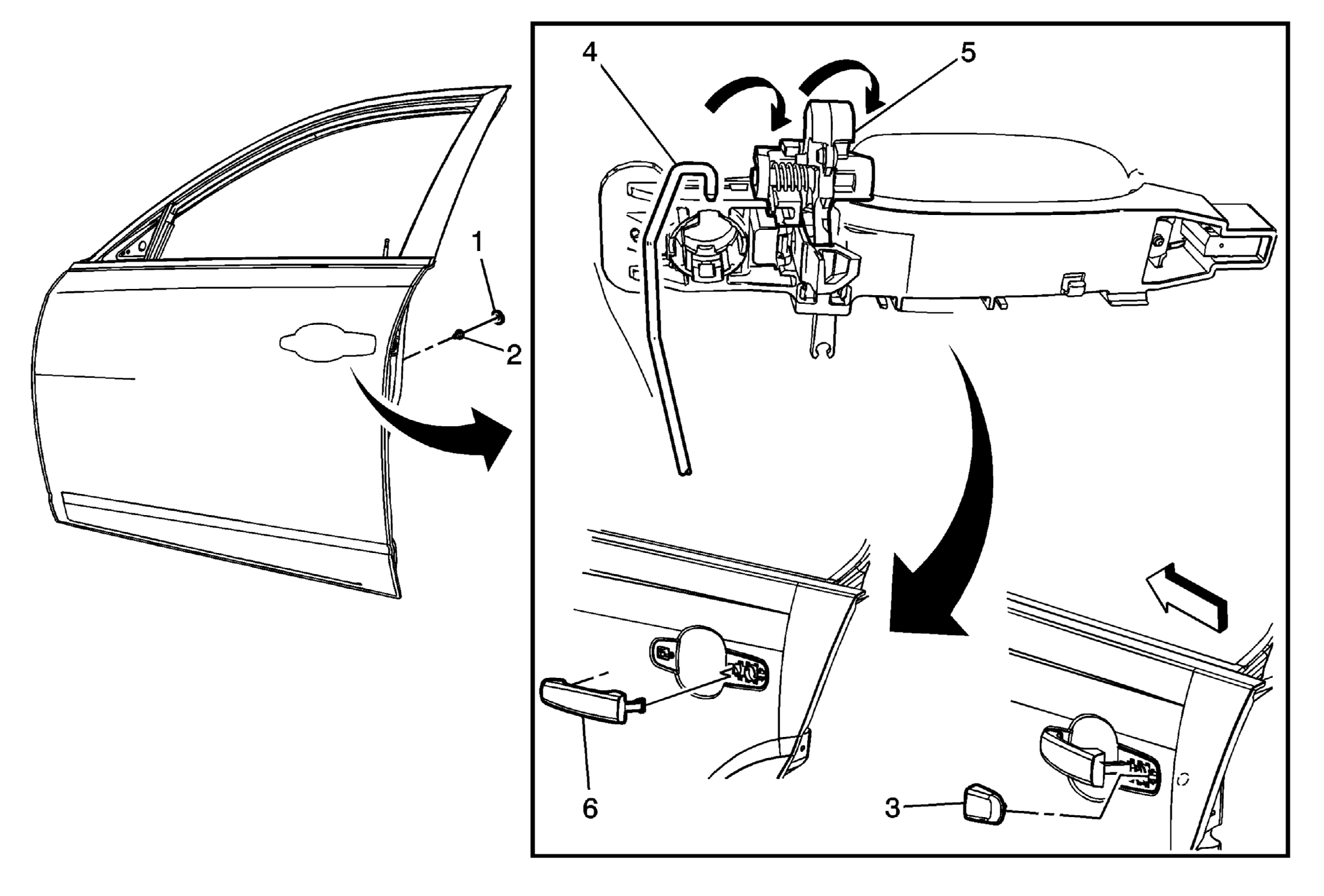

Fig 1: Front Side Door Outside Handle Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Outside Door Handle Bolt Access Plug Tip: Use a plastic flat-bladed tool to remove.
2	Front Side Door Outside Handle Bolt NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
3	Front Door Outside Handle Cap
4	Front Door Outside Handle Cap Gasket
5	Front Door Outside Handle Procedure Pull the outside handle rearward to release it from the inside handle housing. Ensure that the front door outside handle gasket stays in place.
