Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the window in the full up position.
  2. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .
  3. Remove the water deflector.

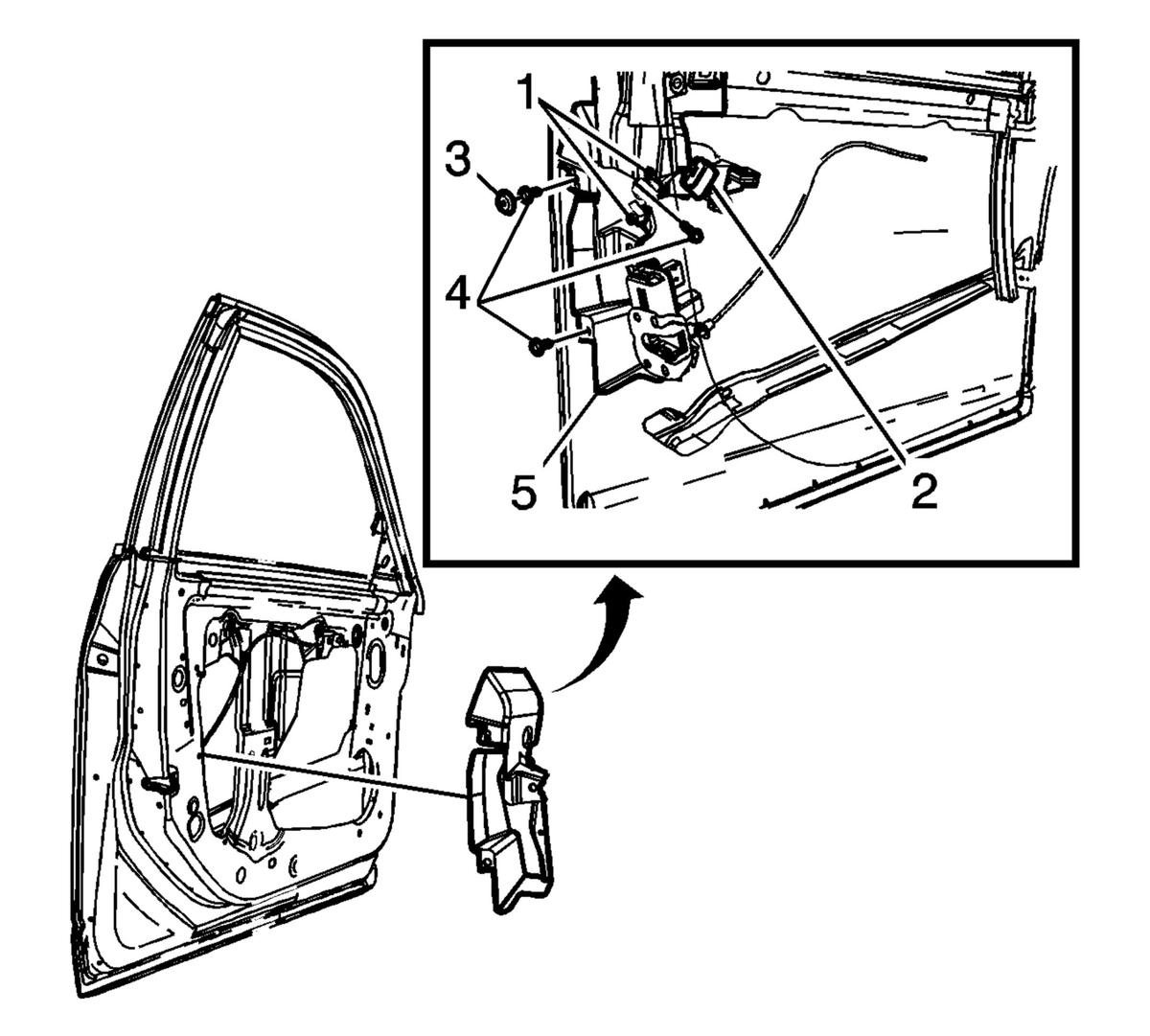

    4. Fig 1: View of Door and Wiring Harness Assembly
    GM1920241Courtesy of GENERAL MOTORS CORP.
  4. Remove the wiring harness from the retainers (1).
  5. Disconnect the electrical connector (2).
  6. Remove the screw cover (3).
  7. Remove the screws (4) from the outer edge of the door and from the inside.
  8. Remove the front side door lock cover (5) from inside the door.
