Rear Compartment Lid Strut Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

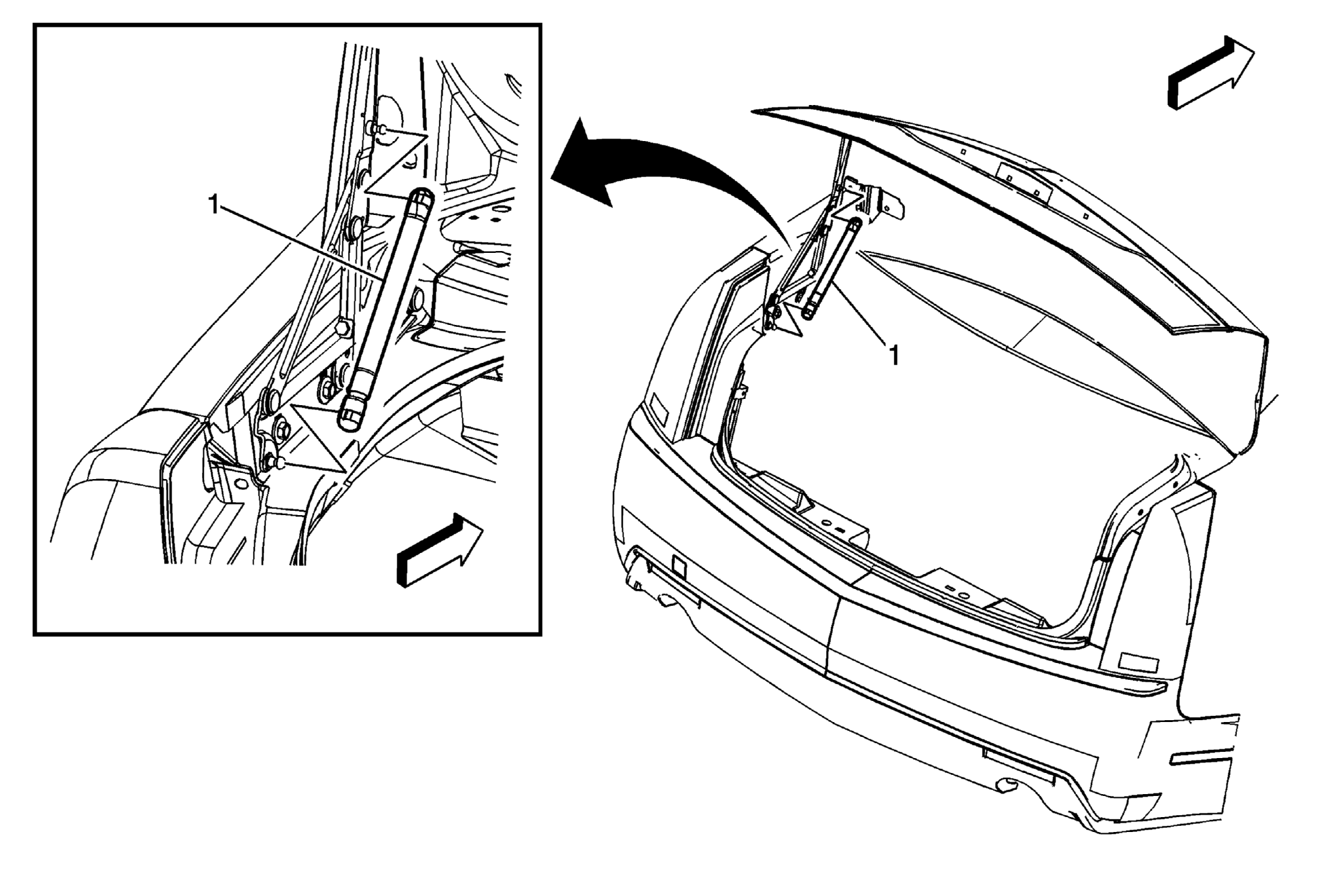

Fig 1: Rear Compartment Lid Strut Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Strut (Qty: 2) Procedure Release the locking tabs on the strut. Ensure the clip is fully seated when the rod is installed. If the clip cannot be fully seated a new rod should be installed.

Callout

Component Name

CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Rear Compartment Lid Strut (Qty: 2)

Procedure

Release the locking tabs on the strut.
Ensure the clip is fully seated when the rod is installed. If the clip cannot be fully seated a new rod should be installed.
