Hood Primary and Secondary Latch Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

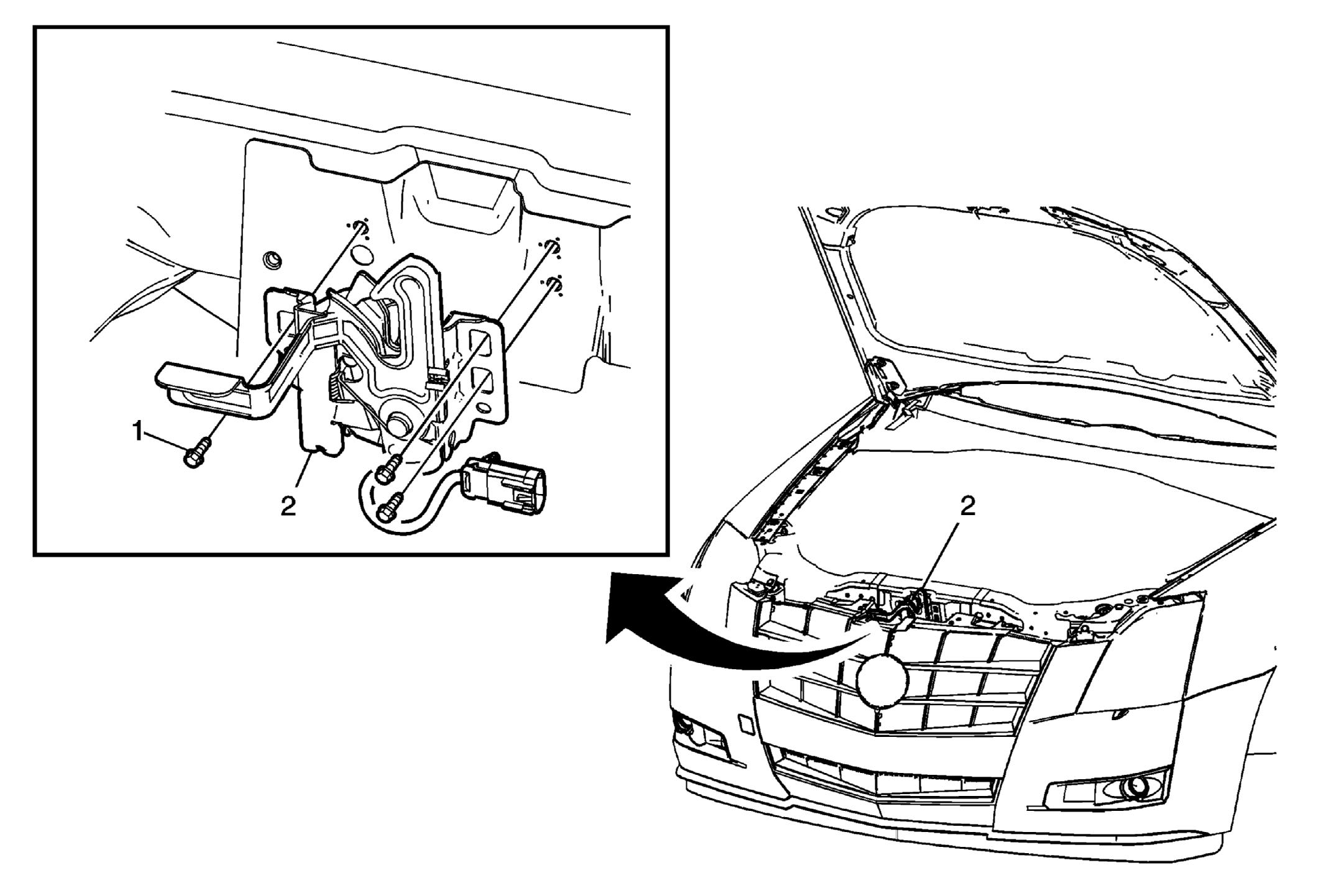

Fig 1: Hood Primary and Secondary Latch Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front compartment sight shields. Refer to Front Compartment Sight Shields Replacement .
1	Hood Primary and Secondary Latch Bolt (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Hood Primary and Secondary Latch Procedure Disconnect the remote start electrical connector, if equipped. Disconnect the release cable from the hood latch by squeezing the cable retainer.

Callout

Component Name

Preliminary Procedure:
Remove the front compartment sight shields. Refer to Front Compartment Sight Shields Replacement .

Hood Primary and Secondary Latch Bolt (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Hood Primary and Secondary Latch

Procedure

Disconnect the remote start electrical connector, if equipped.
Disconnect the release cable from the hood latch by squeezing the cable retainer.
