Hood Hinge Replacement (Standard)
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

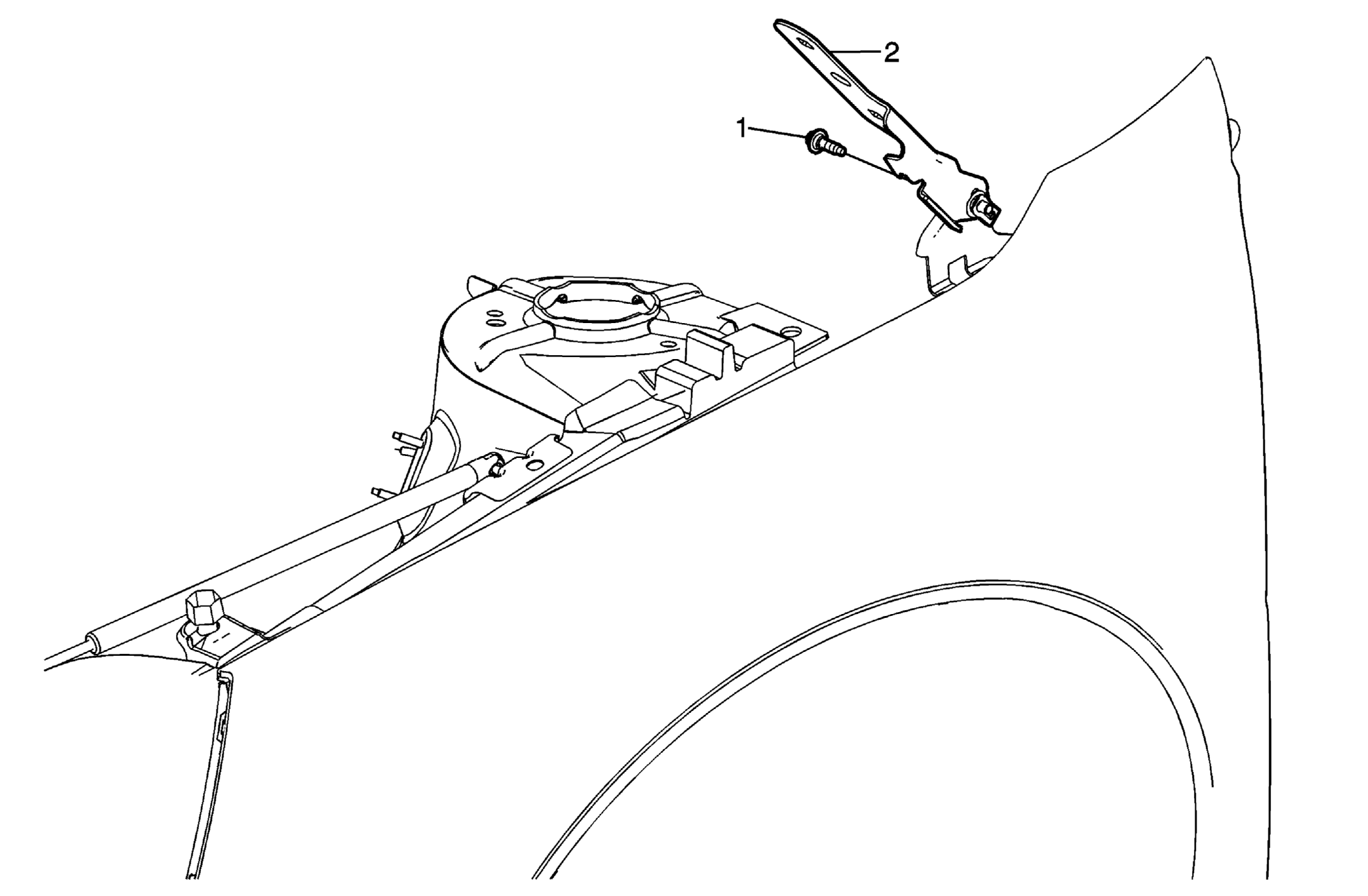

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the hood. Refer to Hood Replacement . |
|
| 1 | Hood Hinge Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) |
| 2 | Hood Hinge |
