Front Side Door Upper Auxiliary Weatherstrip Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

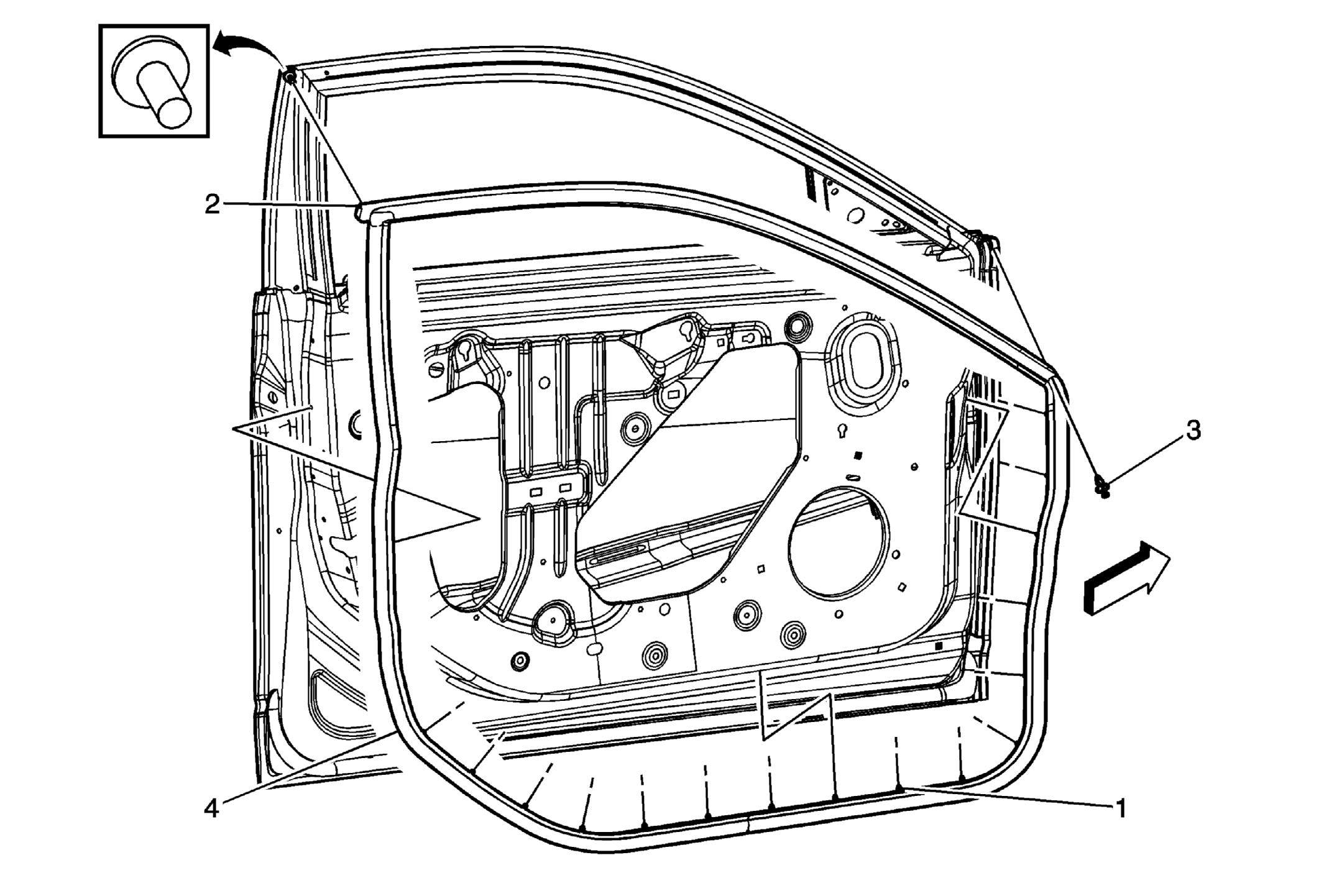

Fig 1: Front Side Door Upper Auxiliary Weatherstrip Replacement
GM1959246Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Side Door Upper Auxiliary Weatherstrip Retainer (Qty :16)
Procedure:
Remove all retainers from around the lower inner door before inserting the new weatherstrip.
2 Front Side Door Upper Auxiliary Weatherstrip Screw
Procedure:
Remove the screw from the upper left corner of the door frame.
3 Front Side Door Upper Auxiliary Weatherstrip

Procedure

  1. Remove the auxiliary weatherstrip from the upper door frame.
  2. Ensure that the auxiliary weatherstrip is fully seated in the upper door frame.
  3. Verify proper window operation.
