Front Side Door Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

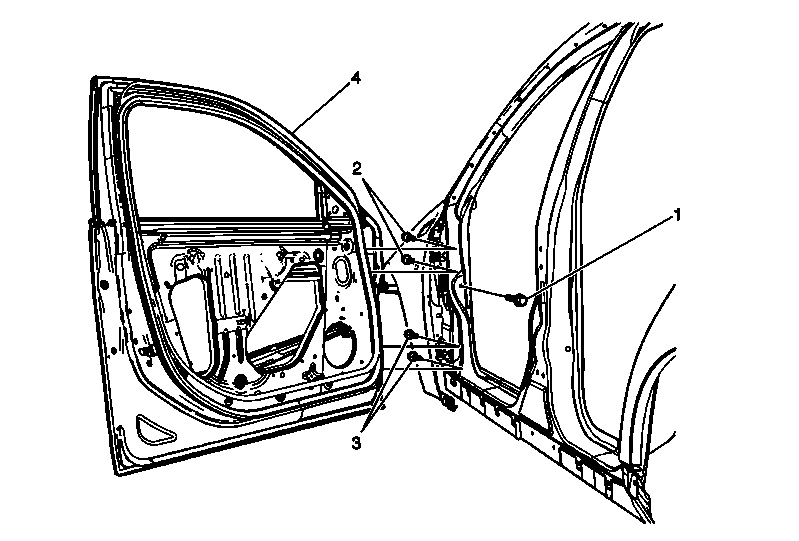

Fig 1: Front Side Door Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Side Door Check Link Bolt NOTE: Refer to Fastener Notice . Procedure Support the door before removing the hinge bolts. Disconnect the door electrical connector. Tighten: 10 N.m (89 lb in)
2	Front Side Door Upper Hinge Bolt (Qty: 2) Tighten: 25 N.m (18 lb ft)
3	Front Side Door Lower Hinge (Qty: 2) Tighten: 25 N.m (18 lb ft)
4	Front Side Door Assembly Tip: When replacing the door it is necessary to transfer all of the internal components.
