Clutch Pedal Position Switch Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

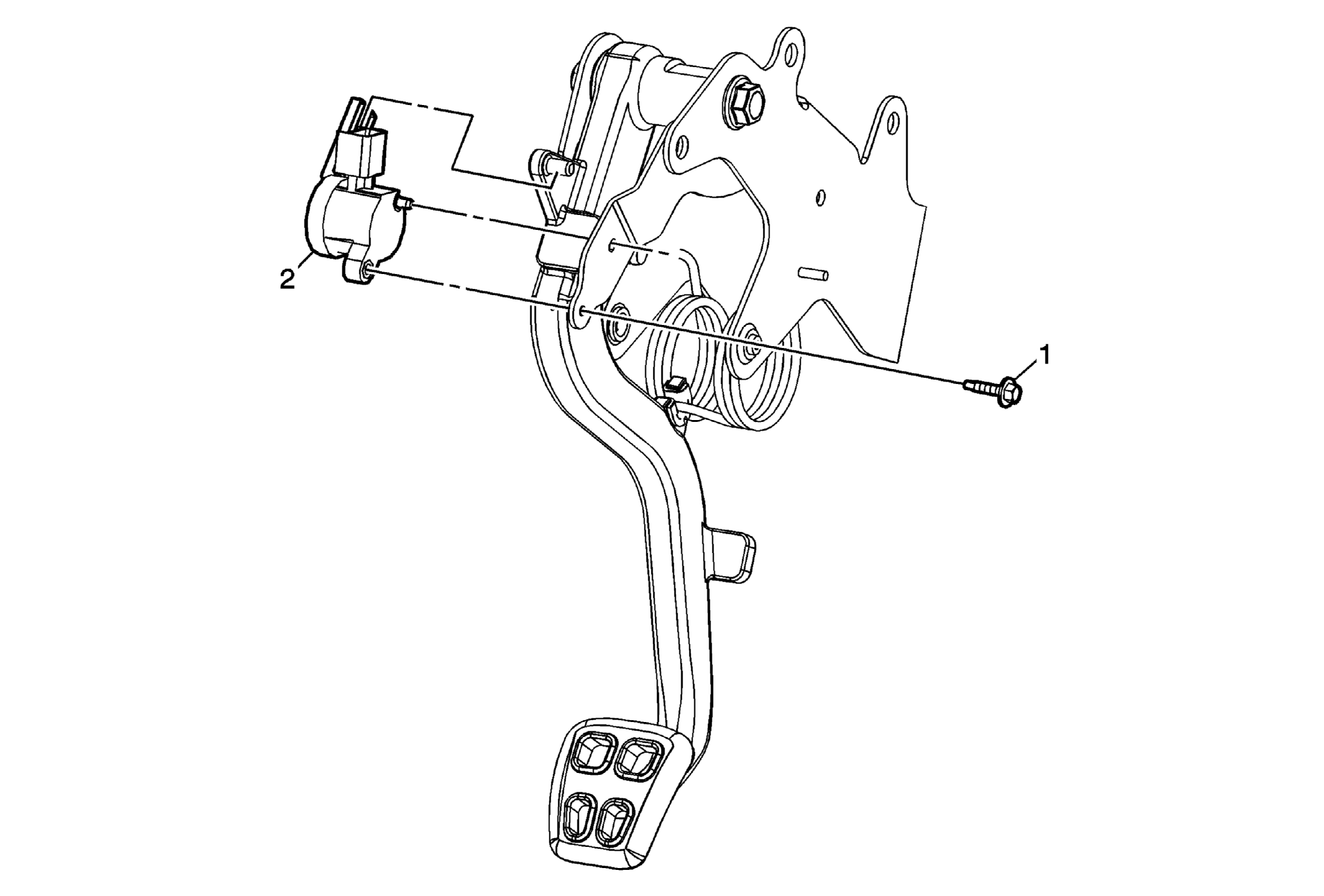

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disconnect the clutch pedal position switch electrical connector. |
|
| 1 | Clutch Pedal Position Switch Bolt
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Clutch Pedal Position Switch |
