Installation Procedure
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

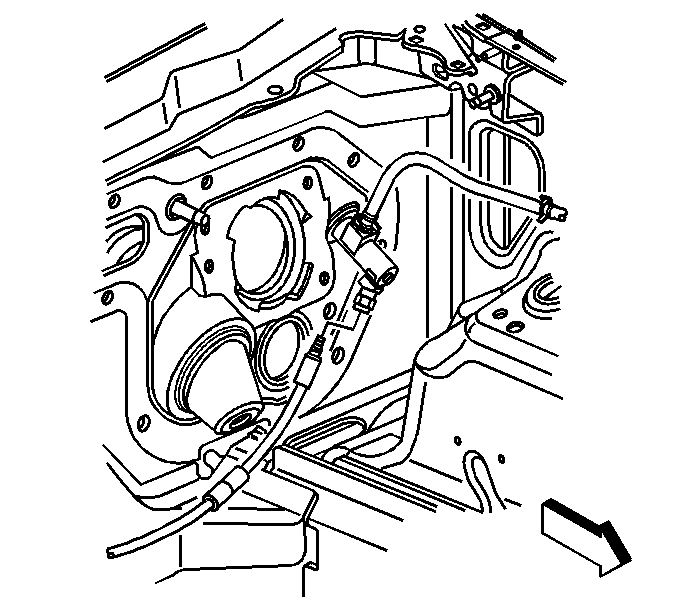

- Connect the clutch hydraulic hose. Refer to Hydraulic Clutch Hose/Pipe Replacement .
- With the clutch fluid reservoir connection at 2 o'clock position. Insert the clutch master cylinder (2) into the cowl.
- Align the keys of the clutch master cylinder housing with the tabs on the clutch pedal bracket.
- Rotate the clutch master cylinder (2) counter clockwise approximately 1/8 turn until fully seated. The clutch fluid reservoir hose connection will be at vertical 12 o'clock position when the clutch master cylinder is properly installed.
- Install the vacuum brake booster. Refer to Power Vacuum Brake Booster Replacement .

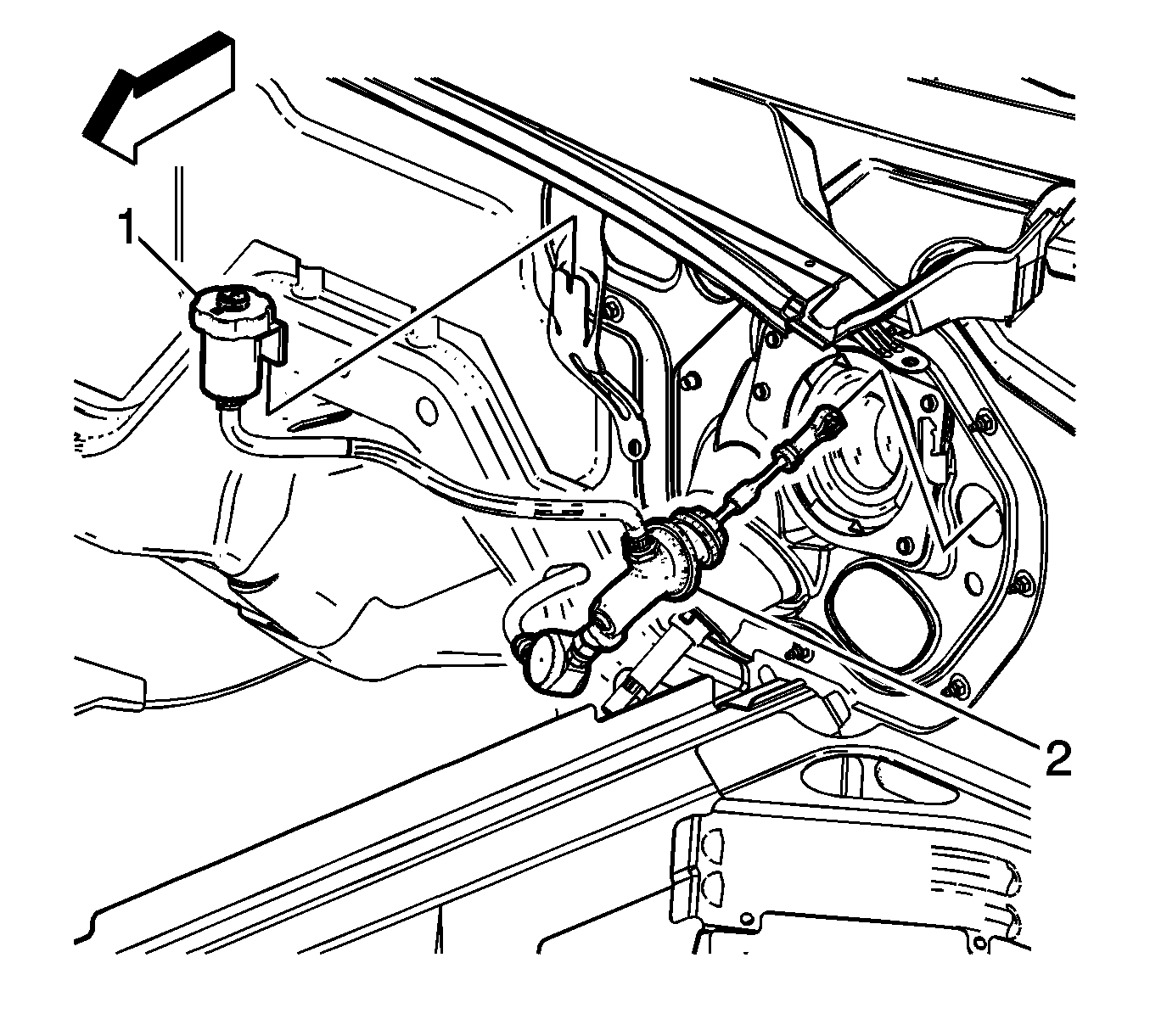

- Install the clutch fluid reservoir (1) to the cowl.

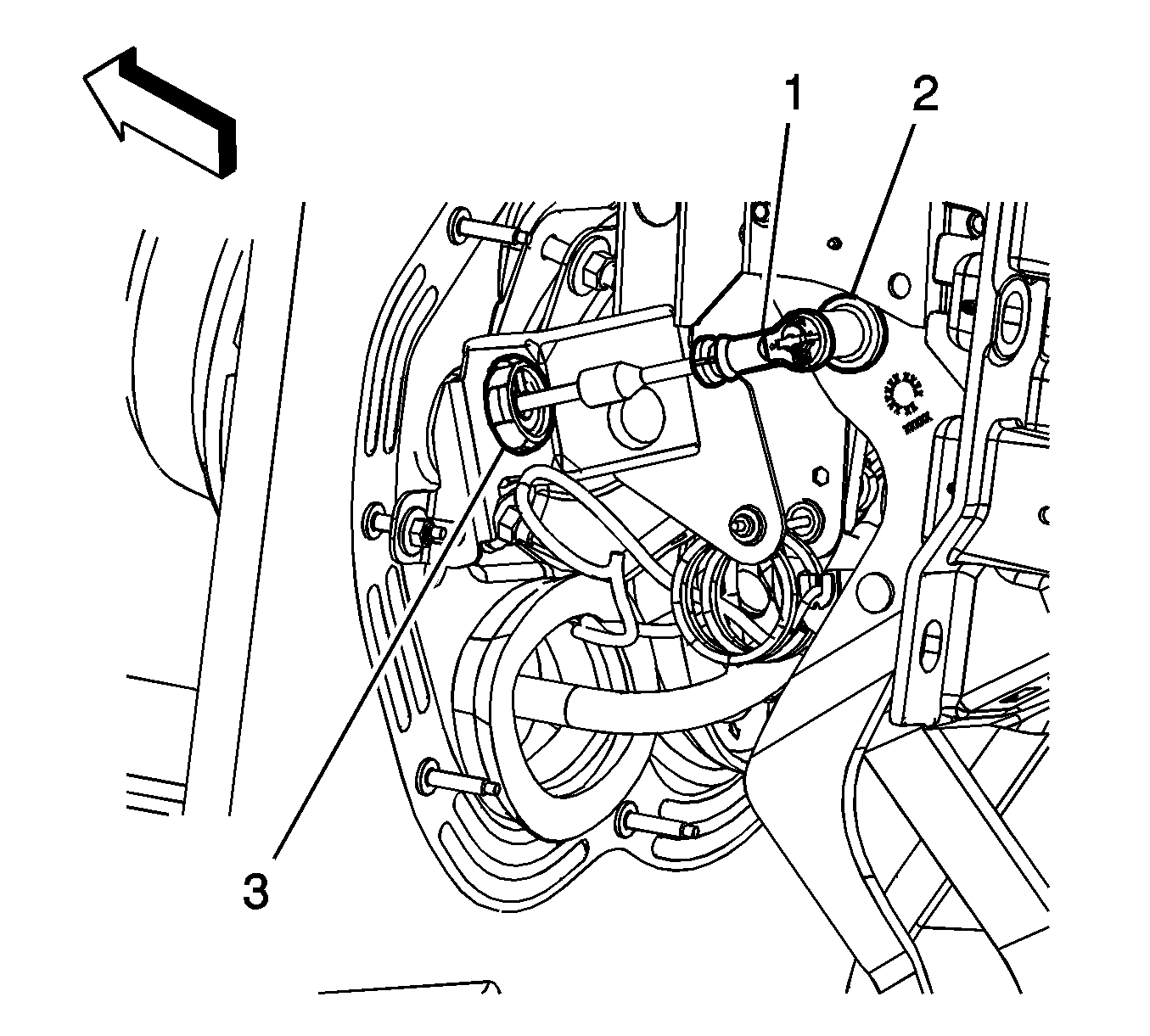

- Position the clutch master cylinder push rod (1) to the clutch pedal pin (2).
- Push the clutch master cylinder push rod (1 onto the clutch pedal pin (2) to secure.
- Check for proper clutch pedal movement and operation.
- Install the driver side instrument panel insulator. Refer to Instrument Panel Insulator Replacement - Left Side .
- Bleed the clutch hydraulic system. Refer to Hydraulic Clutch Bleeding .
