Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

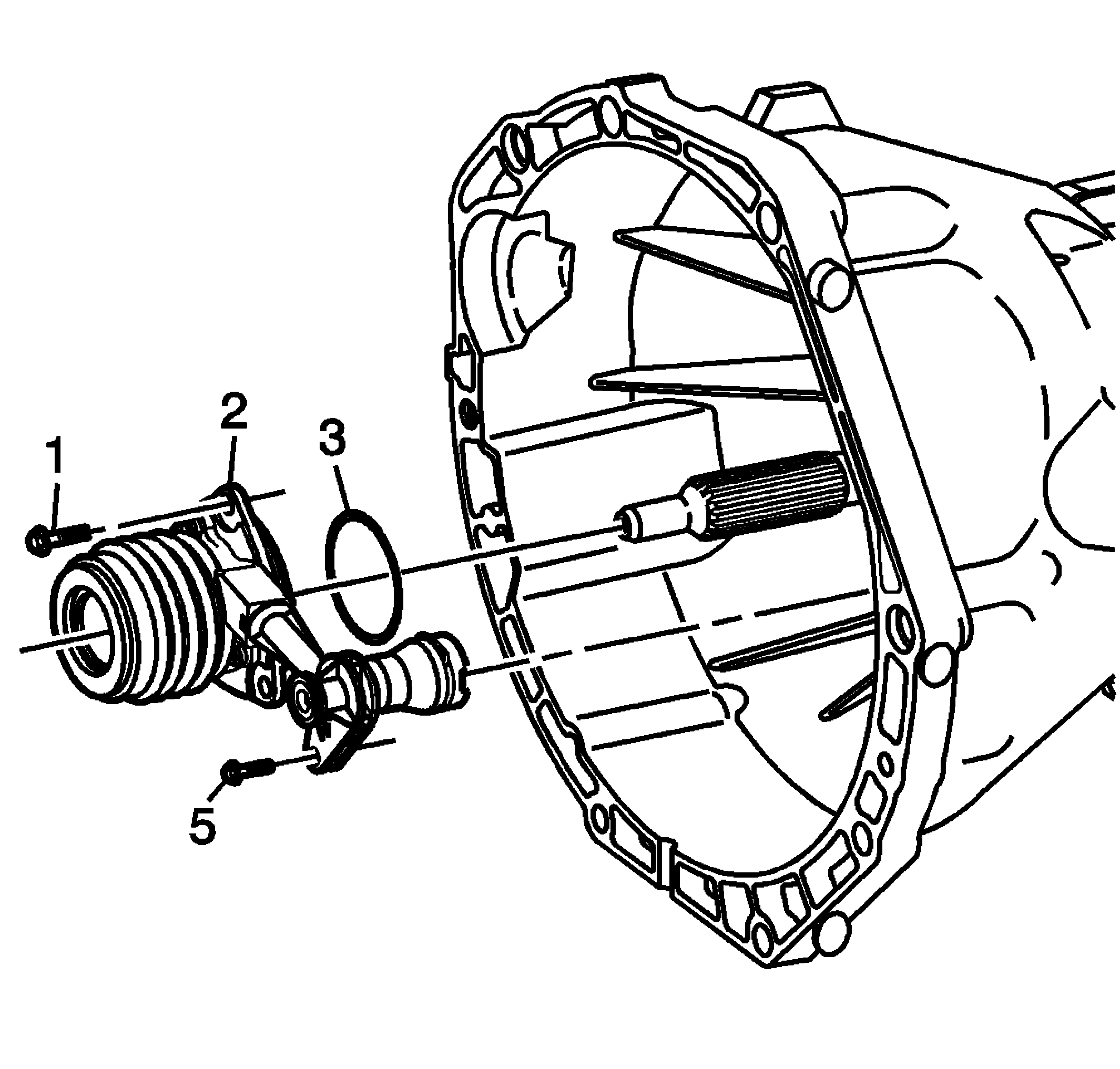

Fig 1: View of Clutch Concentric Actuator Cylinder Assembly

Courtesy of GENERAL MOTORS CORP.

Install the O-ring (3).
Install the concentric actuator cylinder (2).

NOTE: Refer to Fastener Notice .

Install the 3 concentric actuator cylinder bolts (1) and the quick connect bolt (5).
Tighten:
- Tighten the 3 concentric actuator cylinder bolts to 20 N.m (15 lb ft).
- Tighten the quick connect bolt to 10 N.m (89 lb in).
Install the transmission. Refer to Transmission Replacement .
