Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: When the clutch driven plate requires replacement, the engine flywheel must also be replaced along with the clutch pressure plate as an assembly.

Fig 1: Identifying Drive Plate

Courtesy of GENERAL MOTORS CORP.

The splined portion of the driven plate protrudes out of the plate more on one side than the other. The side that protrudes out more is the transmission side. The arrow in the graphic indicates the front of the vehicle, or flywheel side of the driven plate.

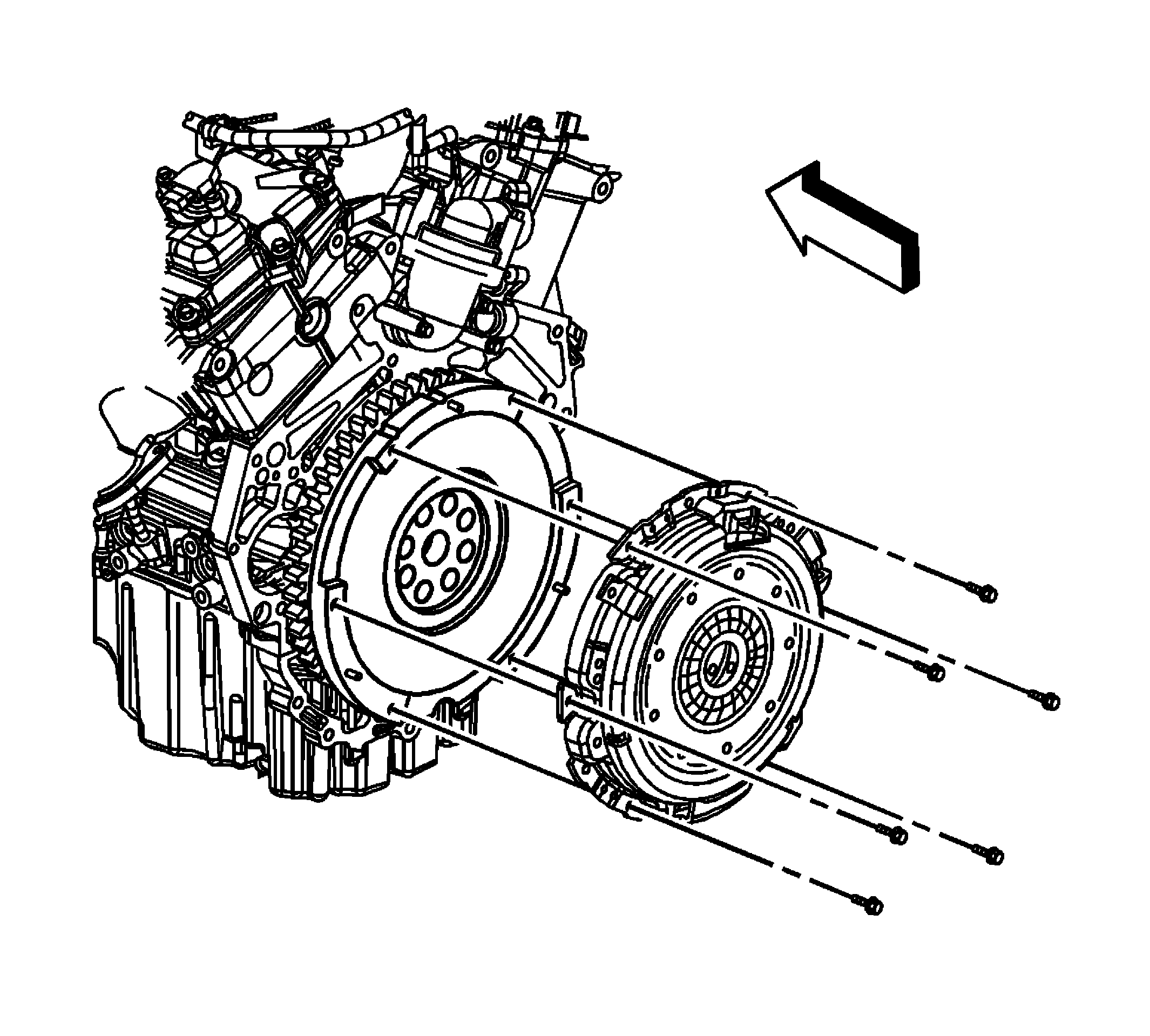

Fig 2: View of Clutch Pressure Plate Assembly

Courtesy of GENERAL MOTORS CORP.

Install the clutch pressure plate and driven plate to the dowel pins on the flywheel.
Install the clutch pressure plate bolts finger tight.
Using a commercially available universal clutch alignment tool, align the clutch driven plate to the clutch pilot bearing.

Fig 3: Clutch Pressure Plate Bolts Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Tighten the clutch pressure plate bolts in the sequence shown, starting with the number one and following in numerical order.
Tighten: Tighten the clutch pressure plate bolts in sequence and evenly over 3 increments with the fourth increment to 28 N.m (21 lb ft).
Install the manual transmission. Refer to Transmission Replacement .
