Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Brake Dust Caution .
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the rear wheel bearing and hub assembly. Refer to Rear Wheel Bearing and Hub Replacement .
  4. Remove the parking brake actuator. Refer to Parking Brake Actuator Replacement .

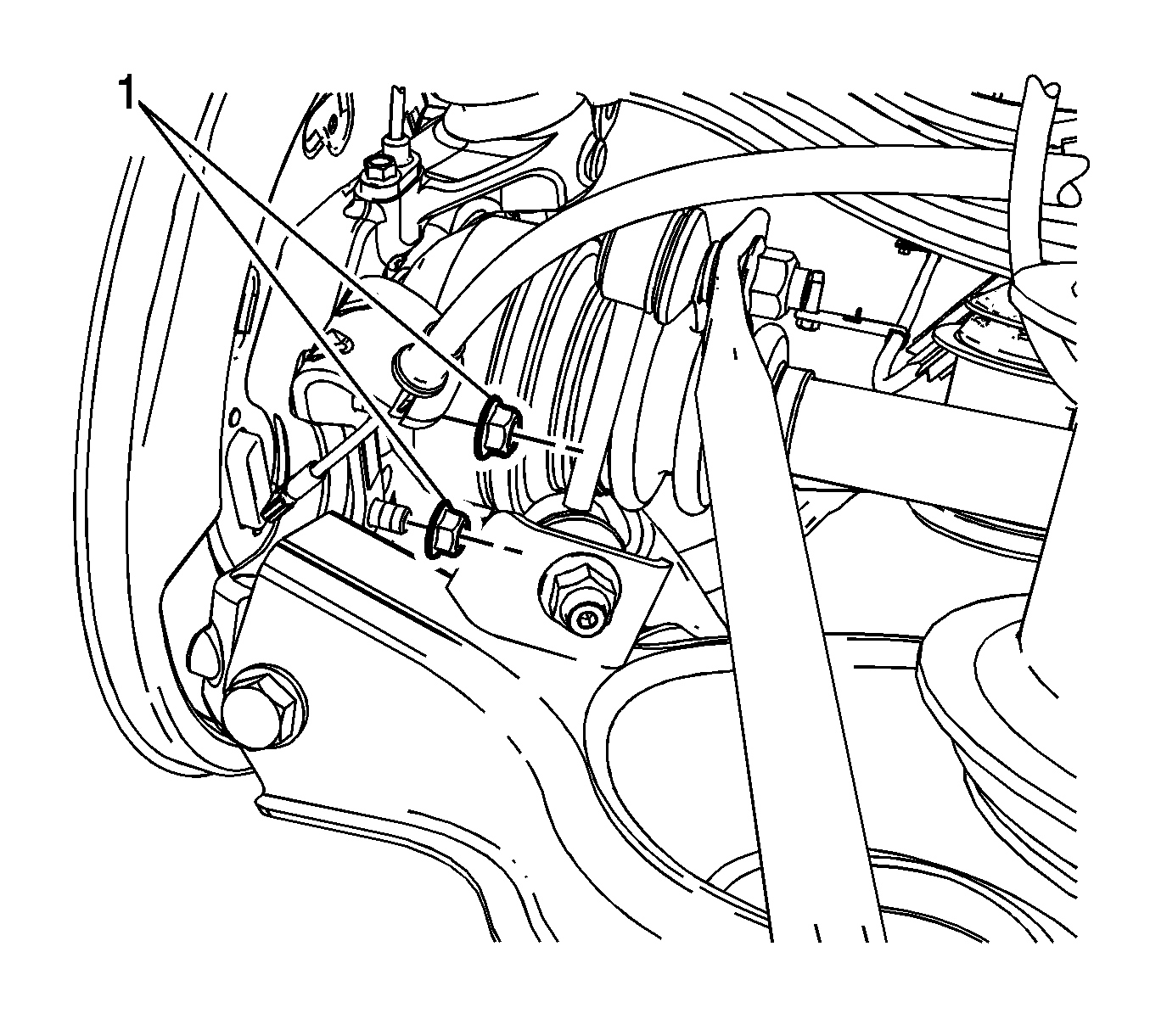

    5. Fig 1: View of Cable Bracket Nuts
    GM1970031Courtesy of GENERAL MOTORS CORP.
  5. Remove the parking brake cable bracket nuts (1).

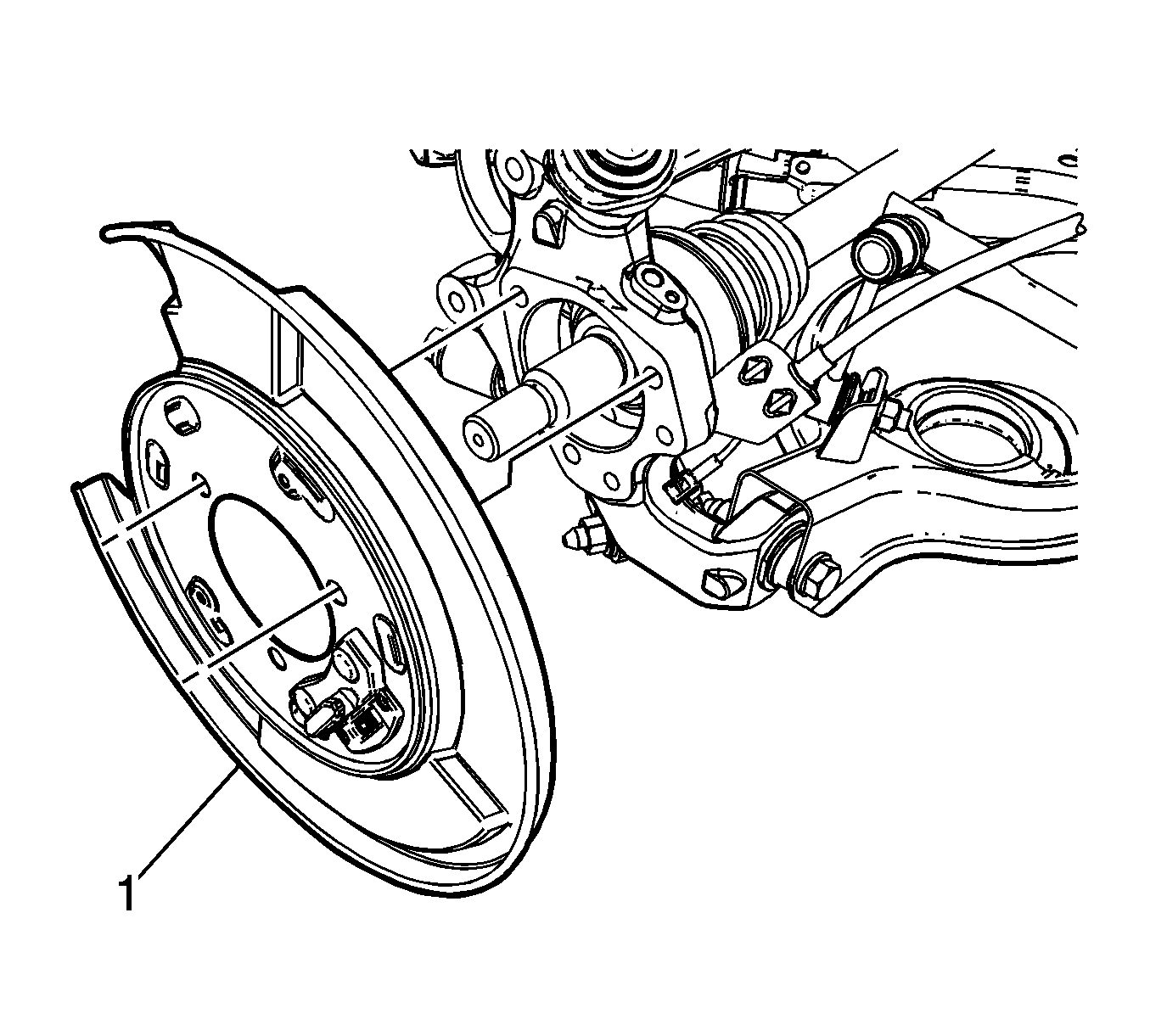

    6. Fig 2: Identifying Brake Backing Plate
    GM1970033Courtesy of GENERAL MOTORS CORP.
  6. Remove the parking brake backing plate (1).
